HIKVISION DS-7204HUHI-K1 Manual

11 ADD ANALOG CAMERAS
T Adding Analog Cameras
1. Connect analog camera(s) to the “Video In” BNC connectors.
T Adding Analog PoC Cameras
PoC cameras do not require camera power to produce an image on the DVR as they are powered
over-the-coax upon connection.
T Enabling Analog Cameras
2. Analog cameras are enabled by default; no further action is required.

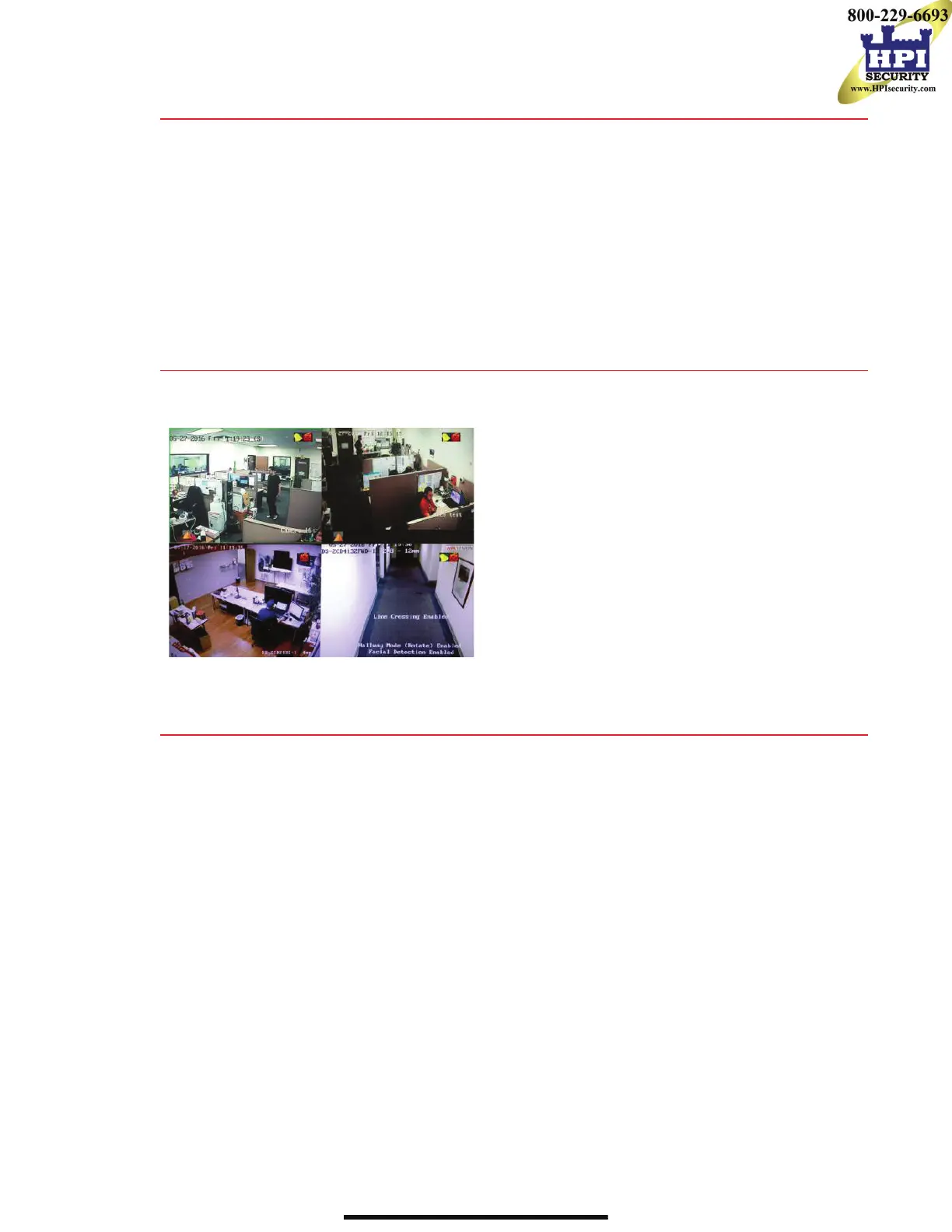

12 VIEW LIVE VIDEO
Live View displays real-time video.
13 SET UP RECORDING
The system defaults to record video continuously at 8 fps, or at 15 fps when motion is detected.
T Recording Schedule
Default is to record continuously every day. Do the following to change the recording schedule:
1. Go to MENU > RECORDING CONFIGURATION > SCHEDULE.
2. Choose CONTINUOUS or EVENT/(MOTION DETECTION) under the Type pull-down menu.
3. Use cursor to select (days will turn blue [continuous] or yellow [event/motion detect]) or deselect
(days will turn gray [off]) the calendar days you wish to record.
4. Apply time settings as desired.
5. Press APPLY.
Icons in the upper
rig
ht of screen show
each
camera’s record and alarm status.
• Alarm (video loss, tampering, motion detection,
sensor alarm, or VCA alarm)
• Record (manual record, continuous record, motion
detection, alarm, or VCA triggered record)
• Event/Exception (event and exception information
appears at lower-left corner of screen)

HIKVISION DS-7204HUHI-K1 Specifications

General

Video Input	4 channels
Video Output	1 HDMI, 1 VGA
Video Bitrate	32 Kbps to 6 Mbps
Audio Bitrate	64 Kbps
Dual Stream	Yes
Stream Type	Video, Video & Audio
Synchronous Playback	4-ch
SATA	1 SATA interface
HDD Capacity	Up to 10 TB capacity for each disk
Network Interface	1, RJ45 10M/100M self-adaptive Ethernet interface
Power Supply	12 VDC
Operating Humidity	10% to 90%
Max Resolution	1080p
Video Compression	H.264+
Audio Output	1-ch RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ)
HDMI Output	1
VGA Output	1
Recording Resolution	1080p
Playback Resolution	1080p
Network Protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS
USB Interface	2 USB 2.0
Operating Temperature	-10 °C to +55 °C
