13 SET UP RECORDING (continued)

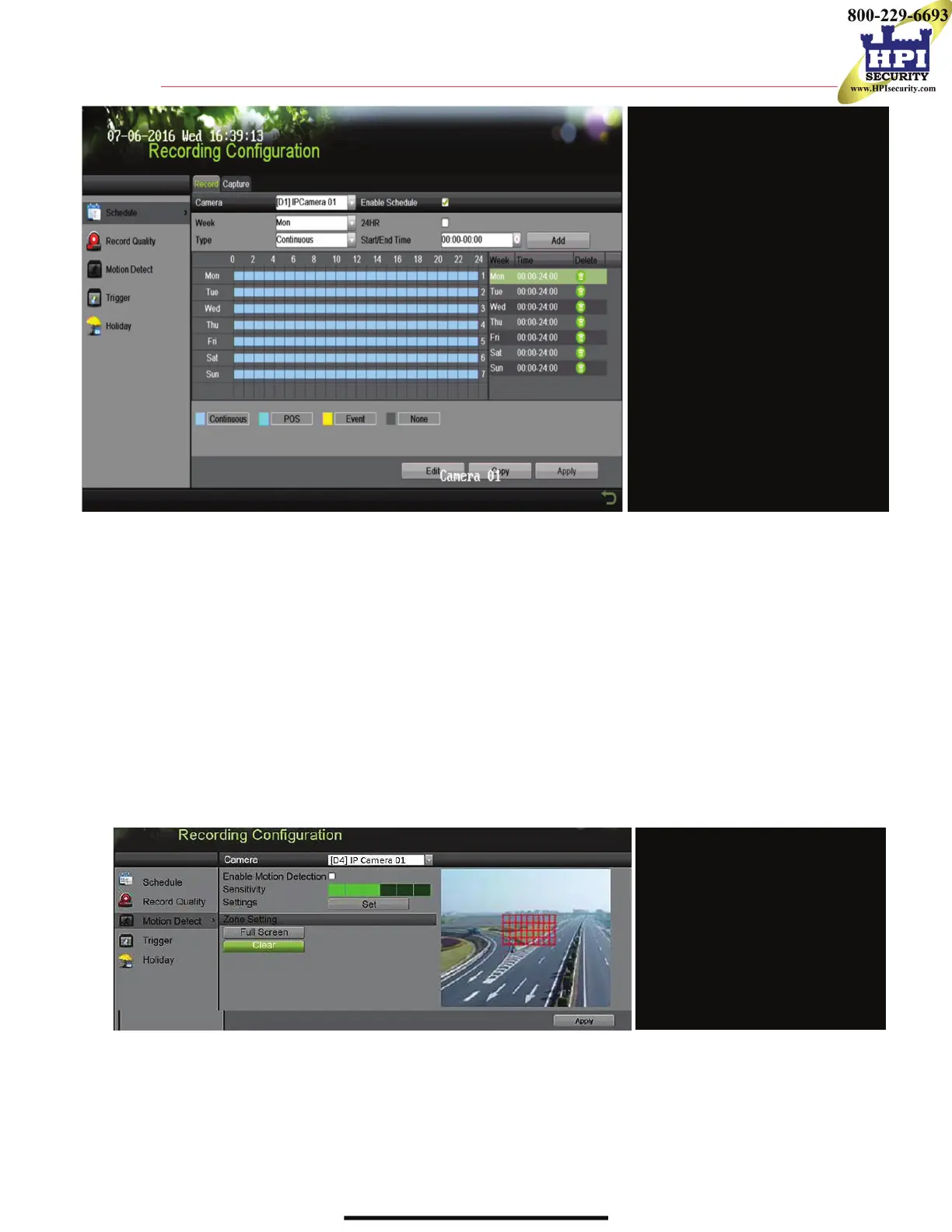

T Motion Detection Areas
To define the image areas that Motion Detection will monitor for each camera, do the following:
1. Go to MENU > RECORDING CONFIGURATION > MOTION DETECT.
2. Use Camera pull-down menu to select camera to configure.
3. Check the Enable Motion Detection checkbox to enable motion detection.
4. Use the Sensitivity boxes to select how responsive the detection should be (the more green
boxes lit, the greater the sensitivity).
5. Drag a grid(s) over the area(s) on the image that will be sensitive to motion.
6. Click Settings Set to configure Arming Schedule (when detection is enabled) and Linkage
Actions (what action(s) to take when motion is detected).
.
CAMERA
(Select)
3ENABLE MOTION DETECTION
Click to enable/disable
$MOTION GRID (Draw motion area)
/SENSITIVITY
Set green squares for sensitivity

1 SETTINGS/SET
Arming schedule & linkage actions
4APPLY
.

3

$

/
1

.
TYPE
Motion or Continuous (default)
3 COLOR
Shows Recording Schedule days:
•
Blue=Continuous
• Yellow=Event (motion/alarm)
• Grey=None
$ TIMES
Customize schedule times (ignore for
“motion only” recording)
/ ADD
Press to add time settings to
schedule
1 ENABLE SCHEDULE
Camera will not record unless
checked
3
.

1

$
/

4


HIKVISION DS-7204HUHI-K1 Specifications

General

Video Input	4 channels
Video Output	1 HDMI, 1 VGA
Video Bitrate	32 Kbps to 6 Mbps
Audio Bitrate	64 Kbps
Dual Stream	Yes
Stream Type	Video, Video & Audio
Synchronous Playback	4-ch
SATA	1 SATA interface
HDD Capacity	Up to 10 TB capacity for each disk
Network Interface	1, RJ45 10M/100M self-adaptive Ethernet interface
Power Supply	12 VDC
Operating Humidity	10% to 90%
Max Resolution	1080p
Video Compression	H.264+
Audio Output	1-ch RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ)
HDMI Output	1
VGA Output	1
Recording Resolution	1080p
Playback Resolution	1080p
Network Protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS
USB Interface	2 USB 2.0
Operating Temperature	-10 °C to +55 °C
