Power Supply
12 VDC power supply.
9
GND
Ground
Rear Panel 4:

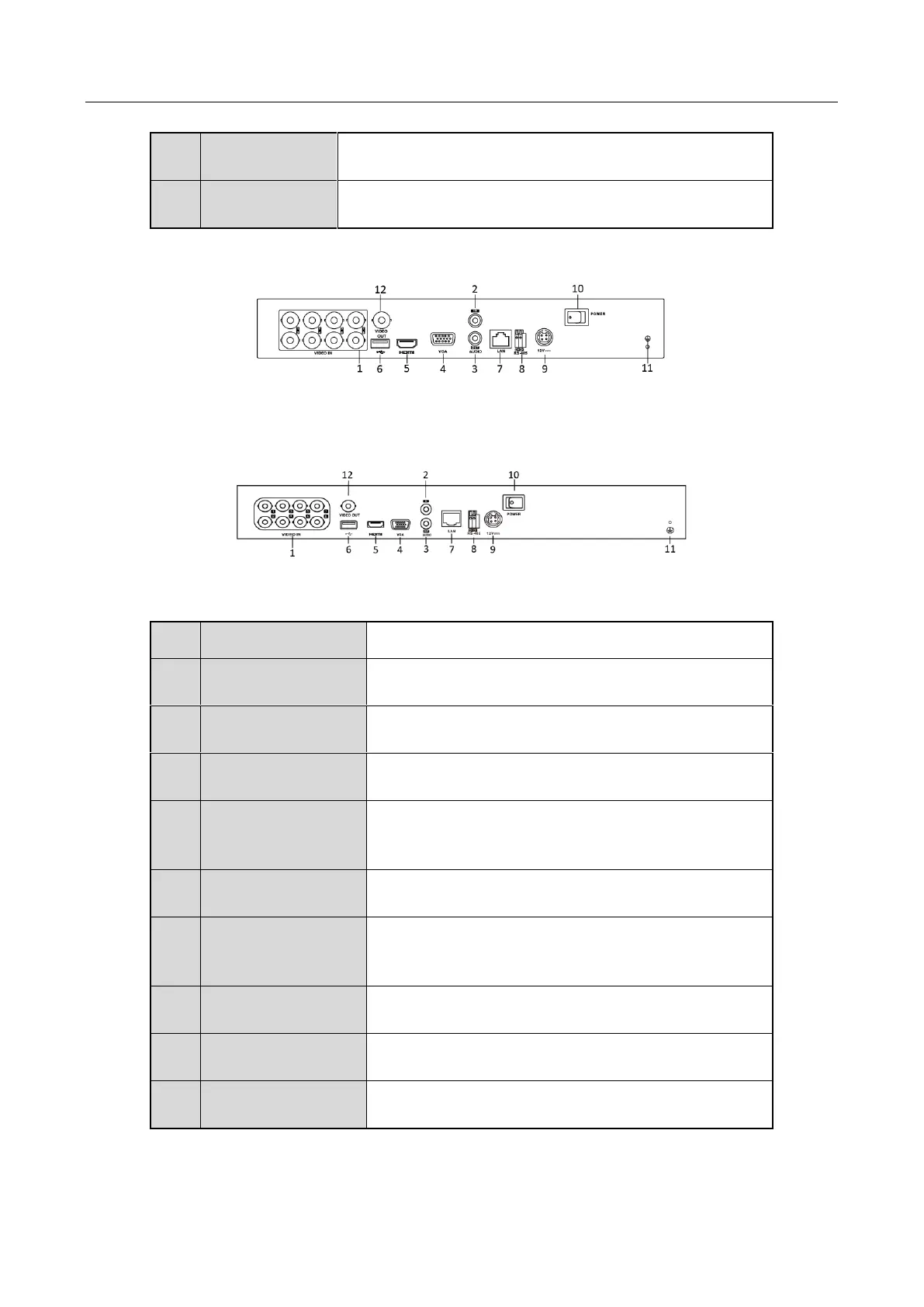

Figure 1-14 Rear Panel of DS-7200HQHI-F1/N
Rear Panel 5:
Figure 1-15 Rear Panel of DS-7200HQHI-F2/N
Table 1-12 Description of Rear Panel
No.
Item
Description
1
VIDEO IN
BNC interface for HDTVI and analog video input.
2
AUDIO IN
RCA connector
3
AUDIO OUT
RCA connector
4
VGA
DB15 connector for VGA output. Display local
video output and menu.
5
HDMI
HDMI video output connector.
6
USB Port
Universal Serial Bus (USB) port for additional
devices.
7
Network Interface
Connector for network
8
RS-485 Interface
Connector for RS-485 devices.
9
Power Supply
12 VDC power supply.
