Digital Video Recorder Quick Start Guide
11

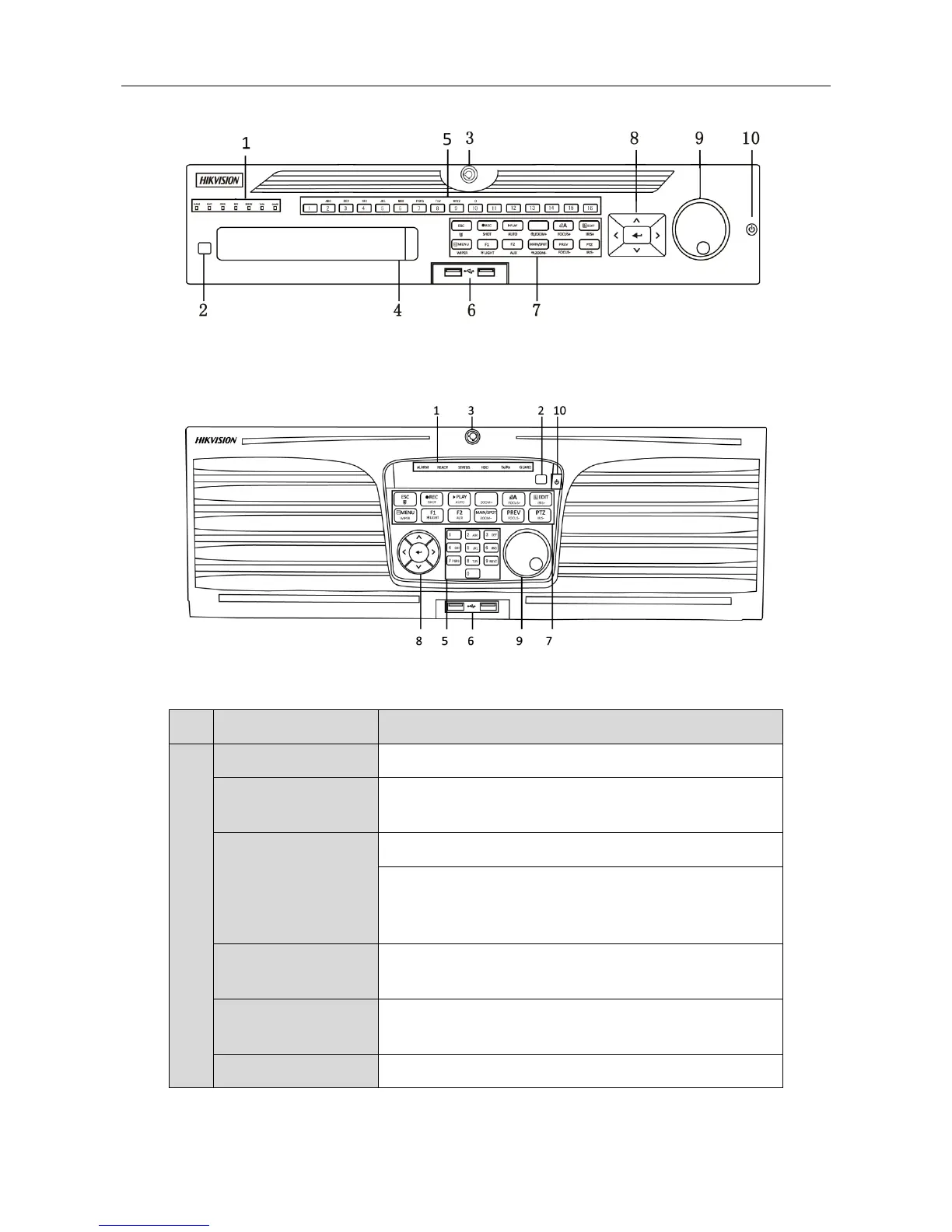

Figure 1-4 Front Panel 4
Front Panel 5
Figure 1-5 Front Panel 5
Table 1-4 Description of Front Panel 4 and 5
No.
Name
Function Description
1
ALARM
Turns red when a sensor alarm is detected.
READY
Turns green, indicating that the DVR is functioning
properly.
STATUS
Turns blue when device is controlled by an IR remote.
Turns red when controlled by a keyboard and purple
when IR remote and keyboard is used at the same
time.
HDD
Flickers in red when data is being read from or written
to HDD.
MODEM
Flickers in green when network connection is
functioning properly.
Tx/Rx
Turns blue when the device is in armed status; at this
