HIKVISION DS-7216HQHI-F1/N Quick Start Guide

Digital Video Recorder Quick Start Guide
17
No.
Item
Function Description
11
Power Switch
Switch for turning on/off the device.
12
GND
Ground
13
LINE IN
BNC connector for audio input.
14
eSATA
Connects external SATA HDD, CD/DVD-RW.
15
RS-232 Interface
Connector for RS-232 devices.

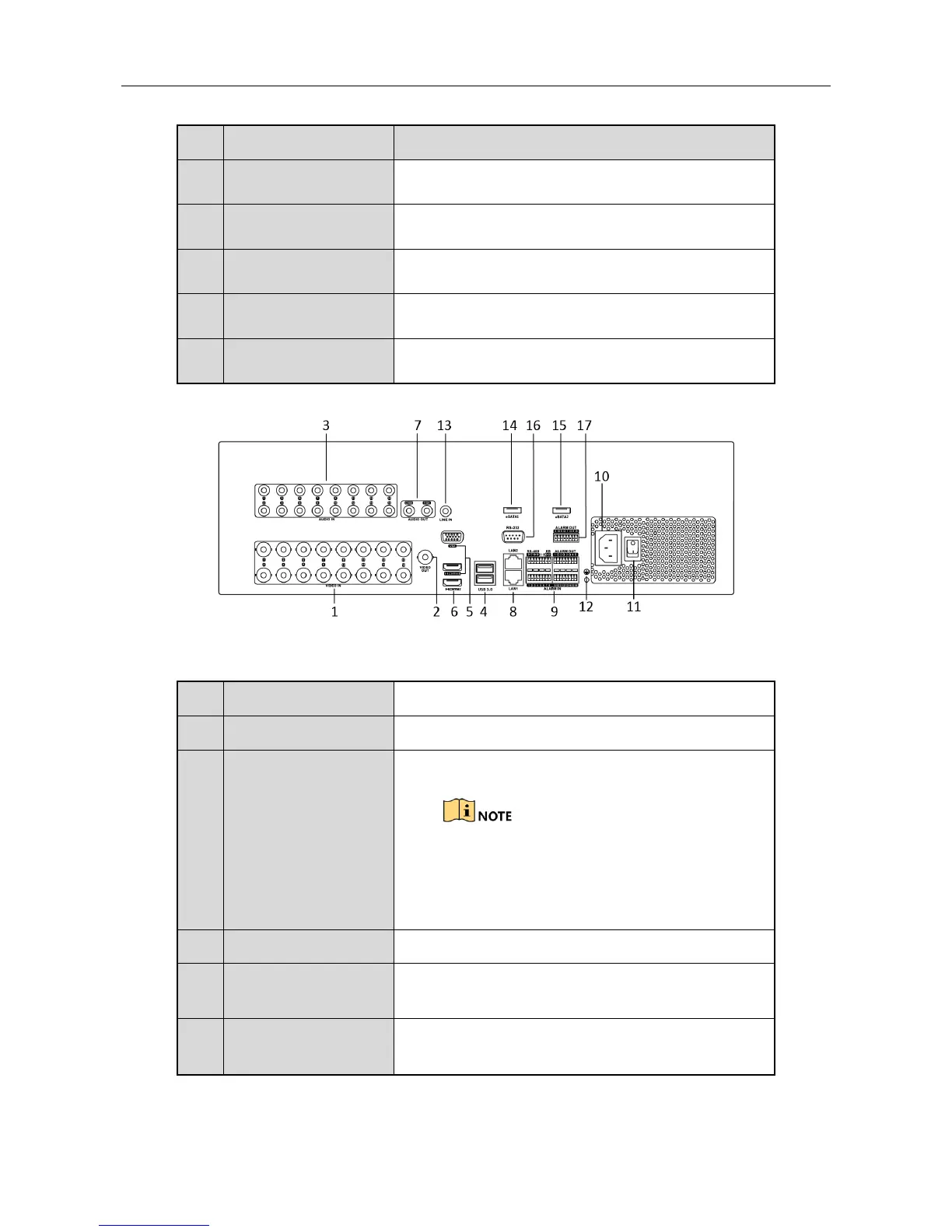

 Rear Panel 3
Figure 1-8 Rear Panel 3
Table 1-7 Description of Rear Panel 3
No.
Item
Description
1
VIDEO IN
BNC interface for TVI and analog video input.
2
VIDEO OUT
BNC connector for video output.
CVBS output is not provided by DS-7100/7200HGHI-E1,
DS-7200HGHI-E2, DS-7100/7200HGHI-F1,
DS-7200HGHI-F2, DS-7100HQHI-F1/N, and
DS-7100HGHI-F1/N series DVR.
3
AUDIO IN
BNC connector
4
USB Port
Universal Serial Bus (USB) port for additional
devices.
5
HDMI1/VGA
Simultaneous HDMI1/VGA output. Display local
video output and menu.

HIKVISION DS-7216HQHI-F1/N Specifications

General

Video input channels	16 channels
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Power consumption (typical)	30 W
Voltage	12 V
Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Analog signal format system	NTSC, PAL
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
