HIKVISION DS-7216HQHI-F1/N Quick Start Guide

Digital Video Recorder Quick Start Guide
35

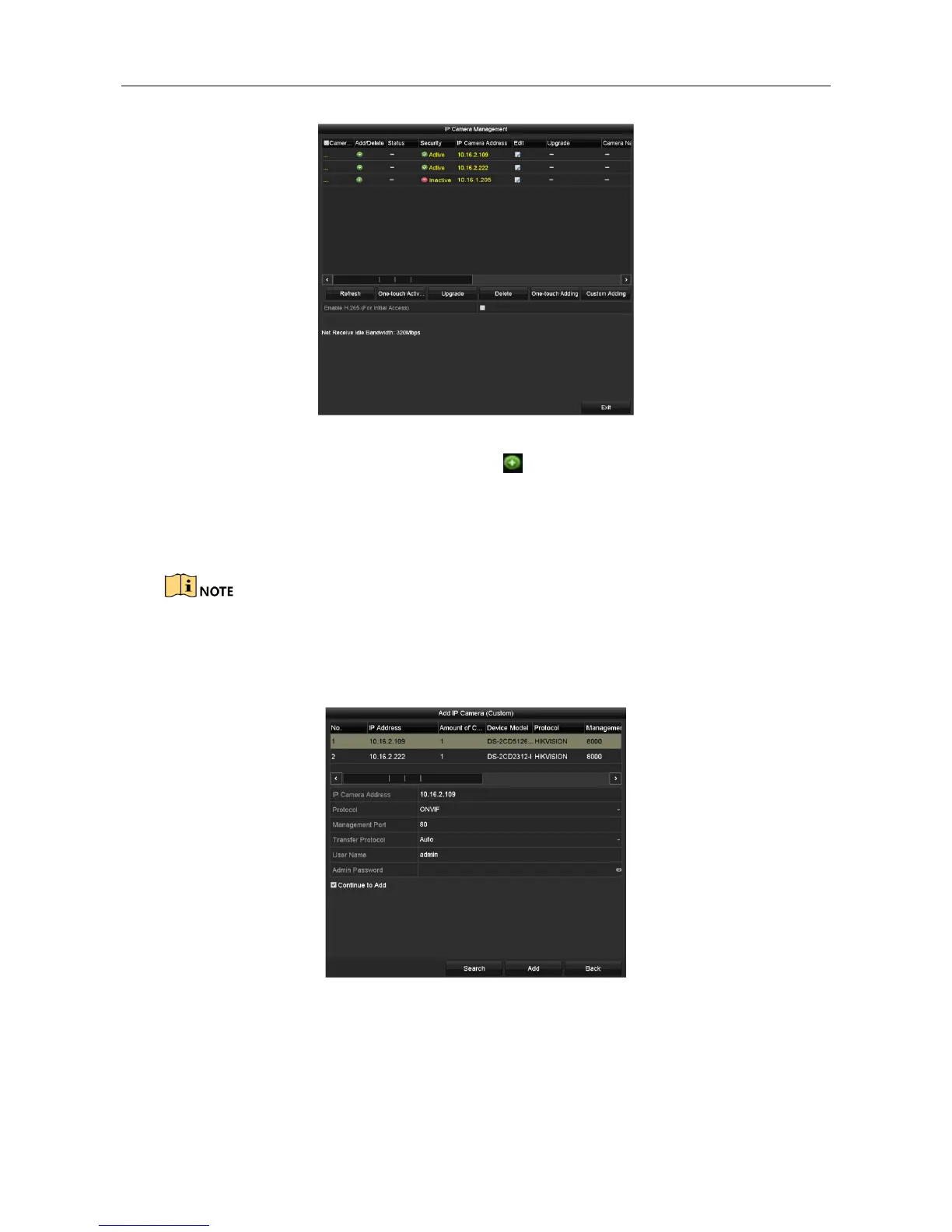

Figure 3-22 Add IP Camera
Step 2 Select the IP camera from the list and click the button to add the camera (with the same
admin password of the DVR’s).
Step 3 (Optional) Check the checkbox of Enable H.265 (For Initial Access) for the connected IP
camera supporting H.265. Then the IP camera will be encoded with H.265.
Enable H.265 option is only applicable to DS-7300/8100/9000HUHI-F/N series DVR.
 OPTION 2:
Step 1 Click the Custom Adding button to pop up the Add IP Camera (Custom) interface.
Figure 3-23 Add IP Camera
Step 2 Select the detected IP camera and click the Add button to add it directly, and you can click
the Search button to refresh the online IP camera manually.
 OPTION 3:

HIKVISION DS-7216HQHI-F1/N Specifications

General

Video input channels	16 channels
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Power consumption (typical)	30 W
Voltage	12 V
Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Analog signal format system	NTSC, PAL
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
