Digital Video Recorder Quick Start Guide
8
Table 1-2 Description of Front Panel 2
Name
Function Description
POWER
Turns yellow when the power switch on the rear panel
is turned on.
STATUS
Flickers red when data is being read from or written
to HDD.
Tx/Rx
Flickers yellow when network connection is
functioning properly.
IR Receiver
Receiver for IR remote
USB Interfaces
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
Front Panel 3

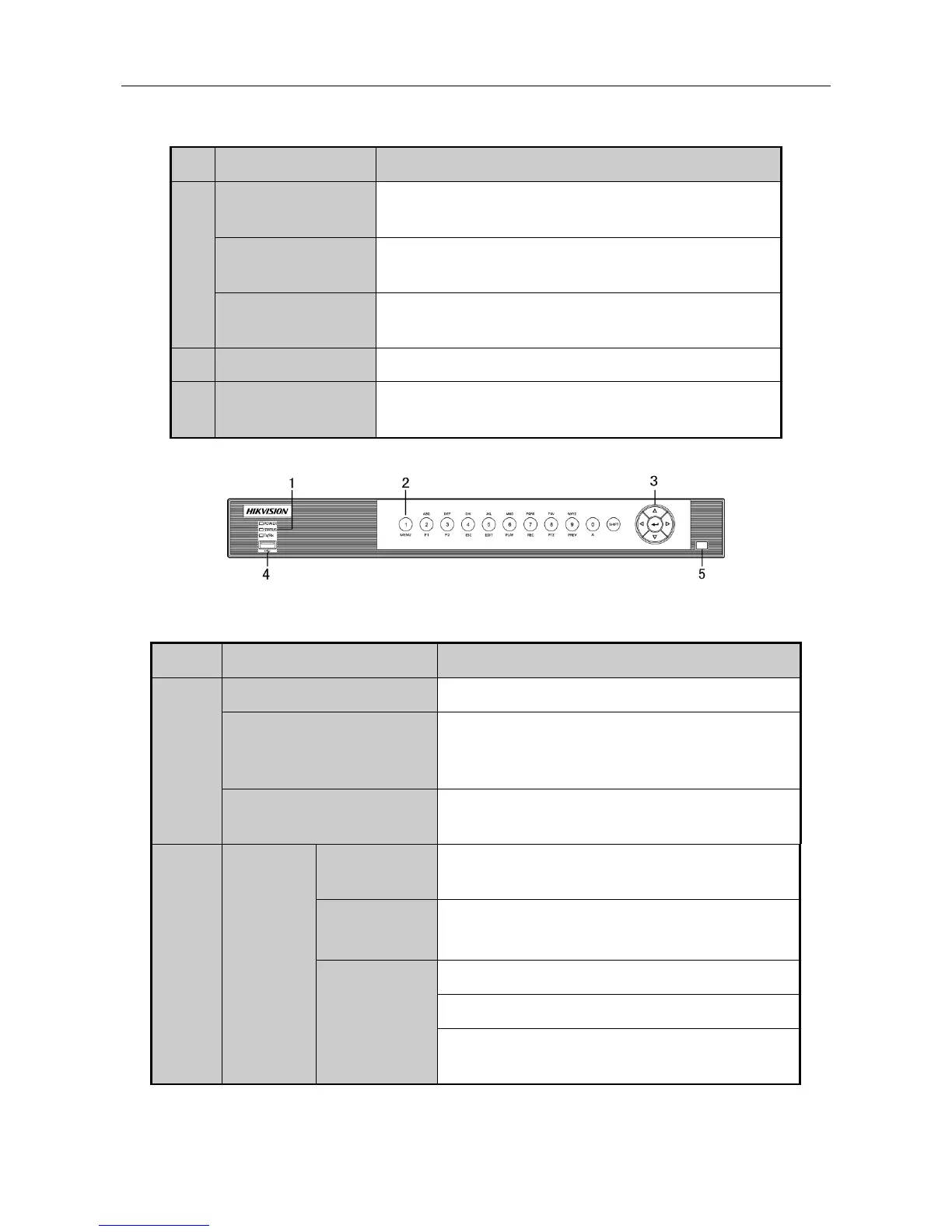

Figure 1-3 Front Panel 3
Table 1-3 Description of Front Panel 3
No.
Name
Function Description
1
POWER
Turns green when the device is running.
STATUS
Flickers red when data is being read from or
written to HDD, and turns green when the SHIFT
function is realized.
Tx/Rx
Flickers green when network connection is
functioning properly.
2
Composite
Keys
SHIFT
Switches between the numeric or letter input
and functions of the composite keys.
1/MENU
Enters numeral “1”;
Accesses the main menu interface.
2/ABC/F1
Enters numeral “2”;
Enters letters “ABC”;
Uses the F1 button to select all items in a list
field;

Other manuals for HIKVISION DS-7216HQHI-F1/N

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7216HQHI-F1/N and is the answer not in the manual?

HIKVISION DS-7216HQHI-F1/N Specifications

General IconGeneral
Video input channels16 channels
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Power consumption (typical)30 W
Voltage12 V
Product colorBlack
Audio output channels1.0 channels
Video compression formatsH.264, H.264+
Analog signal format systemNTSC, PAL
HDD interfaceSerial ATA
Maximum HDD capacity6000 GB
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Weight2000 g
Dimensions (WxDxH)315 x 242 x 45 mm
