Network Video Recorder User Manual
54

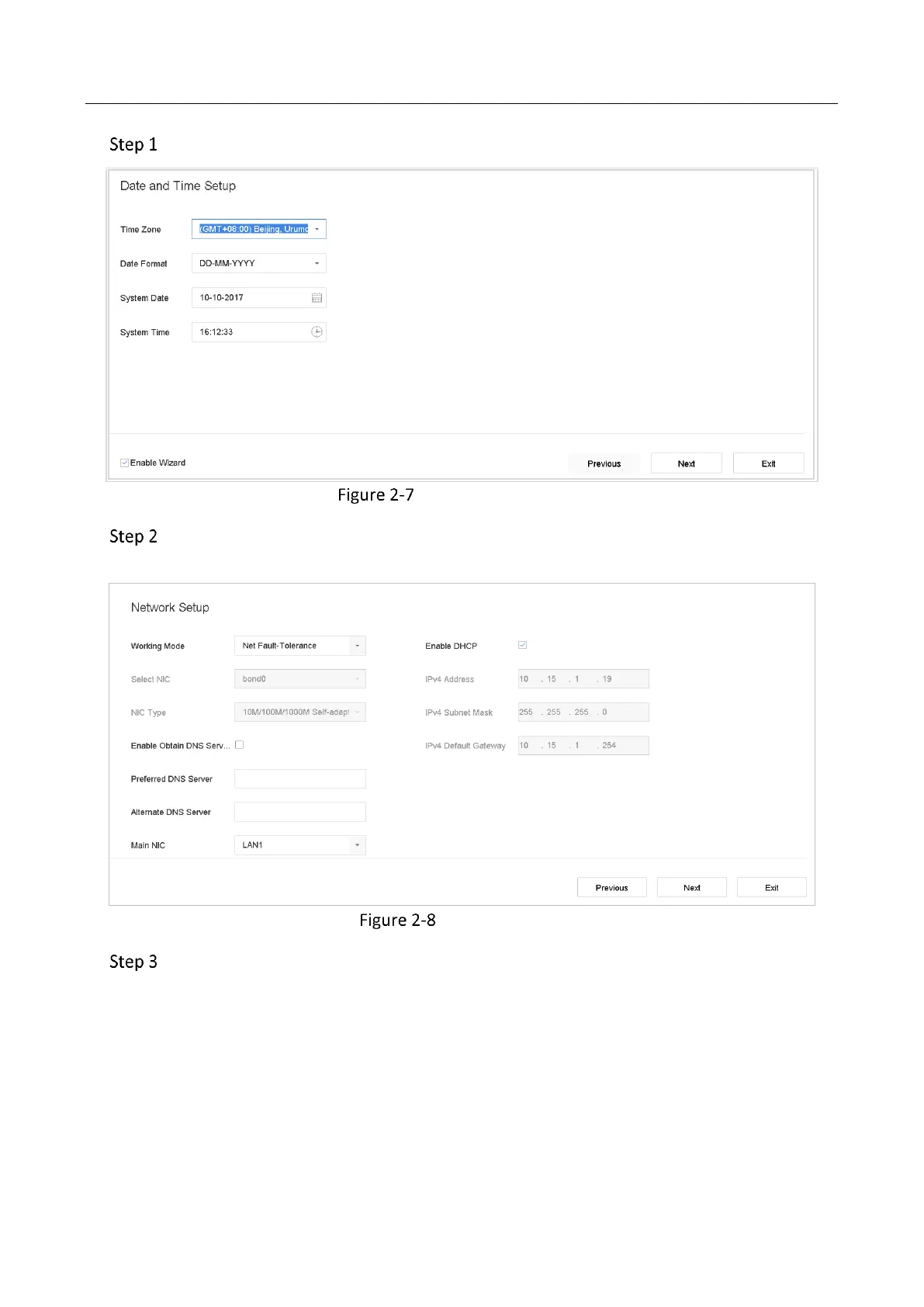

Configure the date and time on the Date and Time Setup interface.
D
a
te
an
d T
im
e S
et
tin
gs
After the time settings, click
Next
to enter the Network Setup Wizard window, as
shown in the following figure.
N
e
tw
ork
S
e
tt
i
ng
s
Click
Next
after you configured the network parameters, which takes you
t
o the
HDD
Management
window.
54
56
Table of Contents
default chapter
8
Product Key Features
8
Table of Contents
14
Chapter 1 Introduction
22
Front Panel
22
Ds-7100Hqhi-K1
22
DS-7300HQHI-K4, DS-7300HUHI-K4, Ids-7316HUHI-K4/16S and DS-7300HTHI-K4
22
DS-8100HQHI/HUHI/HTHI-K8, DS-9000HUHI/HTHI-K8 and Ids-9016HUHI-K8/16S
26
Other Models
30
IR Remote Control Operations
31
Pairing (Enabling) the IR Remote to a Specific Device (Optional)
31
Unpair (Disable) an IR Remote from a Device
32
Troubleshooting
35
USB Mouse Operation
36
Rear Panel
37
DS-7100HQHI-K1, DS-7200HUHI-K (/P), Ids-7200HUHI-K/4S, DS-7200HTHI-K, DS- 7200HQHI-K(/P), and Ids-7200HQHI-K/S
37
Ds-7300Hqhi-K
39
DS-7300HUHI/HTHI-K4, Ids-7316HUHI-K4/16S and DS-9000HUHI-K8
41
DS-7300HQHI/HUHI-K4, DS-8100HQHI/HUHI-K8, DS-9000HUHI-K8, and Ids-9016HUHI-K8/16S
43
Ds-7200Hghi-K1
45
Ds-7200Hghi-K2
46
Ds-8100Hthi-K8
47
Ds-9000Hthi-K8
48
Chapter 2 Getting Started
50
Start up the Device
50
Activate the Device
50
Configure Unlock Pattern for Login
52
Login to the Device
53
Log in Via Unlock Pattern
53
Log in Via Password
54
Enter Wizard to Configure Quick Basic Settings
54
Enter Main Menu
58
System Operation
59
Log out
59
Shut down the Device
59
Reboot the Device
59
Chapter 3 Camera Management
61
Add the IP Cameras
61
Add the IP Camera Manually
61
Add the Automatically Searched Online IP Cameras
62
Connecting Poc Cameras
62
Configure Signal Input Channel
63
Configuring 5 MP Long Distance Transmission
64
Enable the H.265 Stream Access
65
Upgrade the IP Camera
65
Chapter 4 Camera Settings
67
Configure OSD Settings
67
Configure Privacy Mask
68
Configure the Video Parameters
69
Configure the Day/Night Switch
69
Configure Other Camera Parameters
70
Chapter 5 Live View
71
Start Live View
71
Digital Zoom
71
Live View Strategy
72
Target Detection
72
Configure Live View Settings
73
Configure Live View Layout
73
Configure Auto-Switch of Cameras
75
Configure Channel-Zero Encoding
75
Using an Auxiliary Monitor
76
Chapter 6 PTZ Control
77
PTZ Control Wizard
77
Configure PTZ Parameters
77
Set PTZ Presets, Patrols & Patterns
78
Set a Preset
78
Call a Preset
79
Set a Patrol
80
Call a Patrol
81
Set a Pattern
82
Call a Pattern
83
Set Linear Scan Limits
83
Call Linear Scan
84
One-Touch Park
84
Auxiliary Functions
85
Chapter 7 Storage
86
Storage Device Management
86
Install the HDD
86
Add the Network Disk
86
Configure Esata for Data Storage
88
Storage Mode
89
Configure HDD Group
89
Configure HDD Quota
91
Recording Parameters
92
Main Stream
92
Sub-Stream
93
93
Configure Advanced Recording Settings
93
Configure Recording Schedule
94
Configure Continuous Recording
96
Configure Motion Detection Triggered Recording
96
Configure Event Triggered Recording
97
Configure Alarm Triggered Recording
97
Configure Picture Capture
97
Configure Holiday Recording and Capture
98
Configure Redundant Recording and Capture
100
Configure 1080P Lite
101
Enable the 1080P Lite Mode
101
Disable the 1080P Lite Mode
102
Chapter 8 Disk Array
103
Create Disk Array
103
Enable RAID
103
One-Touch Creation
104
Manual Creation
104
Rebuild Array
106
Configure Hot Spare Disk
106
Automatically Rebuild Array
106
Manually Rebuild Array
107
Delete Array
108
Check and Edit Firmware
109
Chapter 9 File Management
110
Search and Export All Files
110
Search Files
110
Export Files
110
Search and Export Human Files
111
Search Human Files
111
Export Human Files
111
Search and Export Vehicle Files
112
Search Vehicle Files
112
Export Vehicle Files
112
Search History Operation
113
Save Search Condition
113
Call Search History
113
Chapter 10 Playback
114
Play Video Files
114
Instant Playback
114
Play Normal Video
114
Play Smart Searched Video
115
Play Custom Searched Files
116
Play Tag Files
117
Play Event Files
119
Play by Sub-Periods
120
Play Log Files
121
Play External File
121
Playback Operations
122
Set Play Strategy in Smart/Custom Mode
122
Edit Video Clips
123
Switch between Main Stream and Sub-Stream
123
Thumbnails View
123
Fast View
124
Digital Zoom
124
Chapter 11 Event and Alarm Settings
125
Configure Arming Schedule
125
Configure Alarm Linkage Actions
125
Configure Auto-Switch Full Screen Monitoring
125
Configure Audio Warning
126
Notify Surveillance Center
126
Configure Email Linkage
127
Trigger Alarm Output
127
Configure PTZ Linkage
127
Configure Motion Detection Alarm
128
Configure Video Loss Alarm
130
Configure Video Tampering Alarm
131
Configure Sensor Alarms
132
Configure Alarm Input
132
Configure One-Key Disarming
133
Configure Alarm Output
134
Configure Exceptions Alarm
135
Trigger or Clear Alarm Output Manually
136
Chapter 12 POS Configuration
138
Configure POS Settings
138
Configure POS Connection
138
Configure POS Text Overlay
142
Configure POS Alarm
143
Chapter 13 VCA Event Alarm
145
Human Body Detection
145
Face Detection
146
Vehicle Detection
147
Line Crossing Detection
148
Intrusion Detection
150
Region Entrance Detection
151
Region Exiting Detection
152
Unattended Baggage Detection
154
Object Removal Detection
155
Audio Exception Detection
156
Sudden Scene Change Detection
157
Defocus Detection
158
PIR Alarm
159
Chapter 14 Smart Analysis
161
Face Search
161
Human Body Search
161
Vehicle Search
162
People Counting
163
Heat Map
163
Chapter 15 Human Body Detection
165
Smart Analysis
165
Enable Smart Analysis
165
View Engine Status
167
Human Body Search
167
Search by Appearance
167
Search by Picture
168
Add Search Result as Sample Picture
169
Chapter 16 Network Settings
170
Configure TCP/IP Settings
170
Configure Hik-Connect
171
Configure DDNS
172
Configure Pppoe
173
Configure NTP
173
Configure SNMP
174
Configure Email
175
Configure Ports
176
Chapter 17 System Maintenance
178
Storage Device Maintenance
178
Configure Disk Clone
178
S.M.A.R.T Detection
179
Bad Sector Detection
180
HDD Health Detection
181
Search & Export Log Files
182
Search the Log Files
182
Export the Log Files
183
Import/Export IP Camera Configuration Files
184
Import/Export Device Configuration Files
185
Upgrade System
186
Upgrade by Local Backup Device
186
Upgrade by FTP
186
Upgrade by Hik-Connect
187
Upgrade Camera
187
Restore Default Settings
188
System Service
189
Network Security Settings
189
Managing ONVIF User Accounts
190
Managing IP Camera Activation
191
Chapter 18 General System Settings
193
Configure General Settings
193
Configure Date & Time
194
Configure DST Settings
195
Configure Enhanced IP Mode
195
Manage User Accounts
196
Add a User
196
Set Permission for a User
197
Set Local Live View Permission for Non-Admin Users
199
Edit the Admin User
200
Edit the Operator/Guest User
202
Delete a User
202
Configure Password Security
203
Export GUID File
203
Configure Security Questions
203
Configure Reserved Email
204
Reset Password
205
Reset Password by GUID
205
Reset Password by Security Questions
206
Reset Password by Reserved Email
207
