Rear Panel

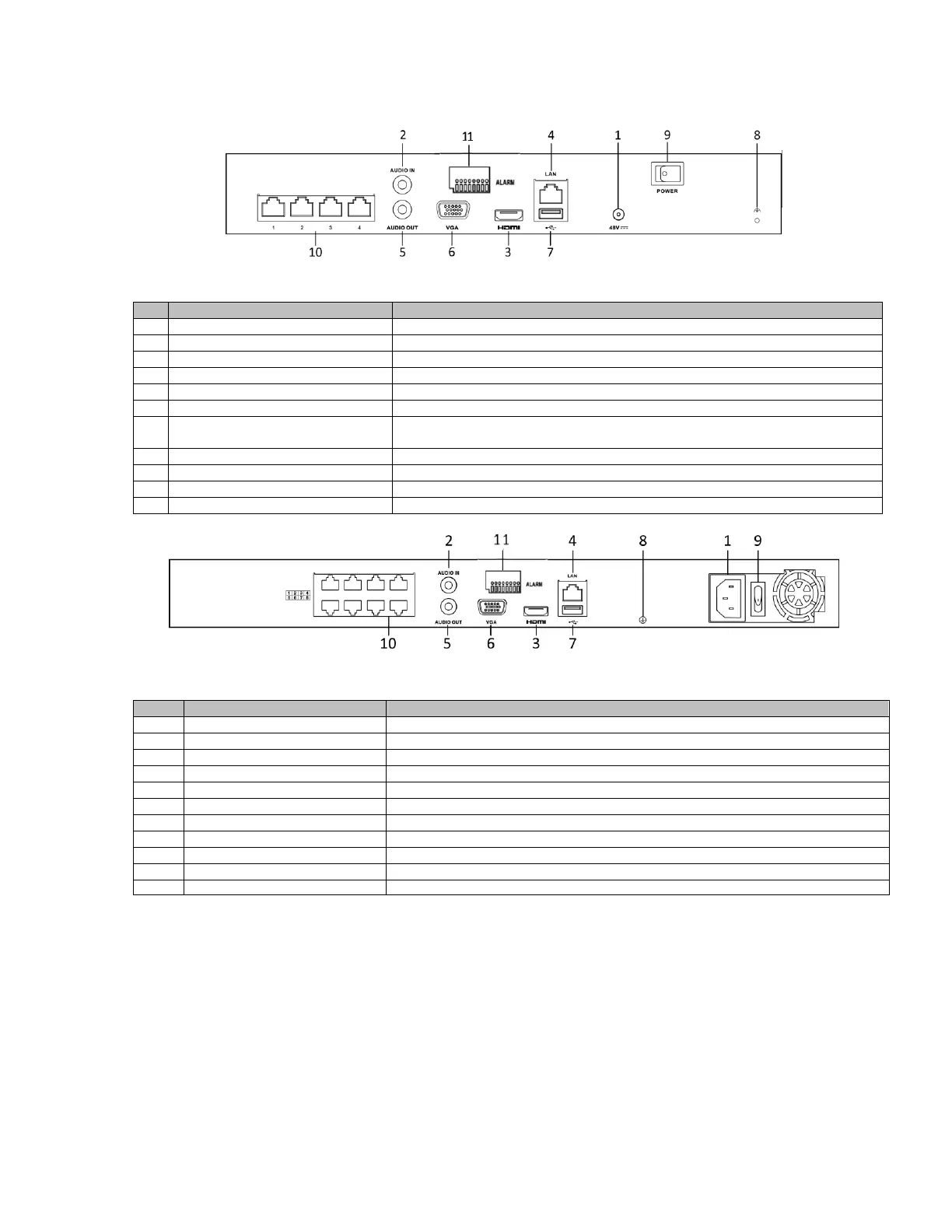

Figure 2, DS-7604NI-E1/4P Rear Panel
No.
Item
Description
1
Power Supply
48
VDC power supply
2
Audio IN
RCA connector for voice talk input
3
HDMI Interface
HDMI video output connector.
4
LAN Network Interface
LAN Network interface to communicate
5
Audio OUT
RCA connector for audio output
6
VGA Interface
DB9 connector for VGA output. Display local video output and menu.
7
USB Interface
USB
ports for additional devices such as USB mouse and USB Hard Disk Drive
(HDD).
8
Ground
Ground (needs to be connected when NVR starts up).
9
Power Switch
Switch for turning on/off the device.
10
Network interfaces with PoE function
Network interface for the cameras and to provide power over Ethernet.
11
Alarm In/Out
Alarm Input/Output Interface
Figure 3, DS-7608NI-E2/8P and DS-7616NI-E2/16P Rear Panel
No.
Item
Description
1
Power Supply
110 to
220
VAC power supply
2
Audio IN
RCA connector for voice talk input
3
HDMI Interface
HDMI video output connector
4
LAN Network Interface
LAN Network interface to communicate
5
Audio OUT
RCA connector for audio output
6
VGA Interface
DB9 connector for VGA output. Display local video output and menu
.
7
USB Interface
USB
ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD)
8
Ground
Ground (needs to be
connected when NVR starts up)
9
Power Switch
Switch for turning on/off the device
10
Network interfaces with PoE
Network interface for the cameras and to provide power over Ethernet
11
Alarm In/Out
Alarm Input/Output Interface
NOTE: The 7616NI-E2/16P rear panel provides 16 independent 100 Mbps PoE network interfaces.
