DS-7600 Series NVR User’s Manual, 101316NA
13

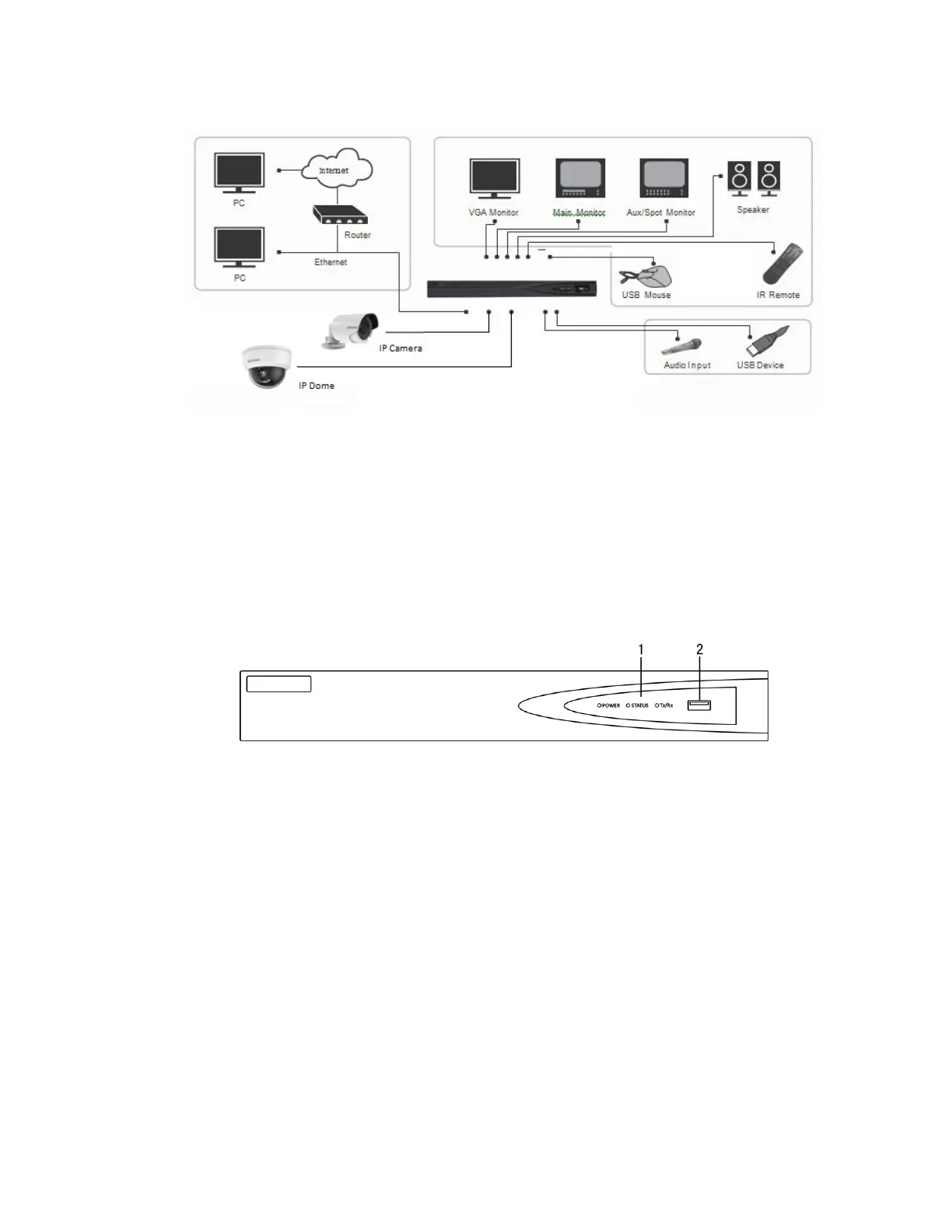

Product Application Diagram
Figure 4, Product Application Diagram
NOTE: DS-7604NI-E1/4P, DS-7608NI-E2/8P, and DS-7616NI-E2/16P can connect only network cameras.
Operating Your NVR
There are numerous ways to navigate and operate your NVR. You may use the front panel, the IR (Infrared) remote, a mouse, and the
soft keyboard.
Front Panel
The following figure shows the NVR front panel:
Figure 5, NVR Front Panel
The items on the front panel include:
1. Status Indicators:
• Power: Power indicator turns yellow when system is running.
• Status: Status indicator blinks red when data is being read from or written to HDD.
• Tx/Rx: Tx/Rx indictor blinks yellow when network connection is functioning properly.
2. USB Ports: Connects USB mouse or USB flash memory devices.
