DS-7600 Series NVR User Manual
88

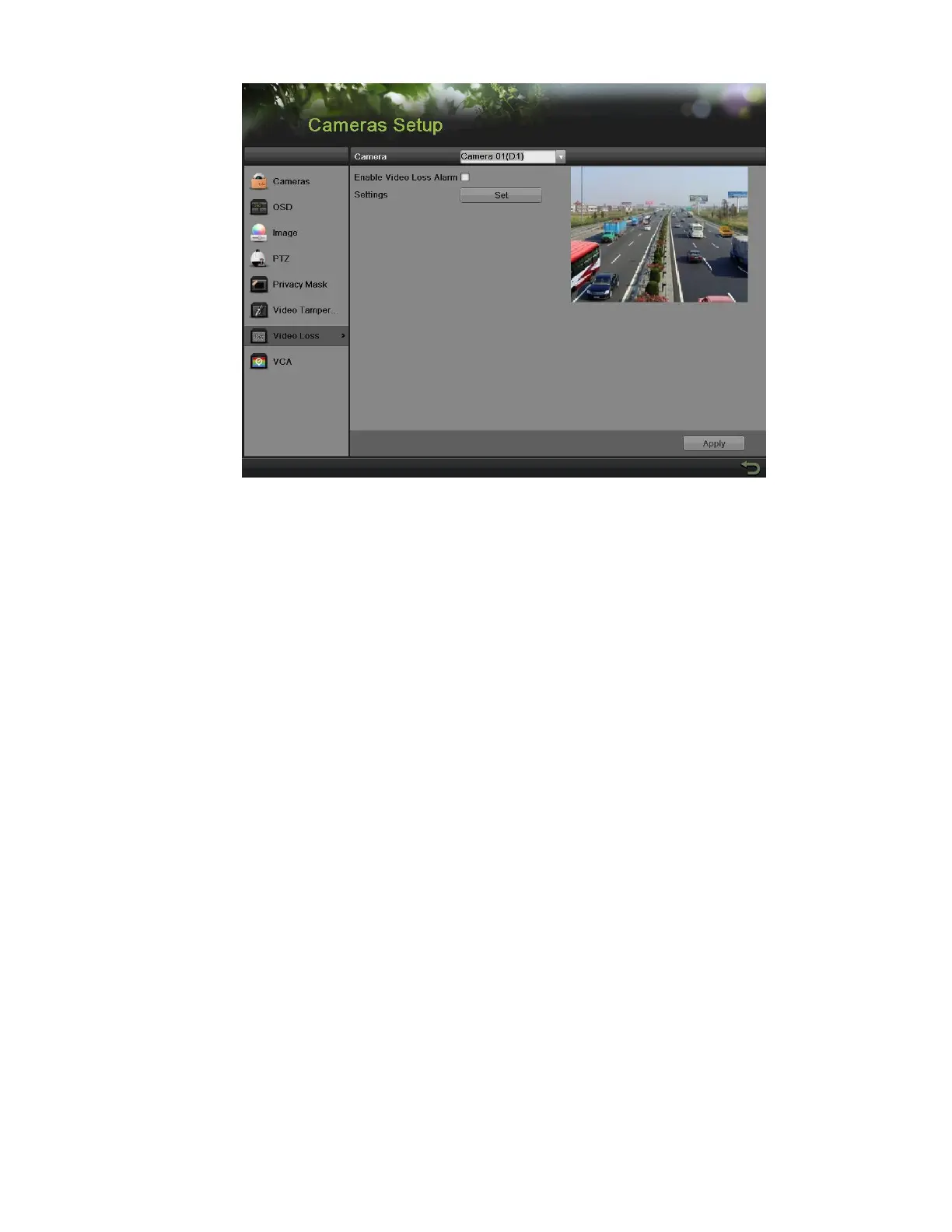

Figure 114, Video Loss Detection Menu
2. Select the camera to set up video loss detection by using the camera drop-down list.
3. Check the Enable Video Loss Detection checkbox.
4. Press the Set button to set up linkage action.
1) Select the Arming Schedule tab to set the arming schedule. Up to eight periods can be configured. If the same schedule can be
applied in other days, click Copy.
2) Select the Linkage Action tab to set the actions to take if Video Loss is detected. For detailed instructions of the actions, refer to
page 75.
5. Click the Apply button to save the settings. Click OK to back to the previous menu.
6. Click the Apply button on the Video Loss interface to save the settings.
Configuring VCA
VCA can be enabled on any of the NVR channels to detect VCA events and trigger VCA alarms. To configure VCA:
1. Enter the VCA menu, shown in Figure 115, VCA Menu, by going to Menu > Cameras Setup > VCA.
