DS-7600 Series NVR User Manual
89

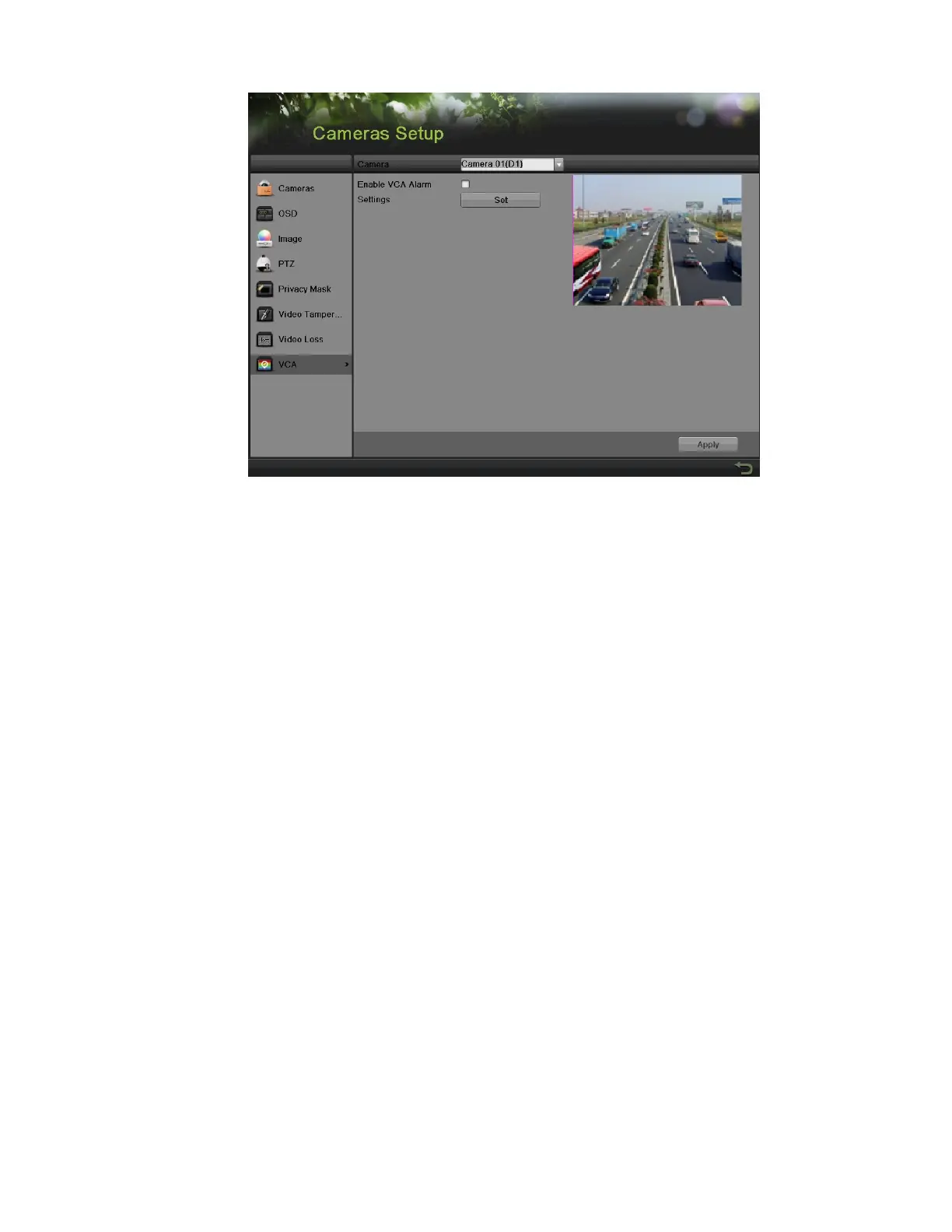

Figure 115, VCA Menu
2. Select the camera to setup VCA Alarm in using the camera drop-down list.
3. Check the Enable VCA Alarm checkbox.
4. Press the Set button to set up linkage action.
1) Select the Arming Schedule tab to set the arming schedule. Up to eight periods can be configured. If the same schedule can be
applied in other days, click Copy.
2) Select the Linkage Action tab to set the actions to take if VCA event is detected. For detailed instruction of the actions, refer to
page 75.
5. Click the Apply button to save the settings. Click OK to return to the previous menu.
6. Click the Apply button on the VCA interface to save the settings.
Configuring OSD Settings
On Screen Display (OSD) settings can be configured in the OSD menu. The OSD is shown in each display in Live Feed and Playback
mode.
To configure OSD settings:
1. Enter the OSD menu, shown in Figure 116 by going to Menu > Cameras Setup > OSD.
