DS-7600 Series NVR User Manual
94

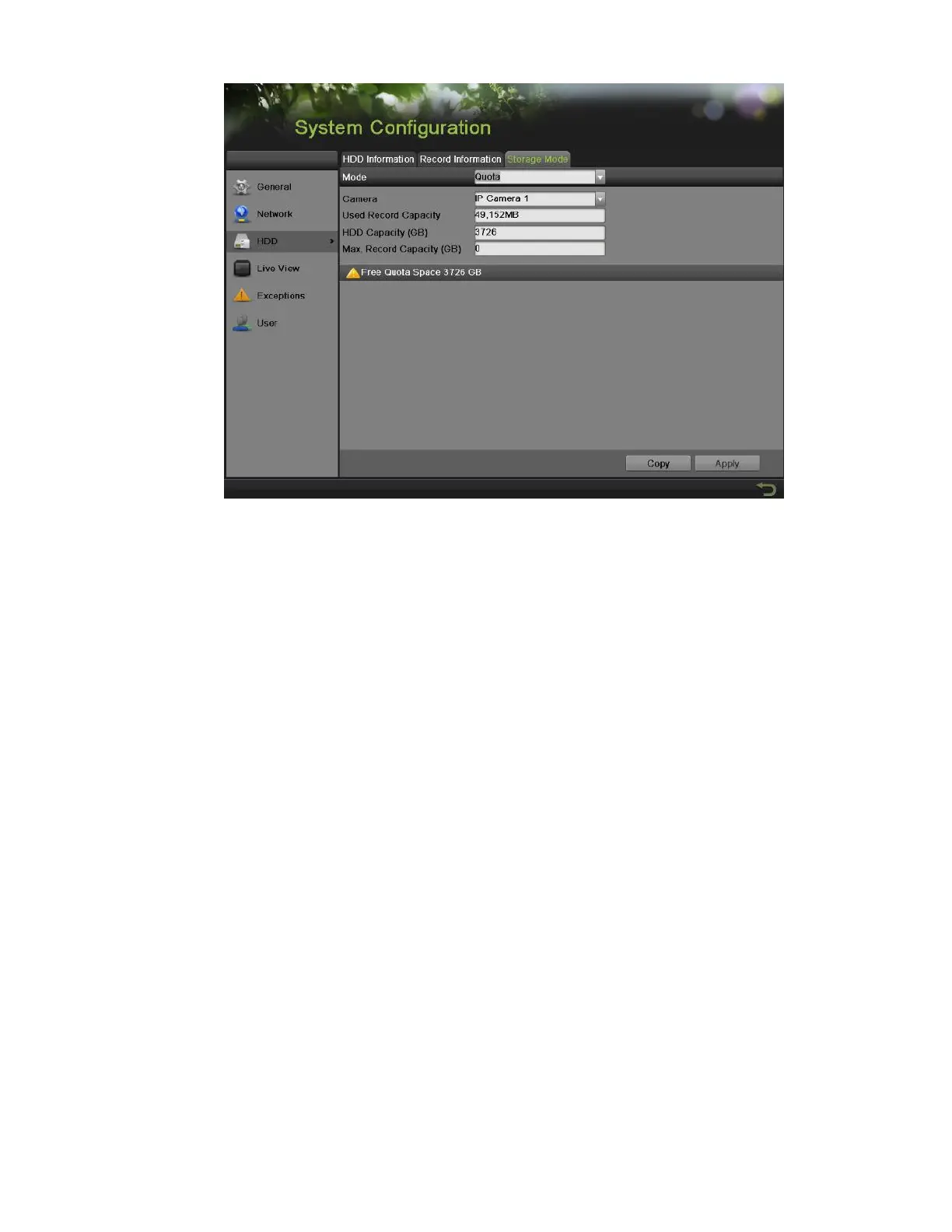

Figure 123, Quota Mode Settings Menu
2. Select the Storage Mode tab, as shown in Figure 123.
3. Select the Mode to Quota.
4. Select a camera for which you want to configure quota.
5. Enter the storage capacity in the text fields of Max. Record Capacity (GB).
6. If the same settings can be applied in other channels, click Copy and select the corresponding channels.
7. Click the Apply button to save the settings.
NOTE: If the quota capacity is set to 0, all cameras will use the total HDD capacity to record.
Managing HDD Group
Multiple HDDs can be managed in groups. Video from specified channels can be recorded onto a particular HDD group through HDD
settings. To managing HDD Group:
1. Enter the HDD menu by going to Menu > System Configuration > HDD.
2. Select the Storage Mode tab, as shown in Figure 123.
3. Select the Mode to Group, as shown in Figure 124.
