1.1 Front Panel
DS-8600NI-E8 Series

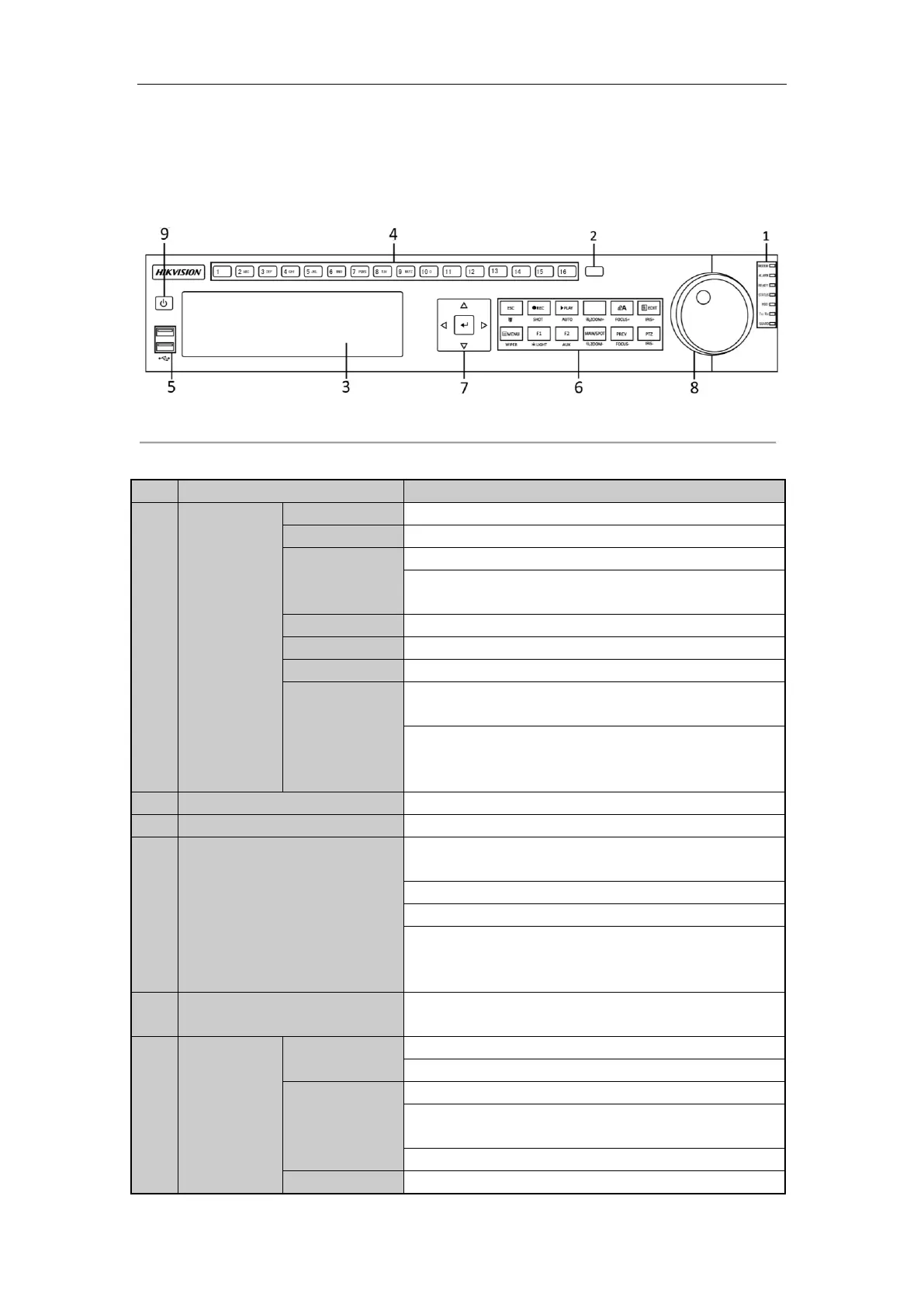

Figure 1. 1 DS-8600NI-E8 Series
Table 1. 1 Description of Control Panel Buttons
Turns red when a sensor alarm is detected.
Turs blue when the device is functioning properly.
Turns blue when device is controlled by an IR remote.
Turns red when controlled by a keyboard and purple when IR
remote and keyboard is used at the same time.
Flickers red when data is being read from or written to HDD.
Reserved for future usage.
Flickers blue when network connection is functioning properly.
Turns blue when the device is in armed status; at this time, an
alarm is enabled when an event is detected.
Turns off when the device is unarmed. The arm/disarm status
can be changed by pressing and holding on the ESC button for
more than 3 seconds in live view mode.
Switches to the corresponding channel in live view or PTZ
control mode.
Inputs numbers and characters in edit mode.
Switches between different channels in playback mode.
Turns blue when the corresponding channel is recording; turns
red when the channel is in network transmission status; turns
pink when the channel is recording and transmitting.
Universal Serial Bus (USB) ports for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
Returns to the previous menu.
Presses for arming/disarming the device in live view mode.
Enters the Manual Record settings menu.
Presses this button followed by a numeric button to call a PTZ
preset in PTZ control settings.
Turns audio on/off in the playback mode.
Enters the playback mode.
