HIKVISION DS-7608NI-I2 User Manual

User Manual
Code: DS-7608NI-I2
IP DVR DS-7608NI-I2 8 CHANNELS Hikvision
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: delta-opti@delta.poznan.pl; tel: +(48) 61 864 69 60
2021-06-07 DS-7608NI-I2 4/4

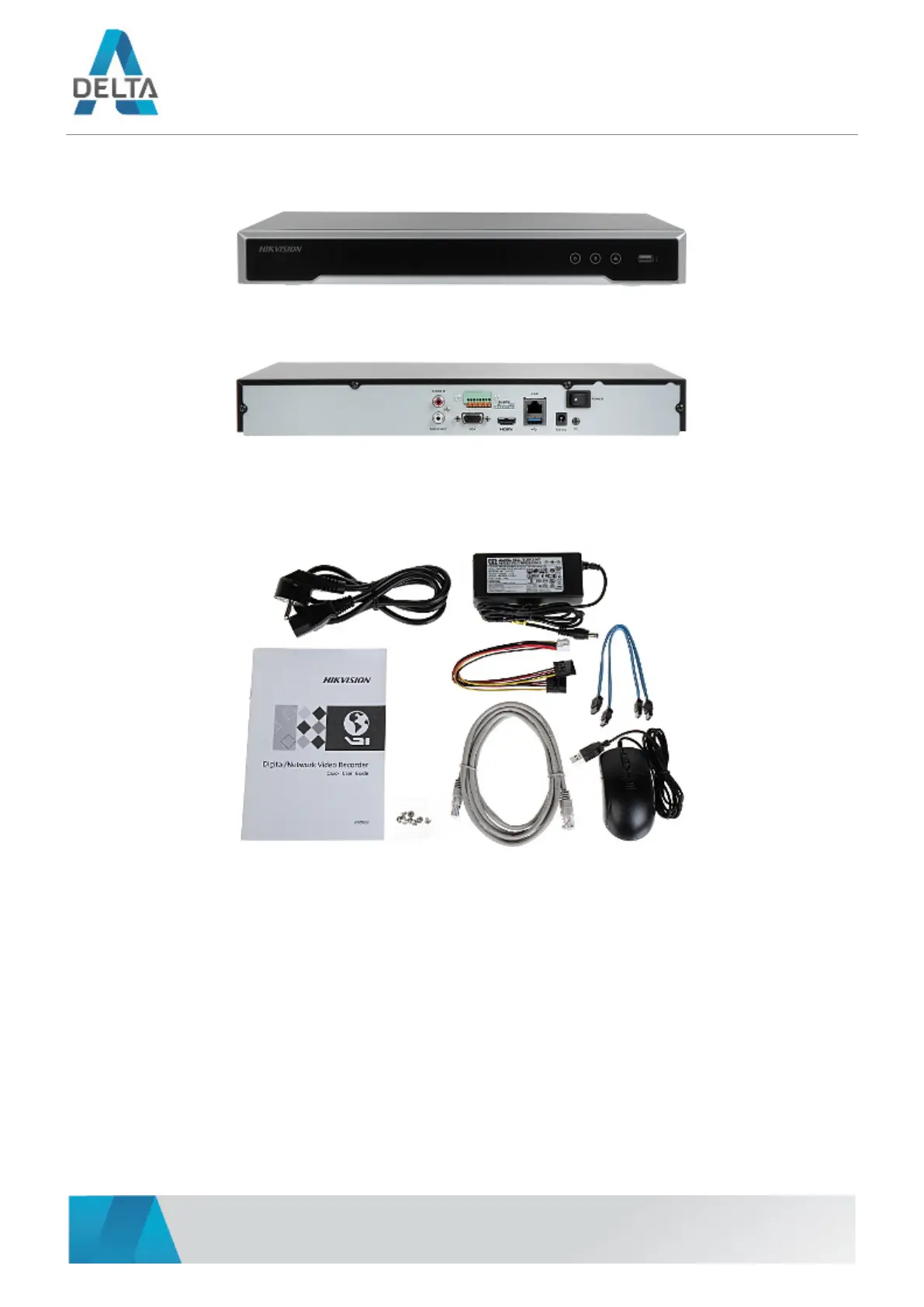

Front panel:
Rear panel:
See how to mount a hard disk drive and configure the recorder:
:
In the kit:

HIKVISION DS-7608NI-I2 Specifications

General

Input bandwidth	80 Mbit/s
Number of users	64 user(s)
Output bandwidth	256 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	4
Video input channels	8 channels
Alarm output channels	1
Supported resolutions	3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768, 704 x 576, 704 x 480
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
DC-in jack	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	10 TB
Number of HDDs installed	0
Number of HDDs supported	2
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Product color	Black, Silver
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	15 W
Wi-Fi	No

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	1000 g
