Digital Video Recorder User Manual
88
Step 2 Check the checkboxes to select the channels for diagnostics.
Step 3 Click the button Diagnose, and the results will be displayed on a list. You can view the video
status and diagnostics time of the selected channels.

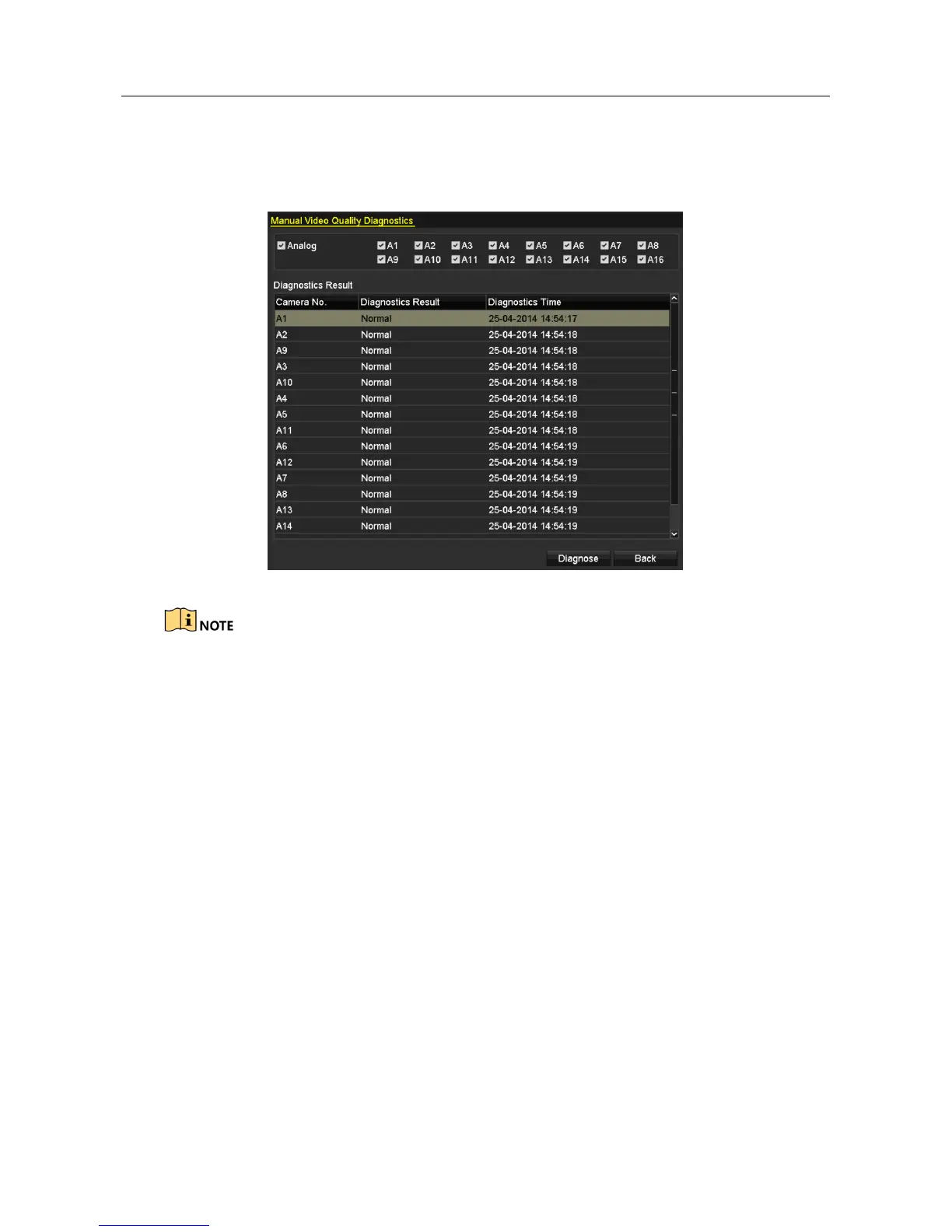

Figure 3-14 Diagnostics Result
Connect the camera to the device for the video quality diagnostics.
Three exception types can be diagnosed: Blurred Image, Abnormal Brightness and Color
Cast.
