Network Video Recorder Quick Start Guide
11

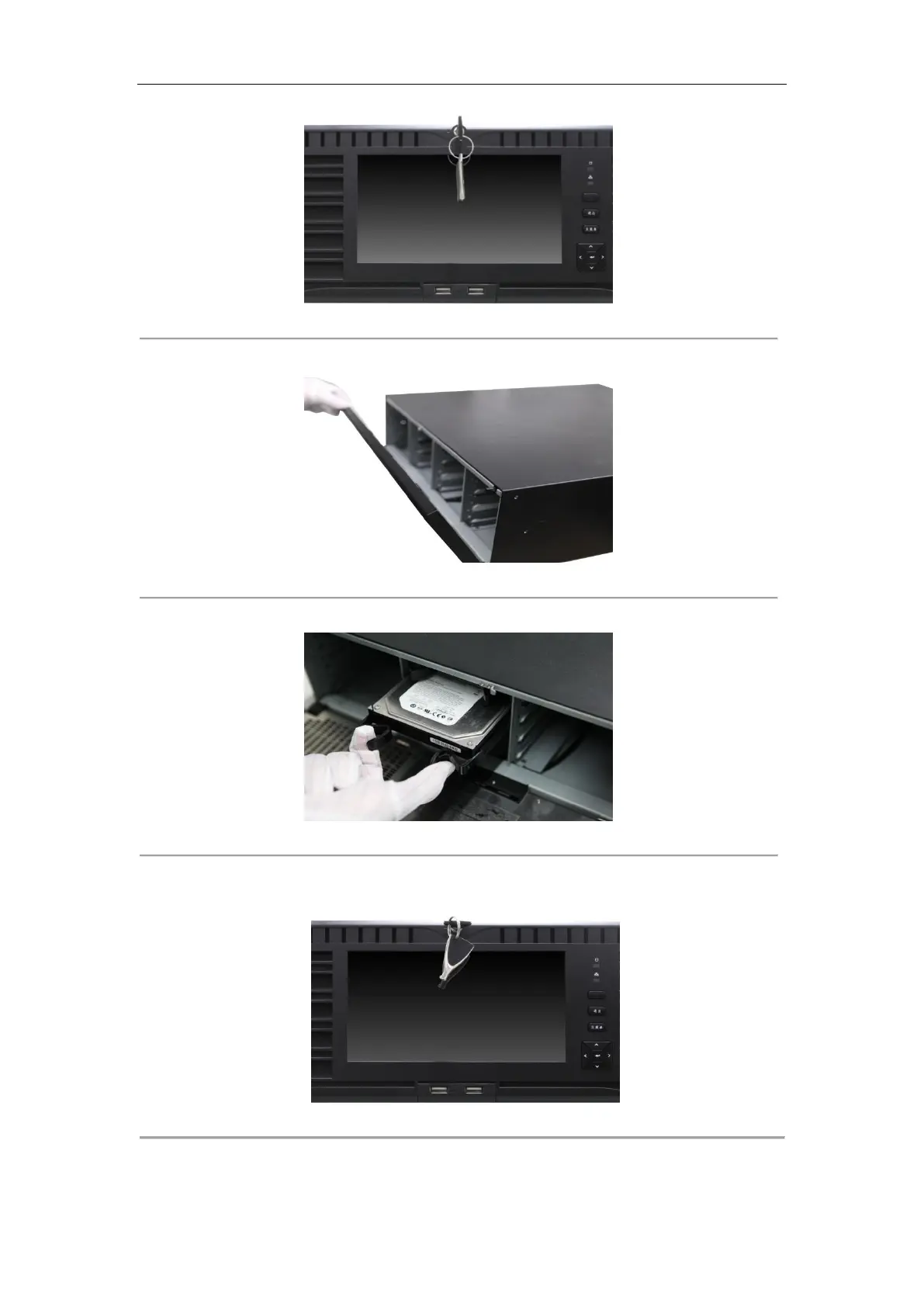

Figure 2. 2 Insert Panel Key
3. Press the buttons on the panel of two sides and open the front panel.
Figure 2. 3 Open Panel Lock
4. Insert the hard disk along the slot until it is placed into position.
Figure 2. 4 Insert Hard Disk
5. Repeat the above steps to install other hard disks onto the NVR. After having finished the installation of all
hard disks, close the front panel and lock it with the key again.
Figure 2. 5 Lock Panel
