Network Video Recorder Quick Start Guide
13

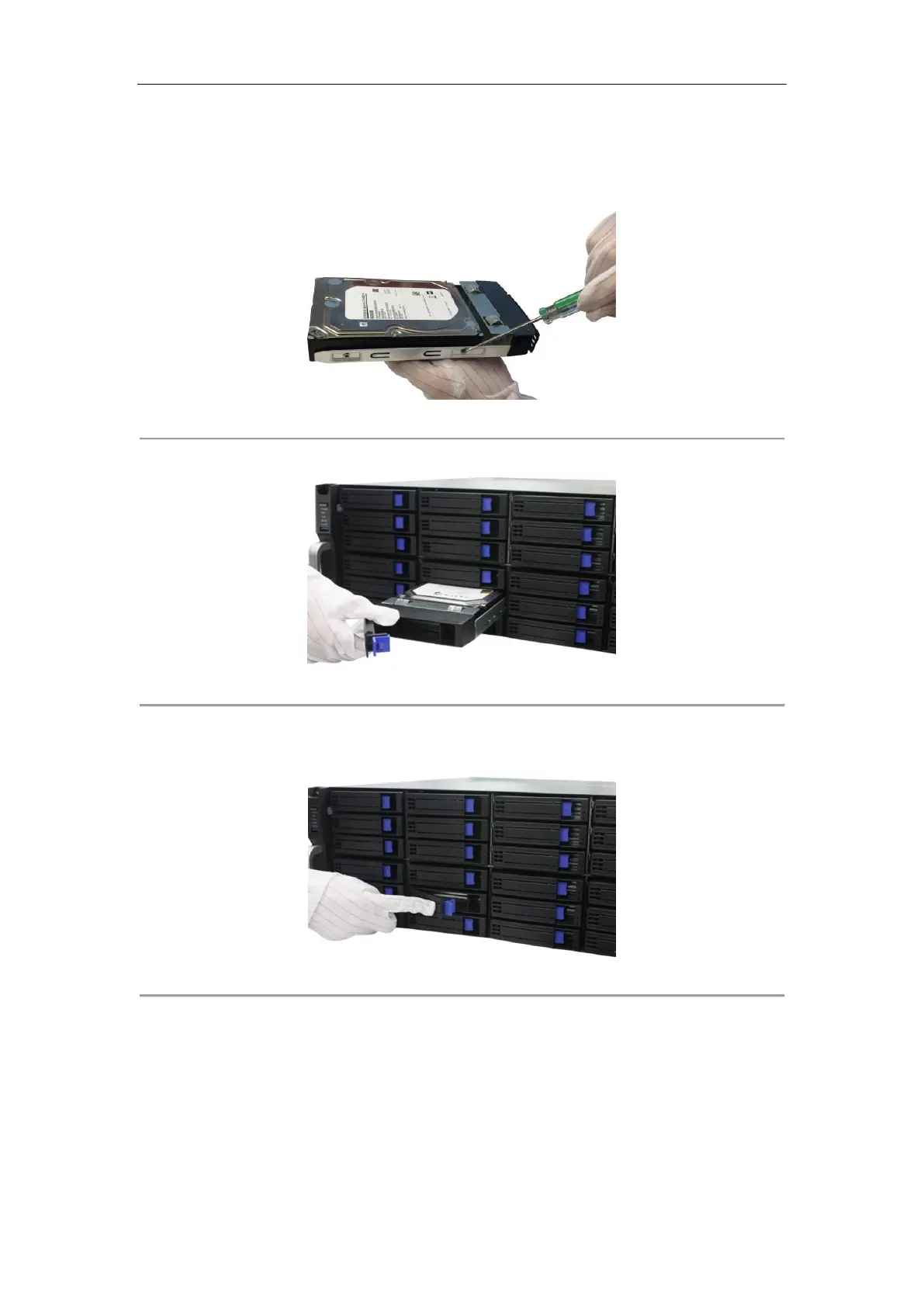

4. Fix the hard disk in the hard disk box.
1) Place a hard disk in the hard disk box. The SATA interface must face the hard disk box bottom.
2) Adjust the hard disk position. Ensure the hard disk rear aligning with hard disk bottom.
3) Use a screwdriver to fasten the four screws into the screw holes that in both sides.
Figure 2. 9 Fix the Hard Disk
5. Push the hard disk box back into the slot.
Figure 2. 10 Push the Hard Disk Box into the Slot
6. Press the handle until you hear a click. Thus to fix the hard disk box. Repeat above steps to install the rest
hard disk boxes.
Figure 2. 11 Press the Handle
7. Install the cover back to front panel. And lock it with panel key.
