HIKVISION DS-C30S-L104 - LED Sending Card

Video Wall Controller • Quick Start Guide
10

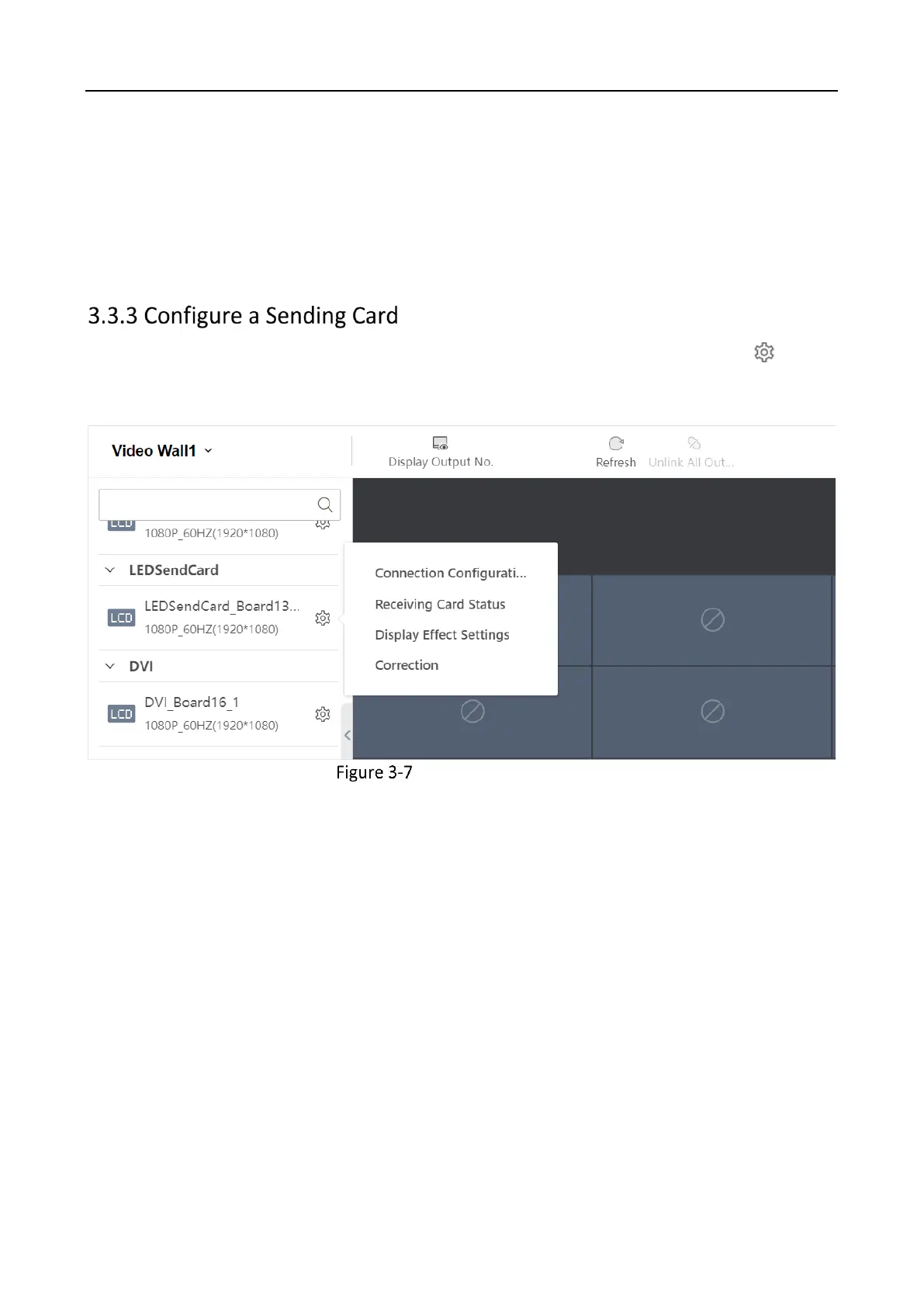

LED Sending Card
1
2
3
4
5
6
Front View of LED Sending Card
No.
Name
Description
1
Power LED
When the board is powered on normally, the
power LED is steady green.
2
Active LED
When the board runs normally, the active LED is
flashing green.
3
Gigabit network port
Use the mini SAS cable converting one mini SAS
HD 8X connector to five RJ-45 female connectors
to conect the port.
4
10 Gigabit SFP port
Support two 10 Gigabit optical modules.
5
10 Gigabit SFP port LED
When the inserted 10 Gigabit optical module
functions normally, the 10 Gigabit SFP port LED is
steady green.
6
Audio output port
Support line-out audio output through left and
right channels or two separate channels.
Mini SAS cable
