Video Wall Controller
•
User Manual
20
Ad
d
a
Ne
tw
ork
Si
gn
al
S
our
ce
v
ia
I
P
Ad
dr
es
s

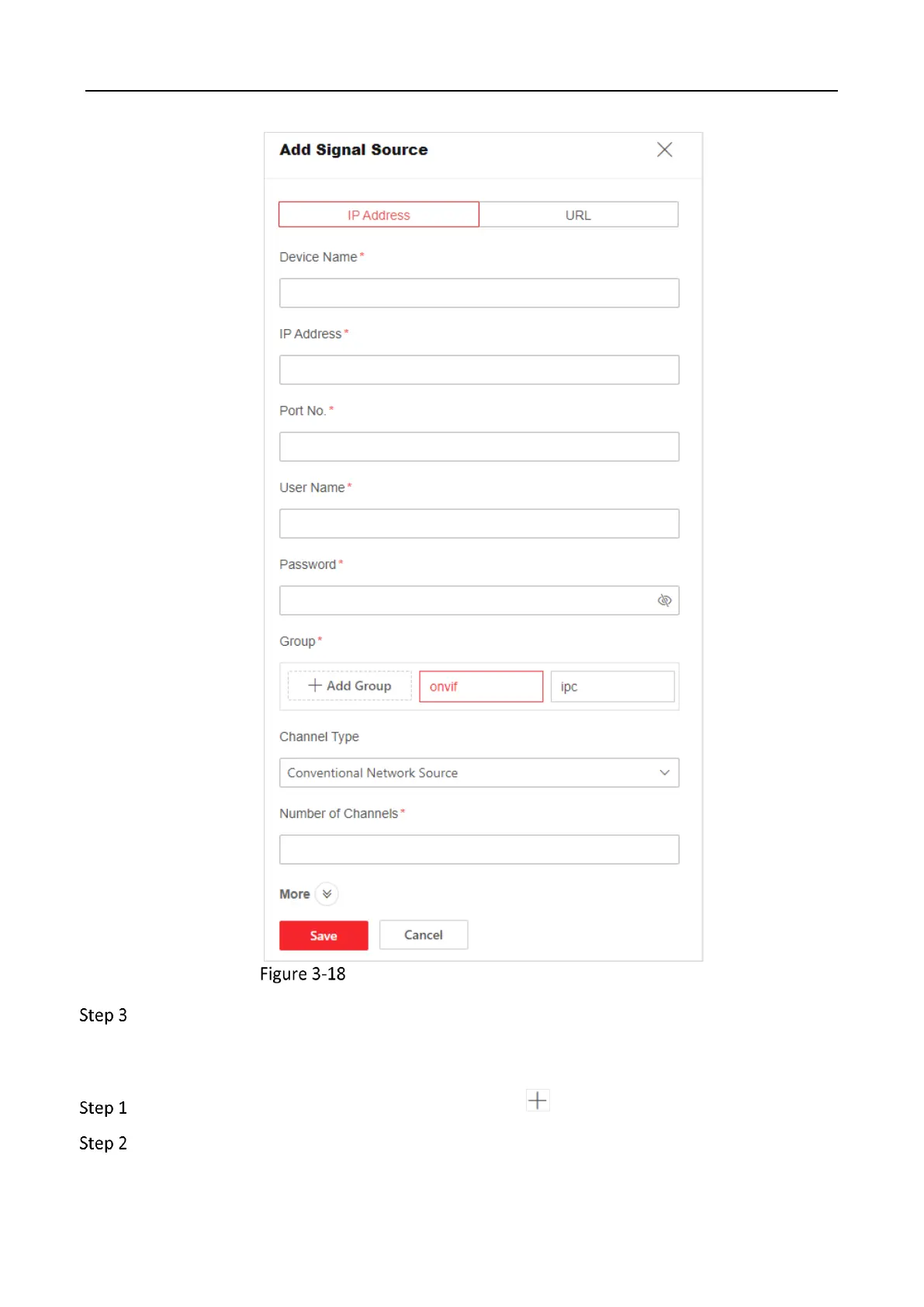

Click
Save
.
Add
a
Network Signal
Source via URL Address
Go to
Video Wall Operation
→
Signal Source
, click
, and select
URL
.
Enter the signal source information.
25
27
Table of Contents
Chapter 1 Introduction
7
1.1 Overview
7
1.2 First-Time Configuration Process
8
Chapter 2 Device Activation
9
2.1 Activate the Device via SADP Software
9
2.2 Activate the Device via Web Browser
10
Chapter 3 Device Configuration
12
3.1 Log In to the Device via Web Browser
12
3.2 Configure the Network Address
12
3.3 Configure a Video Wall
13
3.3.1 Configure the Video Wall Scale
13
3.3.2 Bind Output Ports with Video Wall
14
3.3.3 Configure a Sending Card
17
Configure Connection
17
Configure Display Effect
20
Correct Screen or Seam
20
3.3.4 Add a Network Signal Source
24
Add a Network Signal Source via IP Address
24
Add a Network Signal Source via URL Address
26
3.3.5 Bind Signal Sources with Video Wall
27
3.4 Operate a Video Wall
28
3.4.1 Edit a Signal Source Window
28
3.4.2 Configure Subtitles
32
Configure a Text Subtitle
32
Configure a Time Subtitle
34
3.4.3 Manage Scenes
36
3.4.4 Maintain Screens
36
3.5 Configure Screen Display Effect
38
3.5.1 Configure Screen Parameters
38
Customize the Resolution
40
Set OSD Display
41
3.5.2 Splice Signal Source
41
3.5.3 Configure Other Parameters
43
Configure Displayed Video Wall on HikCentral Professional Control Client
44
3.6 Configure the Device
45
3.6.1 Configure System Parameters
45
3.6.2 Configure HTTP(S) Parameters
49
3.6.3 Configure Event
50
3.7 Maintain the System
51
Debug the Device
53
Upgrade LED Receiving Card
53
3.8 Maintain the Device Security
54
