HIKVISION DS-K1T341CMF User Manual

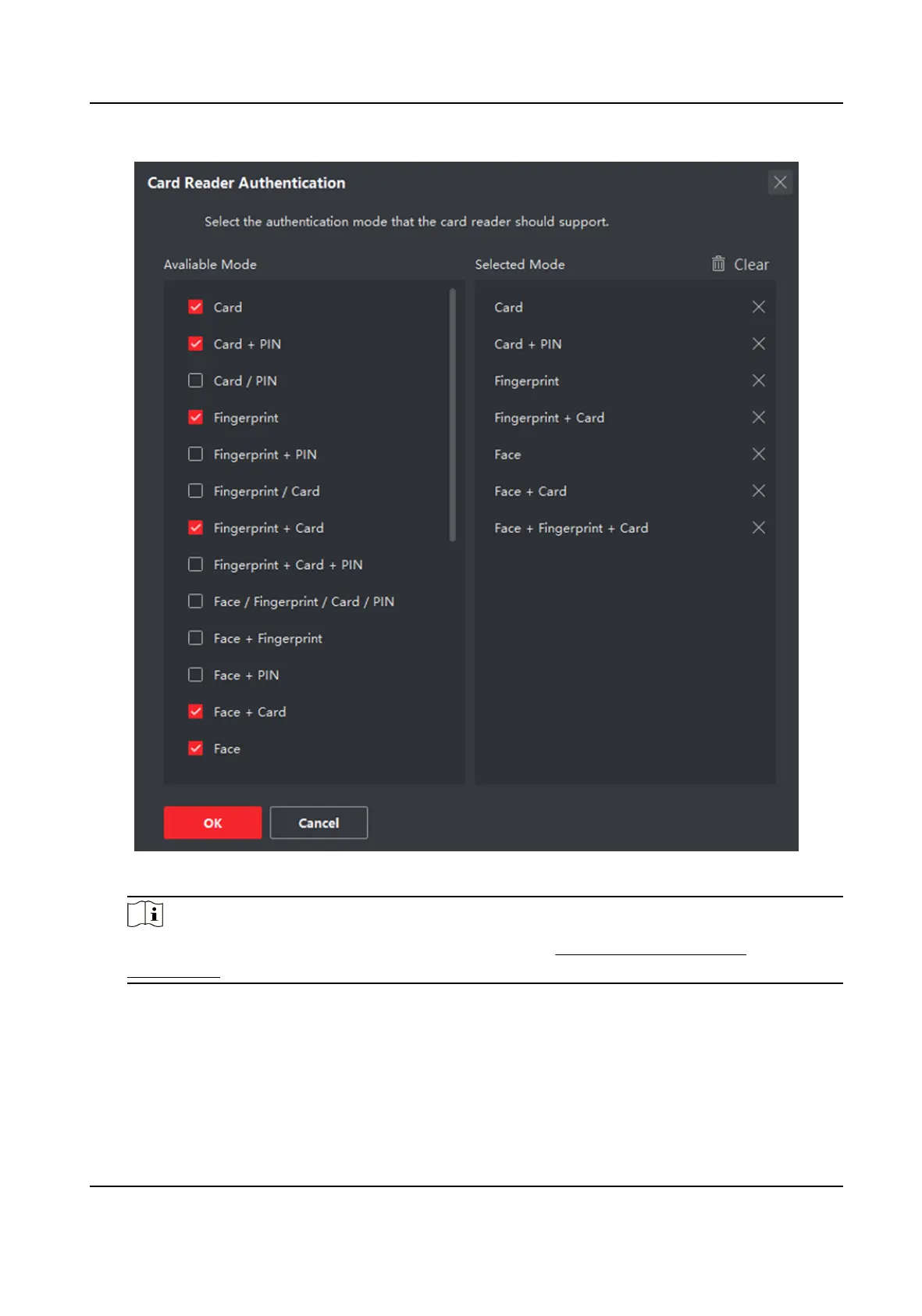

Figure 9-10 Select Card Reader Authencaon Mode
Note
PIN refers to the PIN code set to open the door. Refer to Congure Access Control
Informaon .
2) Check the modes in the Available Mode list and they will be added to the selected modes list.
3) Click OK.
Aer selecng the modes, the selected modes will display as icons with dierent color.
4.
Click the icon to select a card reader authencaon mode, and drag the cursor to draw a color
bar on the schedule, which means in that period of
me, the card reader authencaon is valid.
5.
Repeat the above step to set other me periods.
DS-K1T341C Series Face Recognion Terminal User Manual
169

HIKVISION DS-K1T341CMF Specifications

General

Type	Face recognition terminal
Product color	Black, Silver
Cards capacity	3000 cards
Event capacity	150000
Access code reader	-
Authentication type	Access chip/card, Face recognition
Face recognition distance	0 - 2 m
Face recognition duration	0.2 s
Access chip/card reader type	Contact
International Protection (IP) code	IP65
Operating system installed	Linux
Screen shape	Flat
Display diagonal	4.3 \
Maximum resolution	272 x 480 pixels
Touchscreen technology	Capacitive
Total megapixels	2 MP
Ethernet LAN data rates	10, 100 Mbit/s
Power consumption (typical)	10 W
Operating temperature (T-T)	-30 - 60 °C
