Type 1
Note
The re system controls the power supply of the access control system.

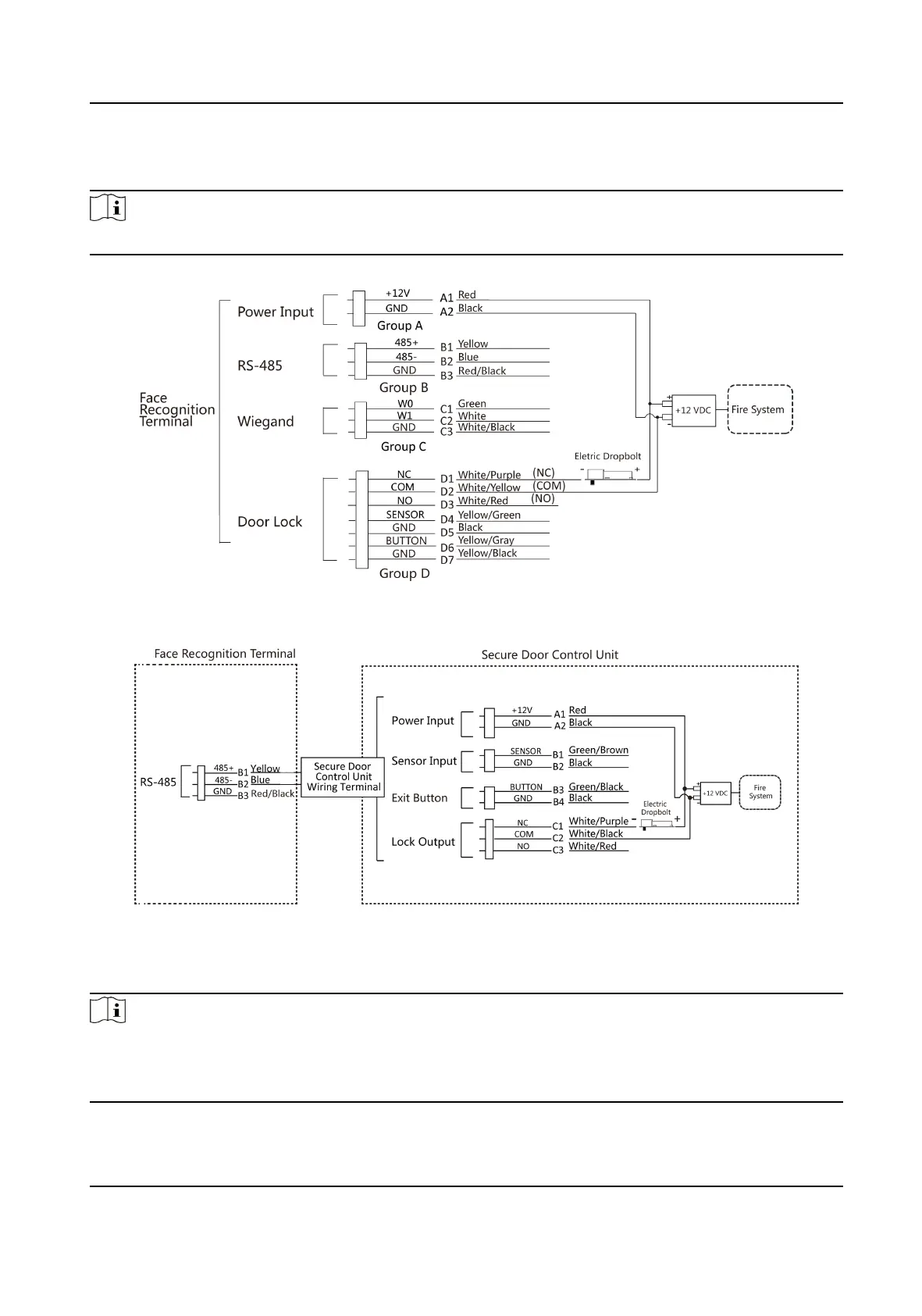

Figure 4-3 Wire Device
Figure 4-4 Wire Secure Door Control Unit
Type 2
Note
The re system (NO and COM, normally open when powering o) is connected with the lock and
the power supply in series. When an re alarm is triggered, the door remains open. In normal
mes, NO and COM are closed.
DS-K1T341C Series Face Recognion Terminal User Manual
19

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-K1T341CMF and is the answer not in the manual?

HIKVISION DS-K1T341CMF Specifications

General IconGeneral
TypeFace recognition terminal
Product colorBlack, Silver
Cards capacity3000 cards
Event capacity150000
Access code reader-
Authentication typeAccess chip/card, Face recognition
Face recognition distance0 - 2 m
Face recognition duration0.2 s
Access chip/card reader typeContact
International Protection (IP) codeIP65
Operating system installedLinux
Screen shapeFlat
Display diagonal4.3 \
Maximum resolution272 x 480 pixels
Touchscreen technologyCapacitive
Total megapixels2 MP
Ethernet LAN data rates10, 100 Mbit/s
Power consumption (typical)10 W
Operating temperature (T-T)-30 - 60 °C
