HIKVISION DS-K1T501SF Manual

DS-K1T501SF call 2
nd
indoor station and Hik connect
A: Check the call forward time whether it is 0s or not. Make sure it
is 0s.

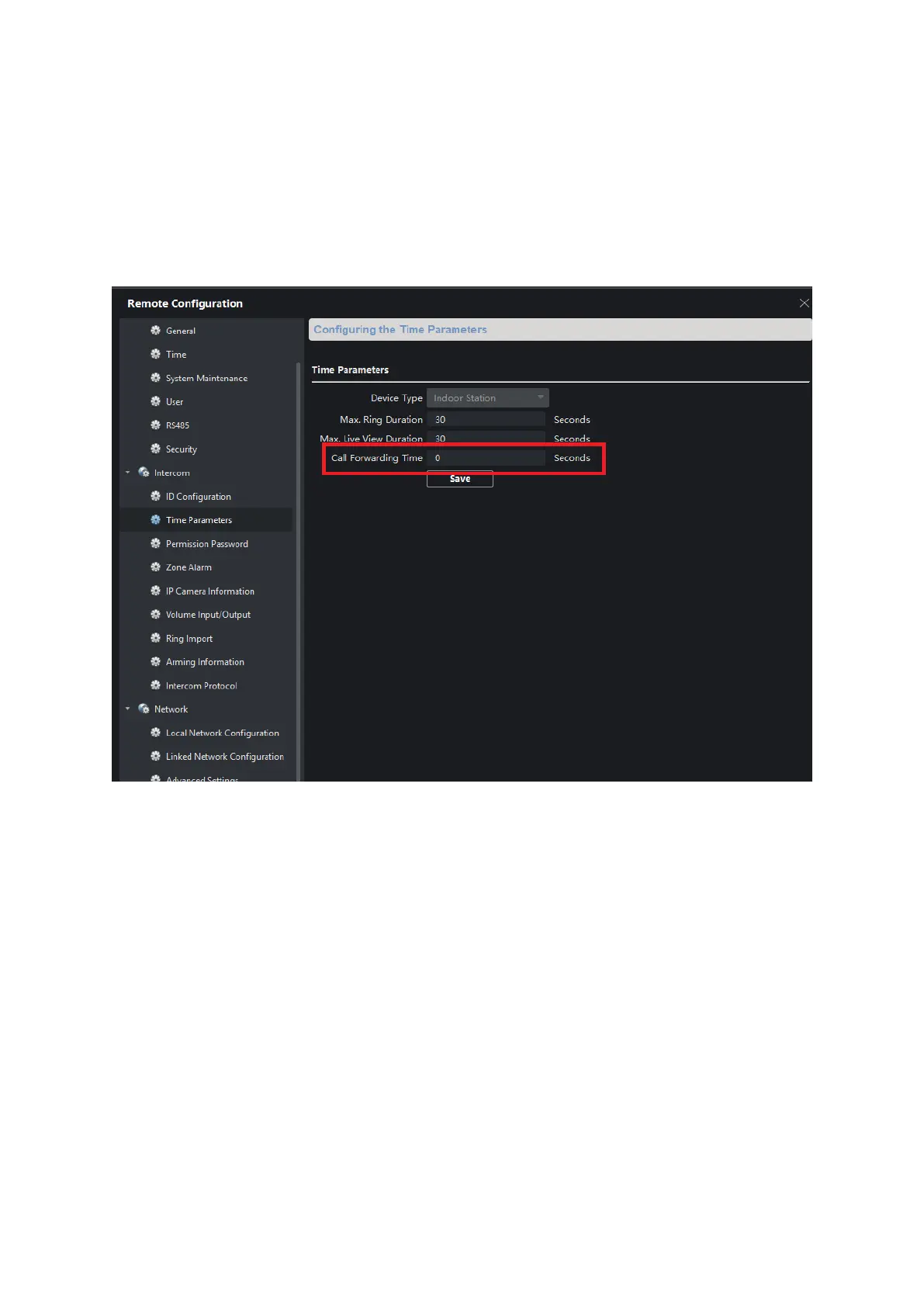

Remote comfiguration on indoor station, select Time Parameters
and change the Call Forwarding Time to 0s.
Q3: when press the finger on DS-K1T501SF , it will not call indoor
station directly when can’t recognize the finger.
A : This function is disabled by default.
Go to the 4200 Access control Module and Select Device
parameters ->Door 1 and then click the Advanced.
After clicking, you will see the image 2.
Enable the function which is highlighted , after this, when press the
finger when can’t be recognized , it will call indoor station.

HIKVISION DS-K1T501SF Specifications

General

Type	Basic access control reader
Product color	Gray
Cards capacity	50000 cards
Housing material	Metal
Keypad integrated	No
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Face recognition
Transaction capacity	200000
Fingerprint sensor type	Optical
Identification (1:N) time	1.5 s
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Access chip/card reader type	Contactless
International Protection (IP) code	IP65
DC current (max)	600 A
DC voltage range	12 V
Total megapixels	2 MP
Front camera type	Single camera
PC connected	-
RS-485 ports	1
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	218 mm
Width	78 mm
Height	41 mm
