HIKVISION DS-K2802 User Manual

Access Control Terminal·User Manual
84
card according to the configured swiping card route. And only one person could pass the access
control point after swiping the card.

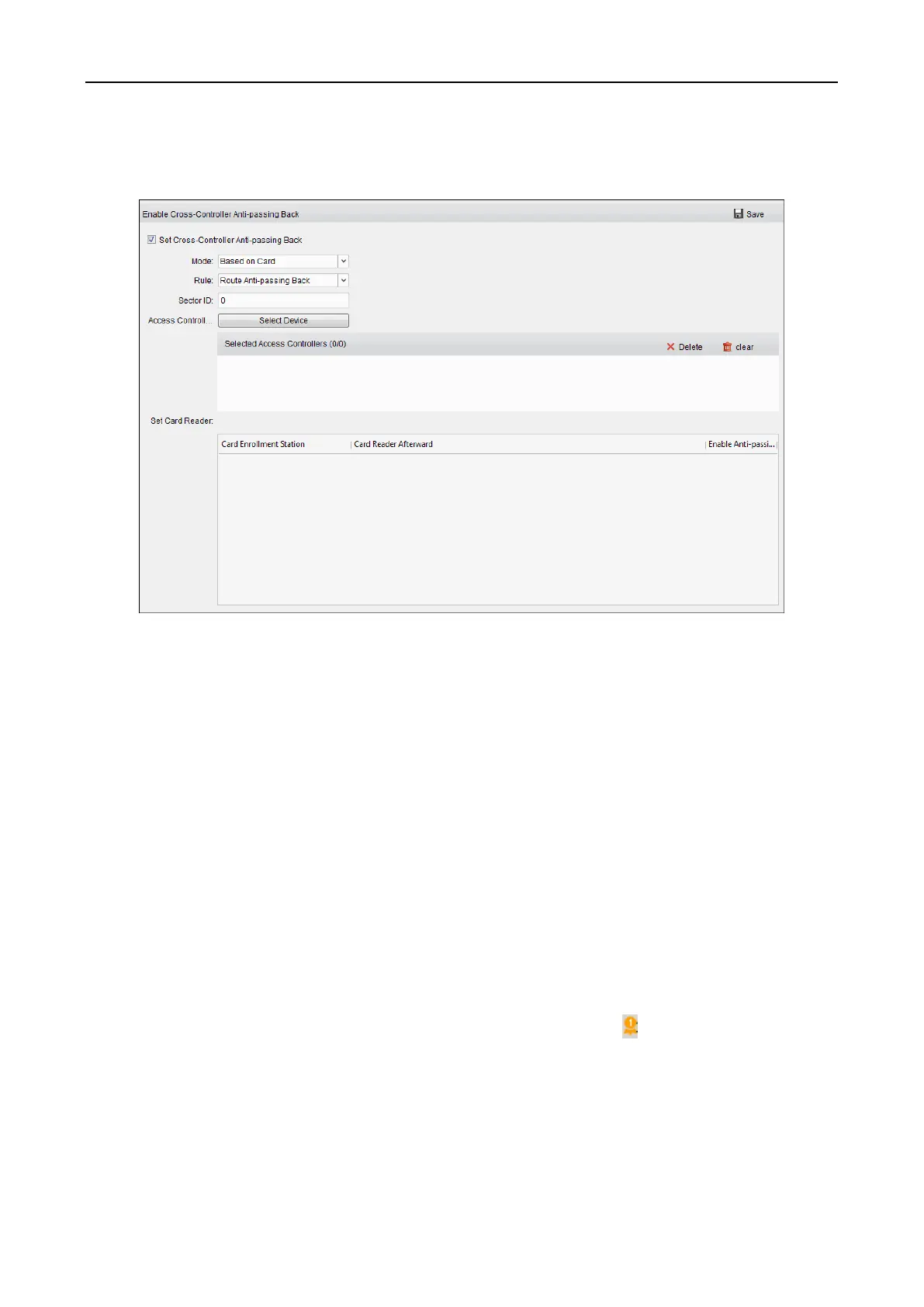

Click Cross-Controller Anti-passing Back to enter the Cross-Controller Anti-passing Back tab.
Setting Route Anti-passing Back
Purpose:
The route anti-passing back depends on the card swiping route. You should set the first card reader
and the card readers afterwards.
Steps:
1. Check the Enable Cross-Controller Anti-passing Back checkbox to enable the function.
2. Set the anti-passing back parameters.
 Based on Card
Note: The system will judge the anti-passing back according to the entrance and exit
records on the card.
1) Select Based on Card as the anti-passing back mode in the drop-down list.
2) Select Route Anti-passing Back as the rule.
3) Set the sector ID.
4) Click Select Device to select a device in the pop-up window for anti-passing back
authentication.
5) In the Set Card Reader area, click the icon on the left of the card enrollment station
column to select the first card reader. The icon will turn to .
6) Click the card reader afterward input field to select the card readers afterward in the
pop-up window.
7) Check the checkbox in the Enable Anti-passing Back column to enable the anti-passing
back function.

HIKVISION DS-K2802 Specifications

General

Product type	Access controller
Certification	CE, FCC
Compatibility	Wiegand
Mounting type	Wall
Product color	Black
Brand compatibility	Hikvision
Operating temperature (T-T)	-20 - 65 °C
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	285 mm
Width	237 mm
Height	69 mm
