2 Appearance Description
2.1 Indoor Station

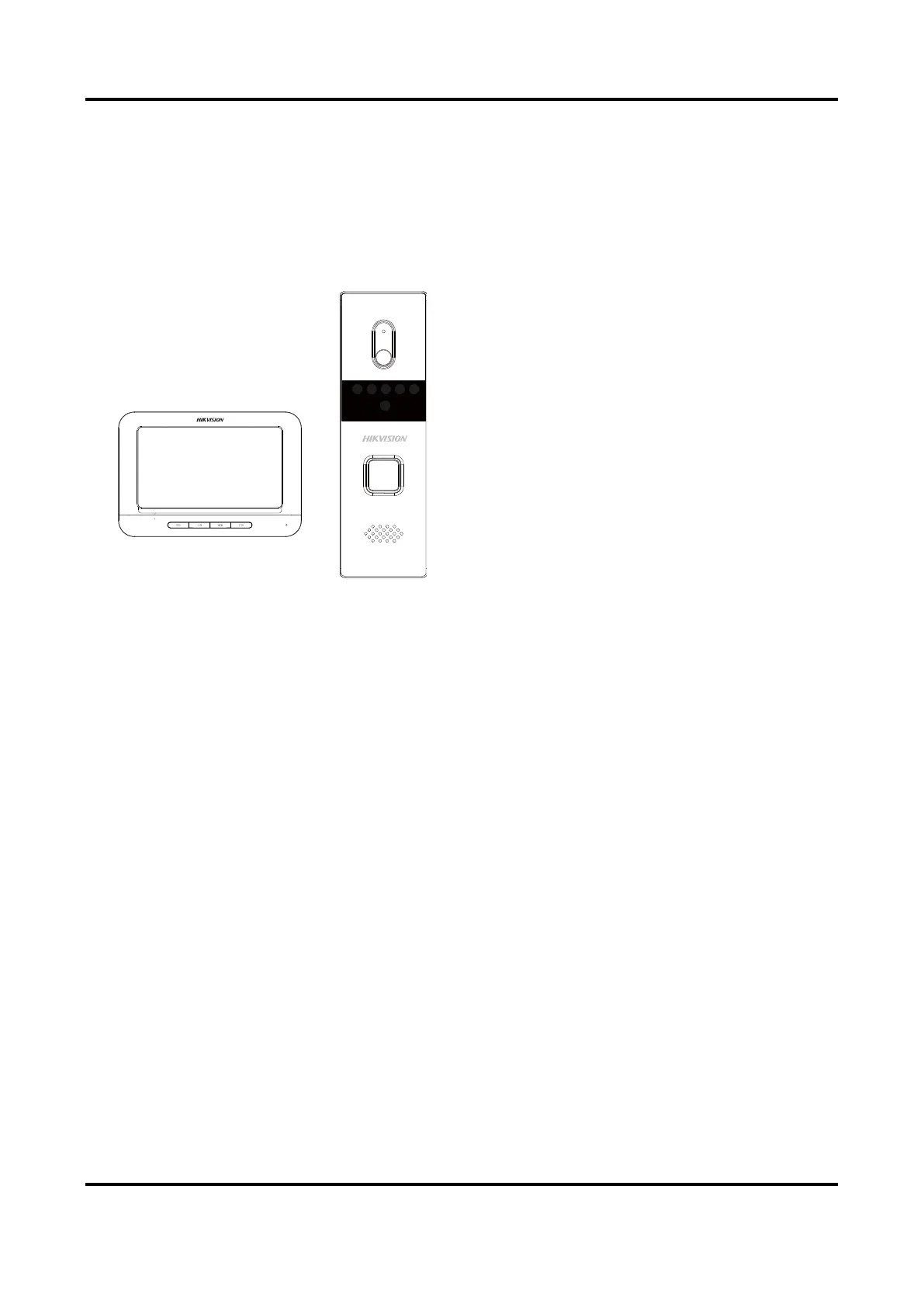

Figure 2-1 Indoor Station Appearance
Table 2-1 Components Description
No.
Description
1
Power Supply Indicator
2
Call Accept/Decline Key
3
Unlock Key
4
Live View Key
5
Switch Key
6
LCD Screen
7
Microphone
8
Terminals and Interfaces
9
Loudspeaker
10
Volume Control Knob
2.2 Door Station
Figure 2-2 Door Station Appearance
Table 2-2 Components Description
No.
Description
1
Microphone
2
Built-in Camera
3
IR Supplement Lights
4
Photoresistor
5
Call Button
6
Loudspeaker
