4.
Congure the indoor staon.
1) Select Device Type as Indoor Staon or Indoor Extension.
2) Set Floor No..
3) Set Room No..
4) Congure advanced sengs. Set Comminity No., Building No. and Unit No.
5) Set
Registraon Password.
6) Tap Next.

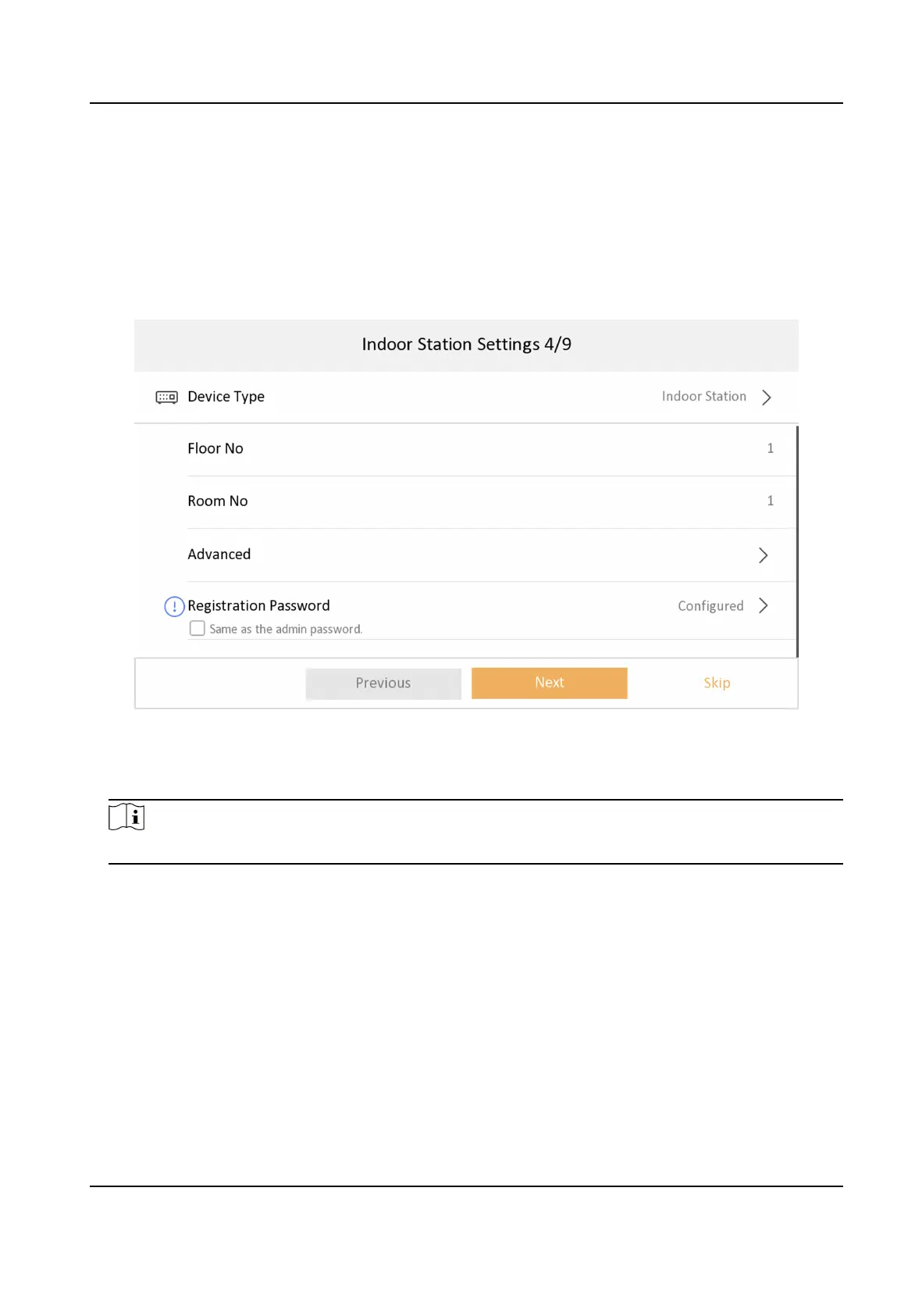

Figure 3-11 Indoor Staon Sengs
5.
Enable the Wi-Fi funcon. Select a Wi-Fi from the list and enter the Wi-Fi's password to get
connected. Tap Next.
Note
The device should support Wi-Fi.
Network Indoor Staon Conguraon Guide
11

Other manuals for HIKVISION DS-KH6320-TE1

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-KH6320-TE1 and is the answer not in the manual?

HIKVISION DS-KH6320-TE1 Specifications

General IconGeneral
Display diagonal7 \
Touchscreen typeCapacitive
Display resolution1024 x 600 pixels
Display technologyLCD/TFT
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size32 GB
Product colorBlack, Grey
Networking standardsIEEE 802.3af
Ethernet LAN data rates10, 100 Mbit/s
Ethernet interface typeFast Ethernet
Ethernet LAN (RJ-45) ports1
Supported network protocolsTCP/IP, SIP, RTSP
Video codecsG.711u
Connectivity technologyWired
Maximum number of cameras supported-
Operating system installedLinux
Power consumption (typical)6 W
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Harmonized System (HS) code85176920
Weight and Dimensions IconWeight and Dimensions
Depth15.1 mm
Width200 mm
Height140 mm
