HIKVISION DS-KH6320-TE1 Configuration Guide

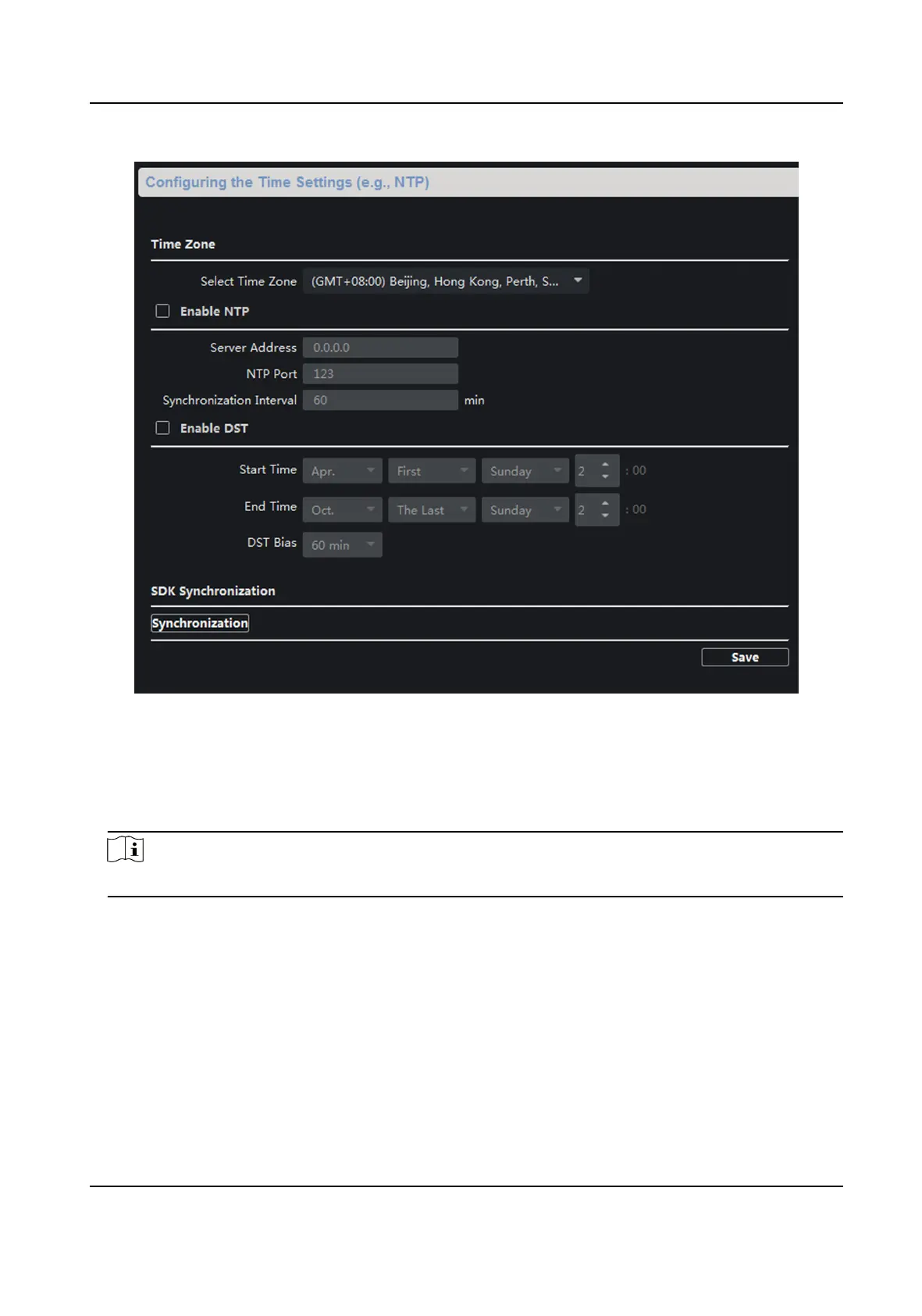

Figure 4-4 Time Sengs Page
Select Time Zone, Enable NTP, Enable DST, or SDK Synchronizaon. Click Save to save the me
sengs.
●
Time Zone: Select a me zone from the drop-down list menu.
●
NTP: Click Enable NTP, and enter the server address, NTP port, and
synchronizaon interval.
Note
The default port No. is 123.
●
DST: Click Enable DST, and set the start
me, end me, and bias.
●
SDK Synchronizaon: Click Synchronizaon, and the system will synchronize the data to the SDK.
System Maintenance
Click
System Maintenance to enter the page.
Network Indoor Staon Conguraon Guide
46

HIKVISION DS-KH6320-TE1 Specifications

General

Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Product color	Black, Grey
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, SIP, RTSP
Video codecs	G.711u
Connectivity technology	Wired
Maximum number of cameras supported	-
Operating system installed	Linux
Power consumption (typical)	6 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176920

Weight and Dimensions

Depth	15.1 mm
Width	200 mm
Height	140 mm
