HIKVISION DS-KH6320-TE1 Configuration Guide

RS-485
Click RS485 to enter the RS-485 sengs page. You can view and edit the RS-485 parameters of the
device.

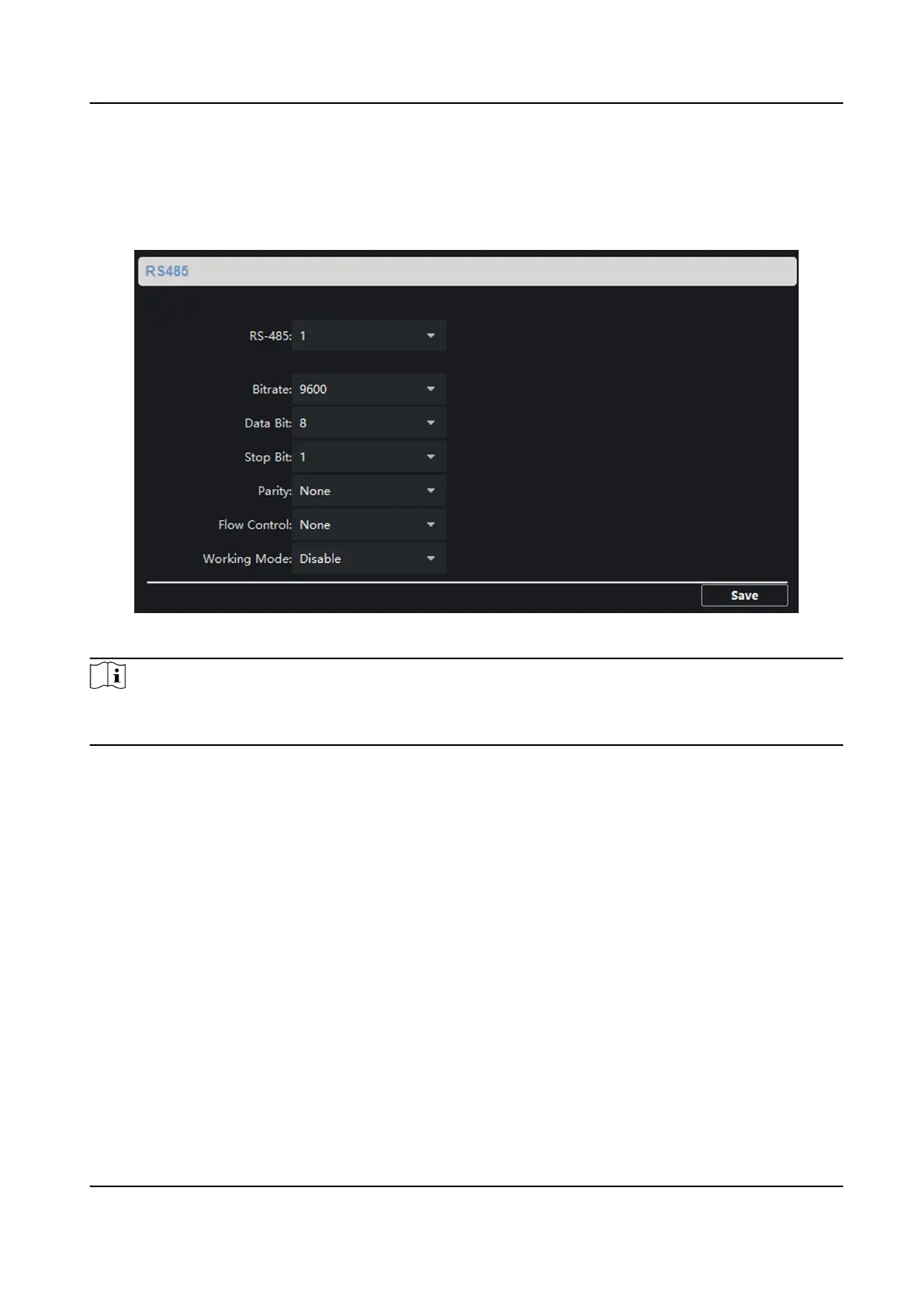

Figure 4-7 RS-485 Sengs
Note
For indoor staon and main staon, there are 3 choices for the working mode: transparent
channel, disable, and custom.
Security
Click Security to enter the page. You can enable SSH or enable HTTPS on this page.
Click Save aer conguraon.
Network Indoor Staon Conguraon Guide
49

HIKVISION DS-KH6320-TE1 Specifications

General

Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Product color	Black, Grey
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, SIP, RTSP
Video codecs	G.711u
Connectivity technology	Wired
Maximum number of cameras supported	-
Operating system installed	Linux
Power consumption (typical)	6 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176920

Weight and Dimensions

Depth	15.1 mm
Width	200 mm
Height	140 mm
