HIKVISION DS-KH6320-TE1 Configuration Guide

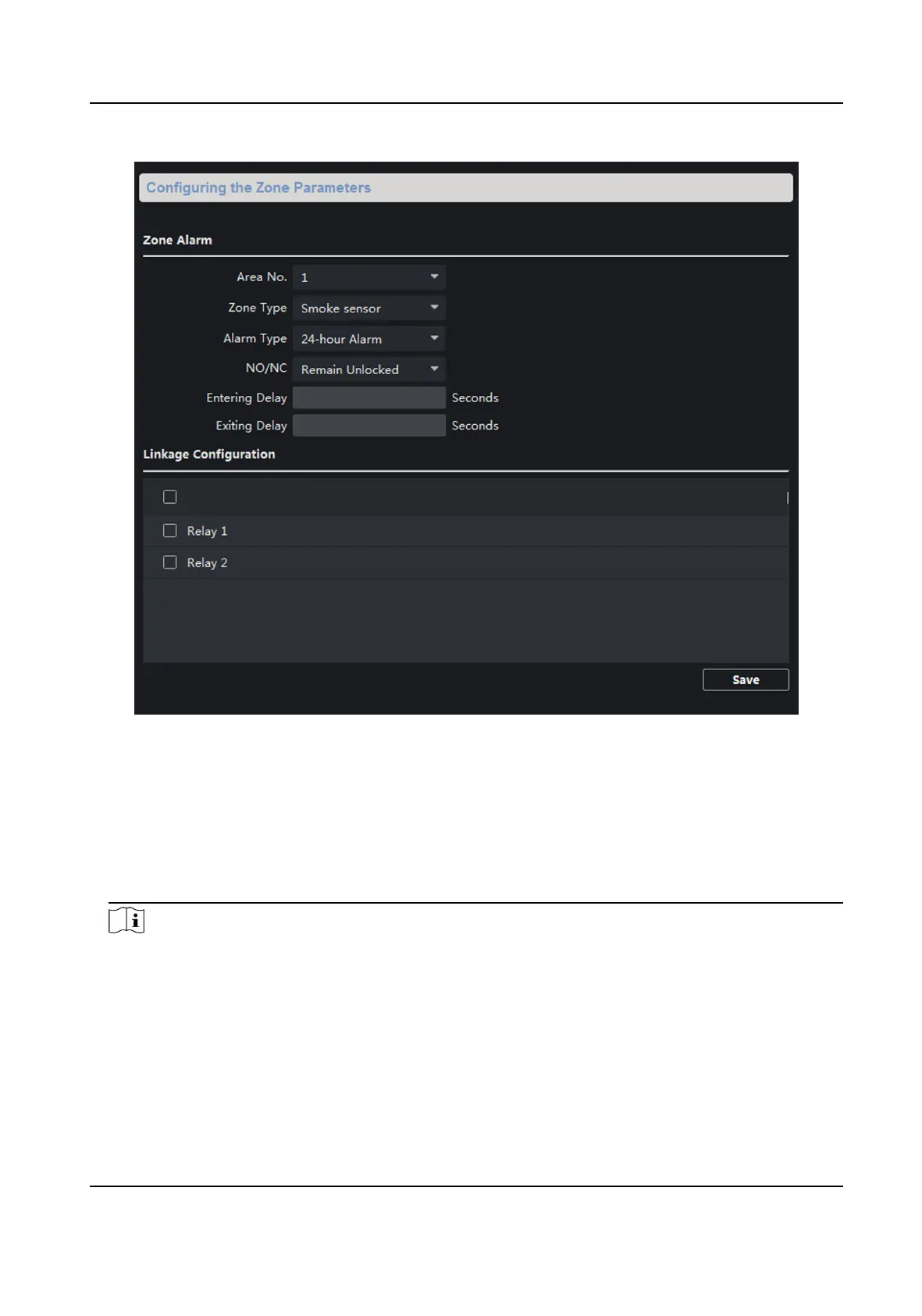

Figure 4-11 Zone Alarm
2.
Select Area No.
3.
Select Zone Type from the drop-down list.
4.
Select Alarm Type from the drop-down list.
5.
Set the NO/NC status.
6.
Set Entering Delay and
Exing Delay.
7.
Click Save to enable zone sengs.
Note
●
7 zone types are supported: Emergency Switch, Door Magnec Switch, Smoke Detector, Acve
IR Detector, Passive IR Detector, Combusble Gas Detector, and DoorBell Switch.
●
3 types of alarm mode are supported: Instant Alarm, 24H Alarm, and Delay Alarm.
●
When the zone type is set to be Instant Alarm, only under arming mode, the indoor
staon
will receive alarm message when the detector is triggered. Under disarming mode, it will not
receive alarm message when the detector is triggered.
Network Indoor Staon Conguraon Guide
53

HIKVISION DS-KH6320-TE1 Specifications

General

Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Product color	Black, Grey
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, SIP, RTSP
Video codecs	G.711u
Connectivity technology	Wired
Maximum number of cameras supported	-
Operating system installed	Linux
Power consumption (typical)	6 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176920

Weight and Dimensions

Depth	15.1 mm
Width	200 mm
Height	140 mm
