HIKVISION DS-KH6320-WTE1-W

Before You Start
Note
•
Make sure the device in the package is in good condion and all the assembly
parts are included.
•
The power supply the indoor staon supports is 12 VDC. Please make sure your
power supply matches your indoor staon.
•
Make sure all the related equipment is power-o during the installaon.
•
Check the product
specicaon for the installaon environment.
Steps
1.
Insert 2 expension tubes into the wall.
2.
Fix the wall mounng plate to the juncon box with 2 screws.
3.
Hook the indoor staon to the wall mounng plate ghtly by inserng the plate
hooks into the slots on the rear panel of the indoor staon, during which the
lock catch will be locked
automacally.

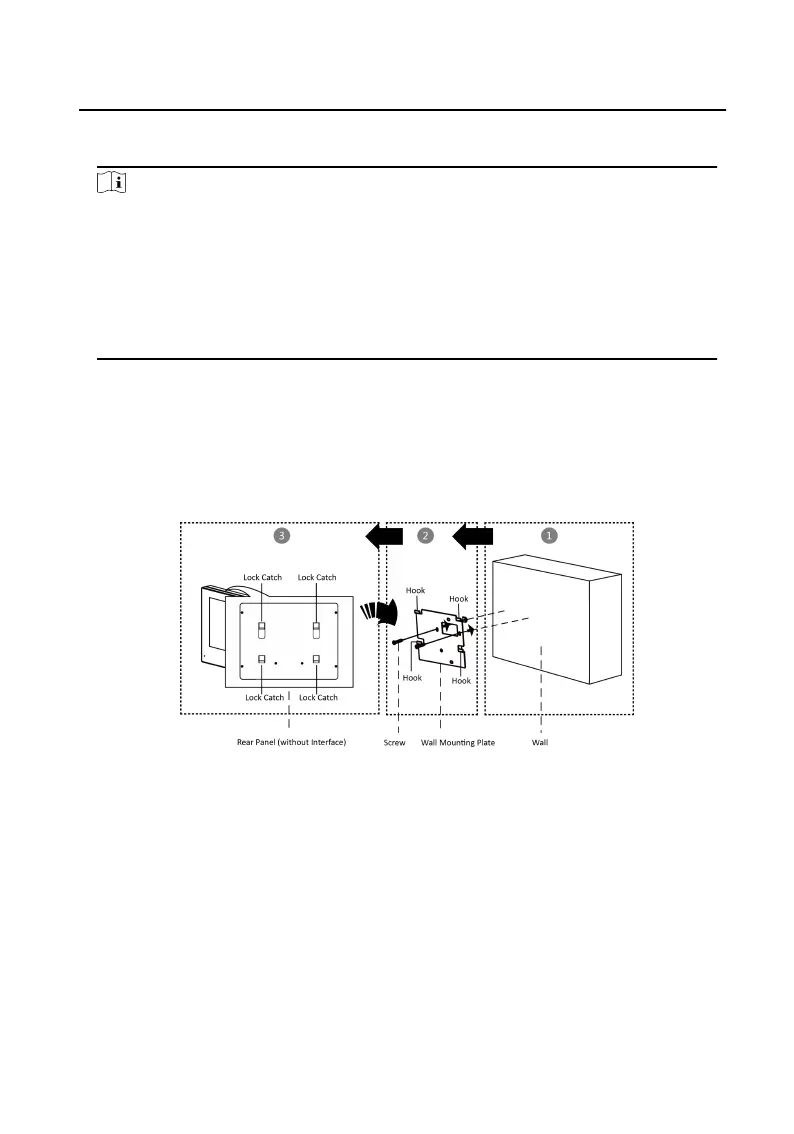

Figure 4-3 Wall Mounng without Juncon Box
Network Indoor Staon Installaon Guide
