HIKVISION DS-KH6320-WTE2 Installation Guide

2 Wiring Descripon
Wire the devices with power supply cables as picture shown below.
Door staon should be connected to CH6 of the video/audio distributor with two-
wire cables.
Indoor Staon should be connected to any terminal of CH1 to CH5 of the video/
audio distributor with two-wire cables.
Cauon
Make sure all the related equipment is power-o during the installaon.

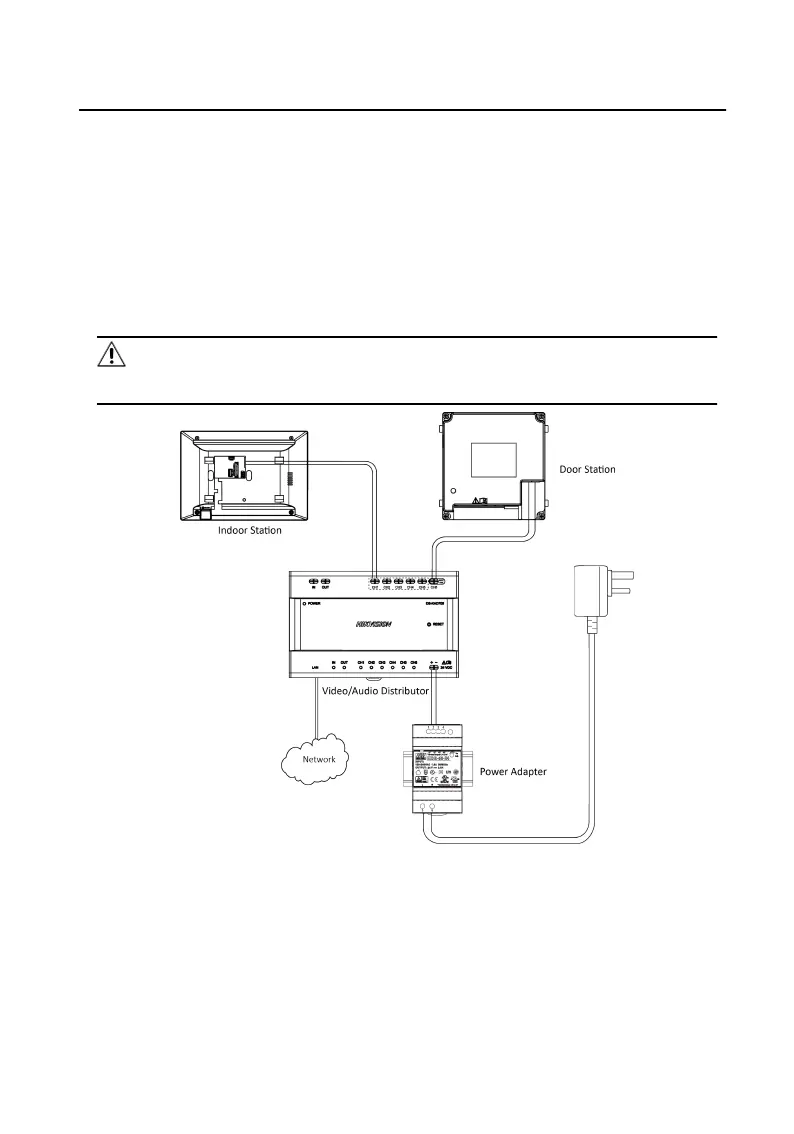

Figure 2-1 Wiring Descripon
Video Audio Distributor
Installaon Guide
2

HIKVISION DS-KH6320-WTE2 Specifications

General

Color	Yes
Speakerphone	-
Connectivity technology	Wireless
Voice codecs	G.711u
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Product color	Black, Grey
Operating system installed	Linux
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Supported network protocols	TCP/IP, SIP, RTSP
Outdoor unit included	No
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	6 W

Weight and Dimensions

Depth	15.1 mm
Width	200 mm
Height	140 mm
