Video Intercom Indoor Station·User Manual
30
7. Click the Set button to accomplish the settings of indoor station.

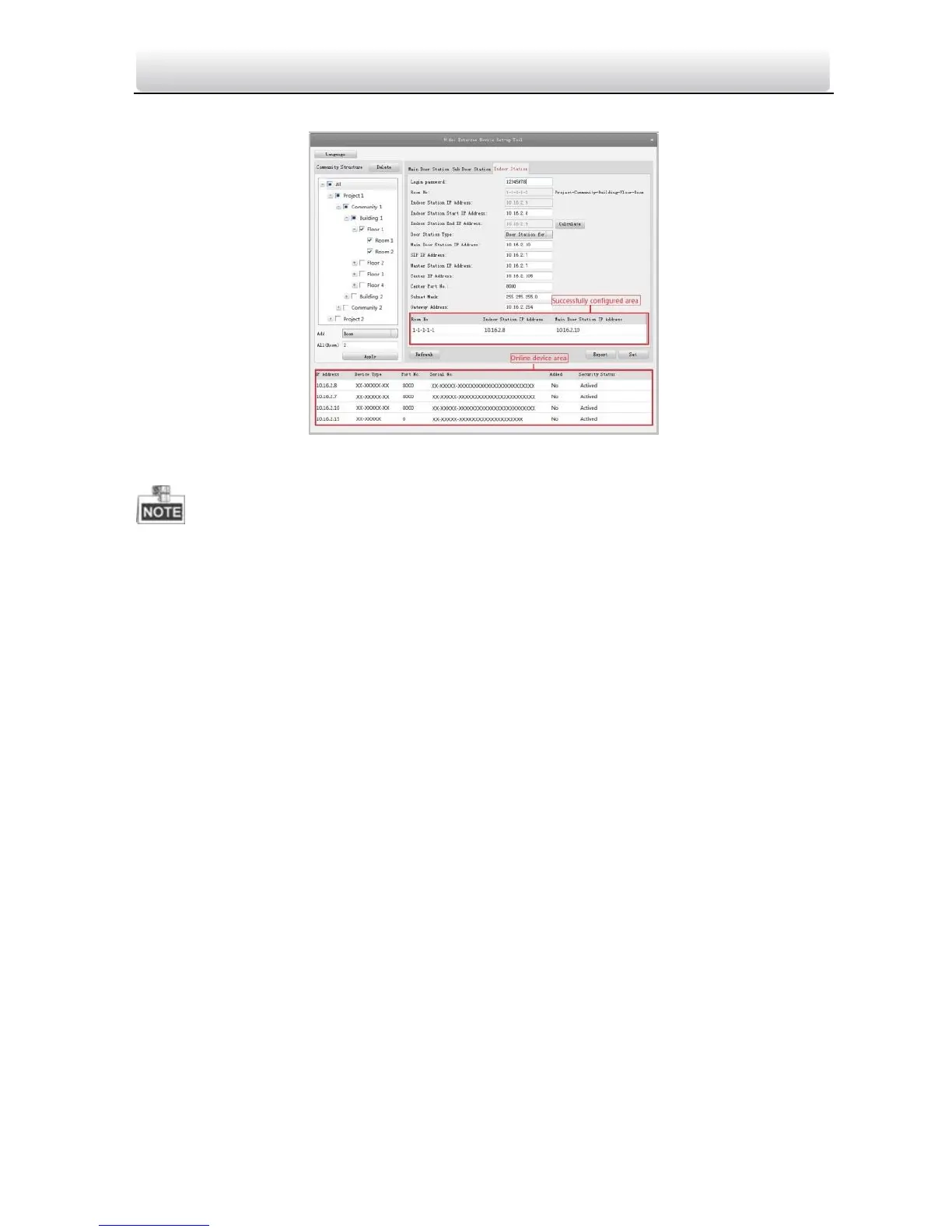

Figure 7-8 Indoor Station Settings Interface
 You can select one project or multiple projects; one community or multiple
communities; one building or multiple buildings.
 The Indoor Station IP Address is usually set to be the same as Start IP Address of
indoor station.
 Once the indoor station has been successfully configured, the indoor station
information will be listed in the successfully-configured area, and the room number
and the indoor station IP address will automatically switch to the next one. Thus, the
next indoor station can be easily configured only by clicking the Set button.
 If the indoor station is not activated, create a login password and enter it in the
textbox to activate the device.
 If the indoor station is not activated, the device is configured and activated
simultaneously by clicking the Set button.
 The Indoor Station IP Address is usually set to be the same as Start IP Address of
indoor station.
 When the device is successfully configured, it prompts the note: Configuring indoor
station parameters succeeded.

HIKVISION DS-KH8300-T Specifications

General

Model	DS-KH8300-T
Category	Intercom System
Display	LCD
Operation Method	Touch screen
Audio Input	Built-in microphone
Audio Output	Built-in speaker
Audio Compression Rate	64 kbps
Operating System	Embedded Linux
Ethernet	10/100 Mbps
Alarm Input	1 channel
Alarm Output	1 channel
RS-485	Yes
Power Supply	DC 12V
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
Display Screen	7-inch color display
Resolution	1024 x 600
Audio Compression Standard	G.711
Connectivity	Ethernet, Wi-Fi (optional)
Network Protocol	TCP/IP
TF Card	Support
