2. Paste the drill template (supplied) to the place where
you want to install the camera.
3. Drill the screw holes, and the cable hole (optional) in
the ceiling/wall according to the drill template.

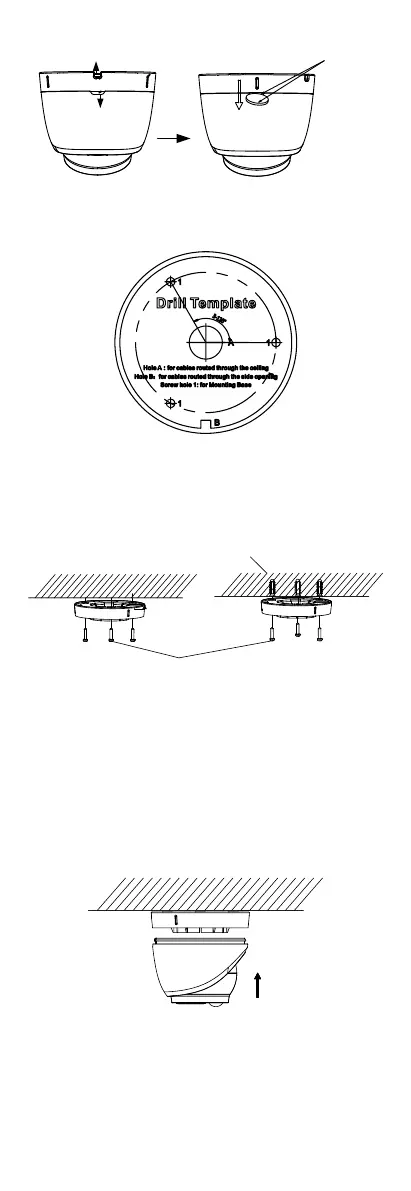

Figure 2-1 Drill Template
Note:
Drill the cable hole, when adopting the ceiling outlet
to route the cable
4. Attach the mounting base to the ceiling/wall, and
secure them with supplied screws.
Figure 2-2 Attach the Mounting Base to the Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall/ceiling, expansion bolts are required
to install the camera. For wooden wall/ceiling, self-
tapping screws are required.
5. Route the cables through the cable hole, or the side
opening.
6. Align the camera with the mounting base, and secure
the camera on the mounting base.
Figure 2-3 Secure the Camera with Mounting Base
7. Connect the corresponding cables, such as power
cord, and video cable.
8. Power on the camera to check whether the image on
the monitor is gotten from the optimum angle. If not,
adjust the camera according to the figure below to get
an optimum angle.
To Next Page
