HIKVISION PIR Series User Manual

1 Introduction
1.1 Product Features
The main features are as follows:
 High performance CMOS sensor
 IR cut filter with auto switch
 OSD menu with configurable parameters
 Auto white balance
 Internal synchronization
 SMART IR mode
 Visible alarm
 PIR detection
 3-axis adjustment
 Alarm linkage with DVR

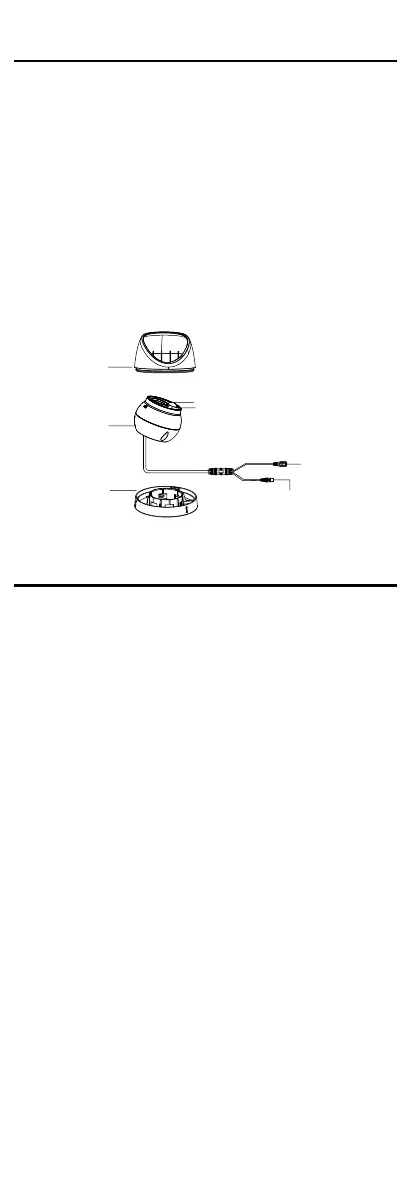

1.2 Overview
DC12VIN
Enclosure
Main Body
Mounting
Base
Power Cord
12 VDC
Video Cable (TVI)
White Light Source
PIR
Figure 1-1 Camera Overview
2 Installation
Before you start:
 Make sure that the device in the package is in good
condition and all the assembly parts are included.
 Make sure that all the related equipment is power-off
during the installation.
 Check the specification of the products for the
installation environment.
 Check whether the power supply is matched with your
required output to avoid damage.
 Make sure the wall is strong enough to withstand three
times the weight of the camera, and the mount.
 If the wall is cement, insert expansion screws before
installing the camera. If the wall is wooden, use self-
tapping screw to secure the camera.
 If the product does not function properly, contact your
dealer or the nearest service center. Do NOT
disassemble the camera for repair or maintenance by
yourself.
2.1 Ceiling/Wall Mounting without Junction Box
Steps:
1. Disassemble the camera.
1). Rotate the camera to align the notch to one of the
marks.
2). Pry the mounting base to remove the mounting base
with the camera body with a flat object, e.g., a coin.
