3 Description

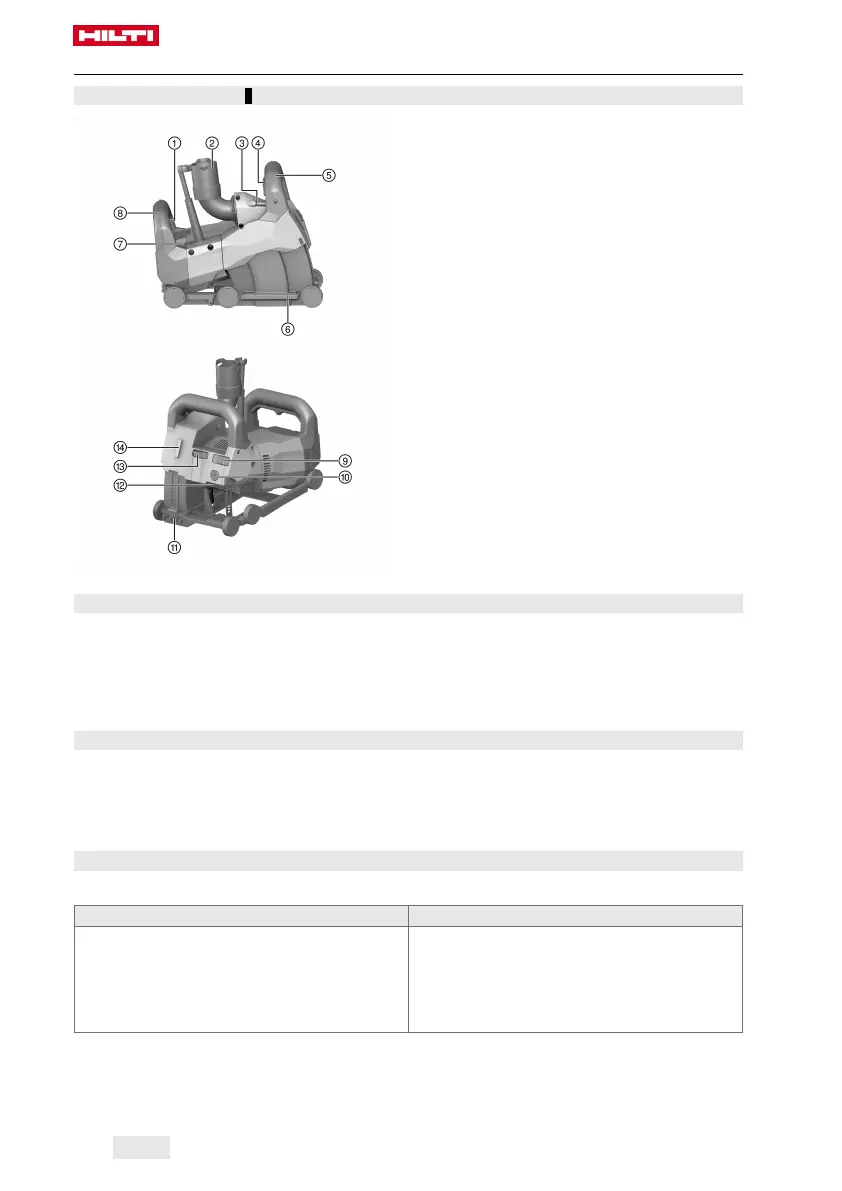

3.1 Product overview 1
@
On/off switch
;
Vacuum cleaner hose connector
=
Tubular bubble level
%
Plunge movement lockbutton
&
Front grip
(
Carriage
)
Service indicator
+
Rear grip
§
Locking switch for plunge depth
/
Carriage release button
:
Cutting line indicator
∙
Spindle lock button
$
Slitting-depth adjusting knob
£
Interface for DCH-SL LG line laser
3.2 Intended use
The product described is an electrically powered slitting tool for professional use.
It is designed for use with diamond slitting discs.
The machine is designed to be used with a suitable vacuum cleaner.
Optionally, the slitting tool can be combined with a line laser for projecting the line of cut on to the surface
ahead.
3.3 Possible misuse
Do not use the product in environments where there is a risk of explosion.
Use of the product in a damp or wet environment is not permissible.
Do not use the product to work on hazardous or flammable materials (e.g. asbestos, magnesium, wood).
Do not tamper with or attempt to make alterations to the device.
3.4 Service indicator
The slitting tool has an LED service indicator.
Status Meaning
The service indicator flashes red. The motor has overheated. Allow the power tool to
run under no load so that it can cool down quickly.
When the power tool has cooled down the ser-
vice indicator goes out and the motor shuts down.
Restart the power tool by switching it off and then
on again.
