*2208336*
2208336 English 7
Status Meaning
The service indicator lights up when the power tool
is in working order.
• The carbon brush wear limit has almost been
reached. You can continue working for a number
of hours after the indicator first shows, before
automatic cut-out is activated.
• The carbon brushes have been changed and
must be run in by letting the machine run under
no load for at least 1 minute without interruption,
in order to achieve the optimum service life.
The service indicator lights up when the power tool
is not in working order.
• The carbon brushes are worn and have to be
replaced.
• The device is defective.
3.5 Items supplied
Slitting tool, pin wrench, slitting discs, break-out tool, operating instructions.
Other system products approved for use with this product can be found at your local Hilti Store or at:
www.hilti.group
4 Technical data
4.1 Slitting tool
For rated voltage, rated current and/or power, line frequency and rated speed, refer to the country-
specific type identification plate.
Weight
16.8 lb
(7.6 kg)
Arbor diameter, disc mount
0.87 in
(22.2 mm)
Thickness of the diamond slitting disc
≤ 0.1 in
(≤ 3 mm)
Diameter of the diamond slitting disc
≤ 5.9 in
(≤ 150 mm)

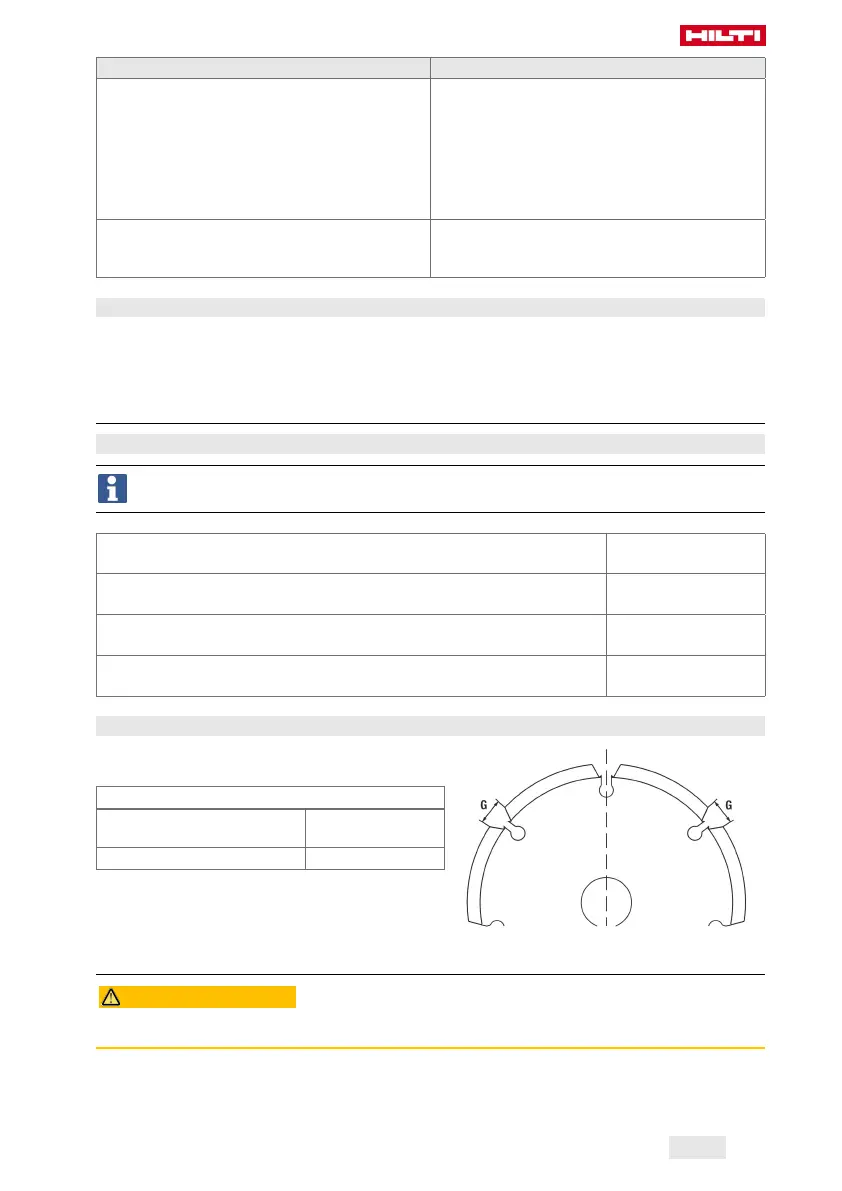

4.2 Dimensions and format of suitable diamond slitting discs
Diamond slitting discs must meet the following require-
ments in terms of dimensions and format.
Technical data
Slot width between segments
(G)
≤ 15 mm
Cutting angle Negative
5 Preparations at the workplace
CAUTION
Risk of injury! Inadvertent starting of the product.
▶ Unplug the supply cord before making adjustments to the power tool or before changing accessories.
Observe the safety instructions and warnings in this documentation and on the product.
