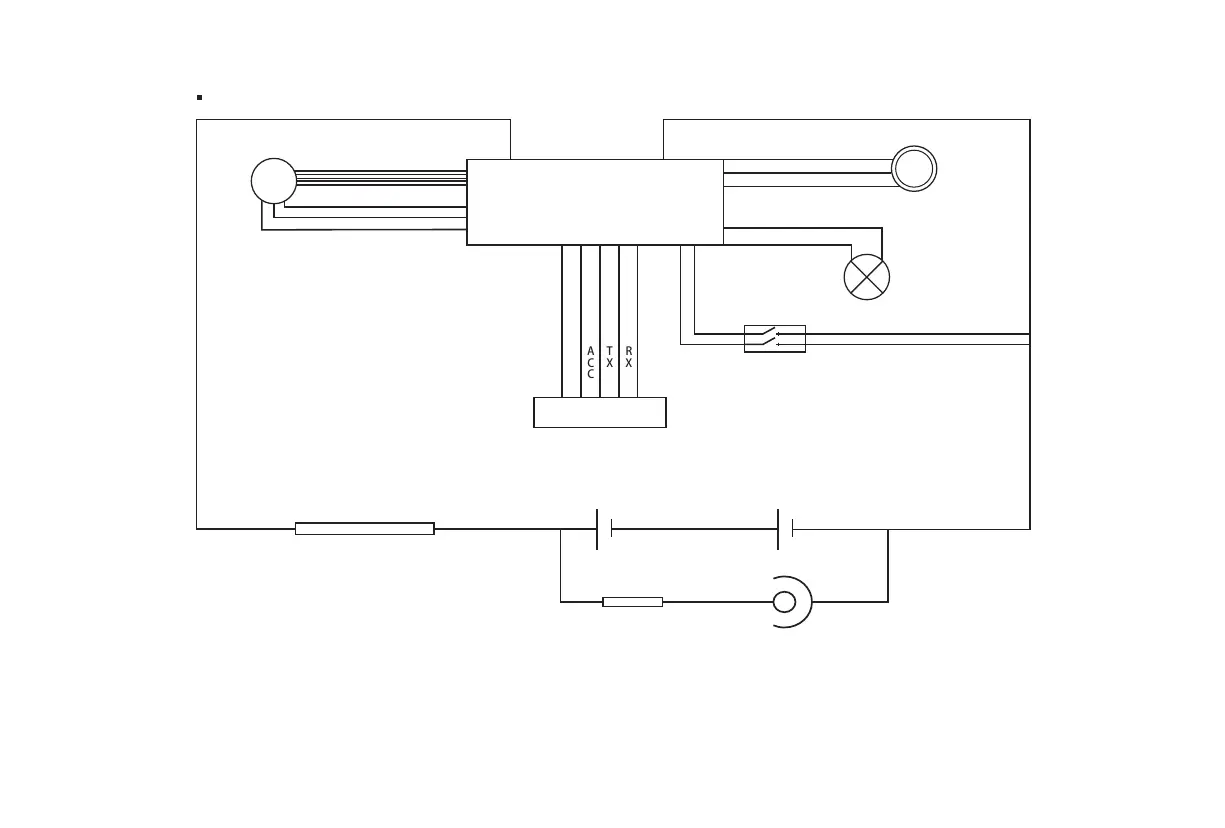

Electrical Schematic
M
Motor
-
25A fuse Battery
Battery charging port
10A fuse
Negative
Negative
Booster signal
+5V
Headlight signal
+
Controller
Booster sensor
Headlight
Brake crank
Instrument
ACC
TX
RX
Positive
Negative
Note: to power on, please long press "METER" for 3-5 seconds;
to turn on the headlight, press it again after power-on; to shut it
down, long press it.
* 25A fuse for discharging circuits; * 10A fuse for charging circuits.
Both the discharging and charging circuits are built in the battery compartment.
(1)
The battery life is measured under the condition of running in energy-saving mode with a 70kg load at a
temperature of about 25℃ on a flat road without any wind at a constant speed of 15km/h. While the actual
battery life will vary due to factors such as load, temperature, wind speed, road surface, and operating habits.
