Hinterberg Design Machine quilting frame - POINTER PACKAGE AND TEMPLATE USAGE; Pointer Package Assembly

19
FIG. 3

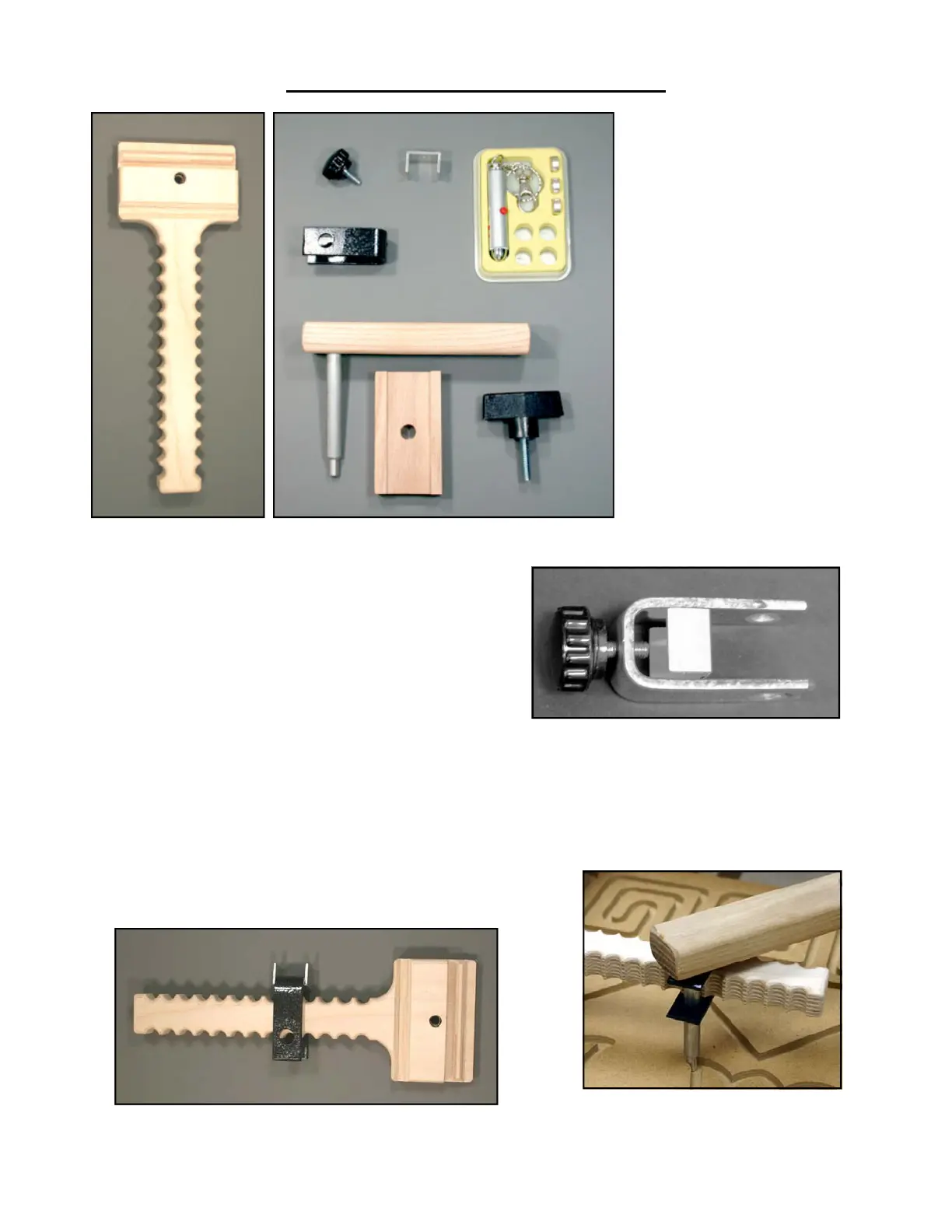

POINTER PACKAGE INSTRUCTIONS
Parts: Part #
A Wood T-support 1201
B Wood gripper 1200
C Wood stylus holder 1202
D Black Bar Knob 3116
E Small black knob 3077
F Laser Pointer 3078
G Metal stylus fastener 3079
H Metal U-shape 3080
C
D
E
G
H
F
B
A
FIG. 1
STEP 2.
Attach Stylus Holder
Slide the stylus fastener (with the u-shaped
piece inside) onto the T-support (See Fig. 2)
and insert the stylus thru the large holes (See
Fig. 3). Tighten the black knob until the stylus
fastener is holding the stylus securely. The
metal U-shaped piece protects the side of the
wood from the end of the knob.
STEP 1.
Assembling Stylus Fastener
Thread the small black knob into the stylus
fastener.
Place the U-shaped metal piece into the stylus
fastener as shown in Fig 1.
FIG. 2
