Installation EAGLE20/30
Release 06 04/2014
 Digital input
 Dimension drawings

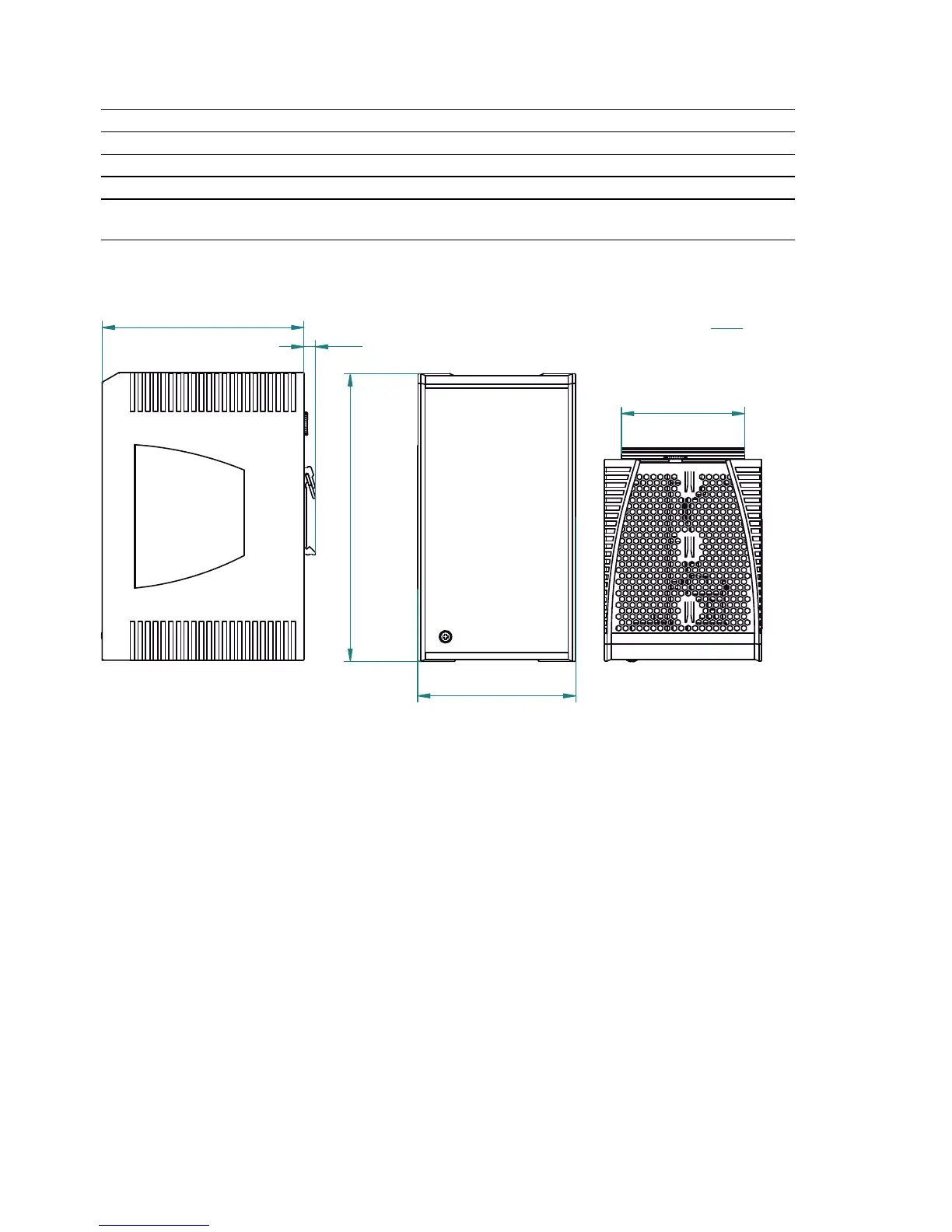

Figure 9: Dimensions of the device variants with operating temperature
characteristic value S. For the characteristic value, cf. “Device name and
product code” on page 16.
Maximum permitted input voltage range −32 V DC … +32 V DC
Input voltage, low level, status "0" −0,3 V DC … +5,0 V DC
Input voltage, high level, status "1" +11 V DC … +30 V DC
Maximum input current at 24 V input voltage 15 mA
Input characteristic according to IEC 61131-2 (current-
consuming)
Type 3
mm
inch
70
2.76
4.52
114,7
6,55
0.26
89,9
3.54
163,6
6.44
