Hirschmann EAGLE30 series - Page 43

Installation EAGLE20/30
Release 06 04/2014
43

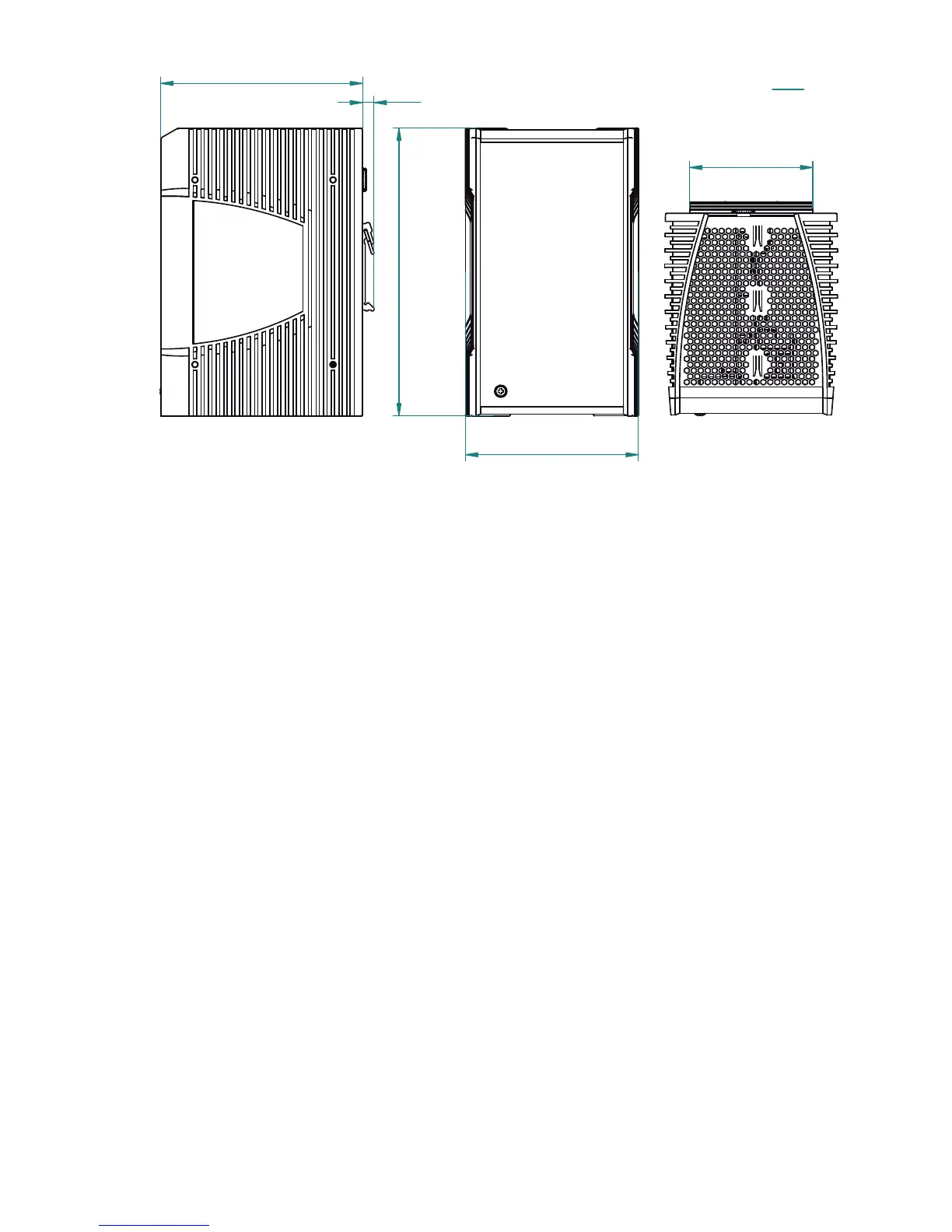

Figure 10: Dimensions of device variants with operating temperature characteristic
value E and T. For the characteristic value, cf. “Device name and product
code” on page 16.
mm
inch
98,29
3.87
163,6
6.44
70
2.76
4.52
114,7
6,55
0.26
