Hisense 40LE45S - Wiring Diagram

- 15 -
LCD TV Service Manual
Hisense Confidential

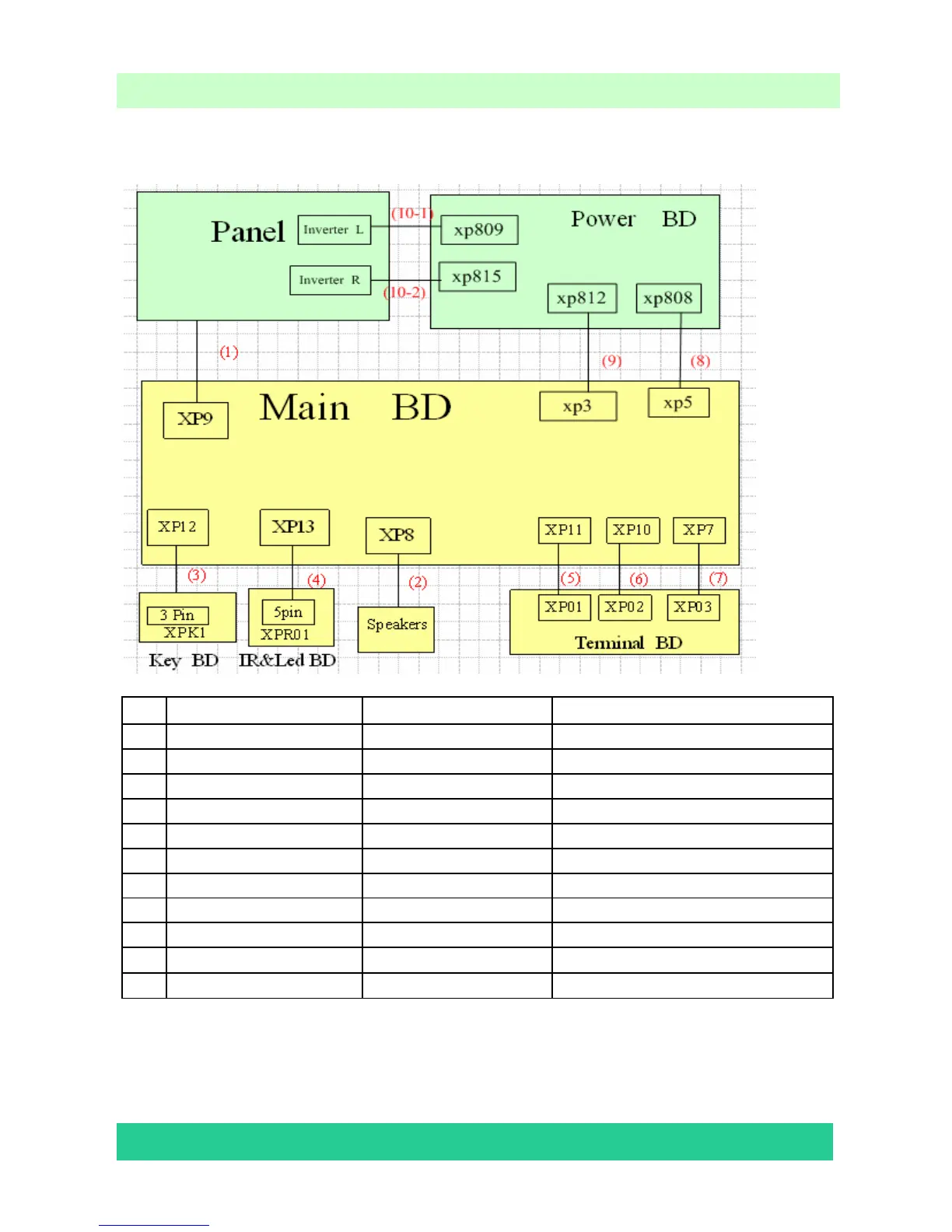

4.2 Wires and Cables Overall Wiring Diagram(s)
No DESCRIPTION SPECIPICATION NOTE
1
LVDS signal HX2-2X20KLB350P-LG\ROH Main BDXP9<-->Panel
2
Audio out put (R/L) TJC3H-4Y-650-900\ROH Main BD XP8<-->Speakers
3
Buttons TJC10T-3Y-900\ROH Main BDXP12<--> Key BD XPK1
4
Led & IR
TJC10T-5Y－900\ROH
Main BD XP13<-->IR &LED BD XPR01
5
AV and S-video signal
HX-2026C550\ROH Main BD XP11<-->AV BD XP01
6
Headphone signal
TJC3T-4Y-400\ROH Main BD XP10<-->AV BD XP02
7
Series upgrade TJC10T-4Y-350\ROH Main BD XP7<-->AV BD XP03
8
Audio Amplifily TJC10T-4Y-250\ROH Power BD XP808<--> Main BD XP5
9
+5V, +12V supply to Main BD TJC10T-14Y-250\ROH Main BD XP3<-->Power BD XP812
10-1
Backlight Power HX-3005B450\ROH Power BD XP809<--> Panel left backlight port
10-2
Backlight Power HX-3004B550\ROH Power BD XP815<--> Panel right backlight port
