3
85" (215.9cm)
1. Place side cushions on the ground and make sure the distance between the two
cushions is 750-850mm.
2. Two people stand on each side of the TV. Hold the side of the TV with one hand
and hold it from the bottom with another hand. Lift and move the TV vertically to the
side cushions. Do not pinch the screen when hold the TV.
3. One person holds the TV from the front side, the other person inserts the TV base
stands into the bottom slots on your TV. Use the screws provided to secure each
base stand tightly.

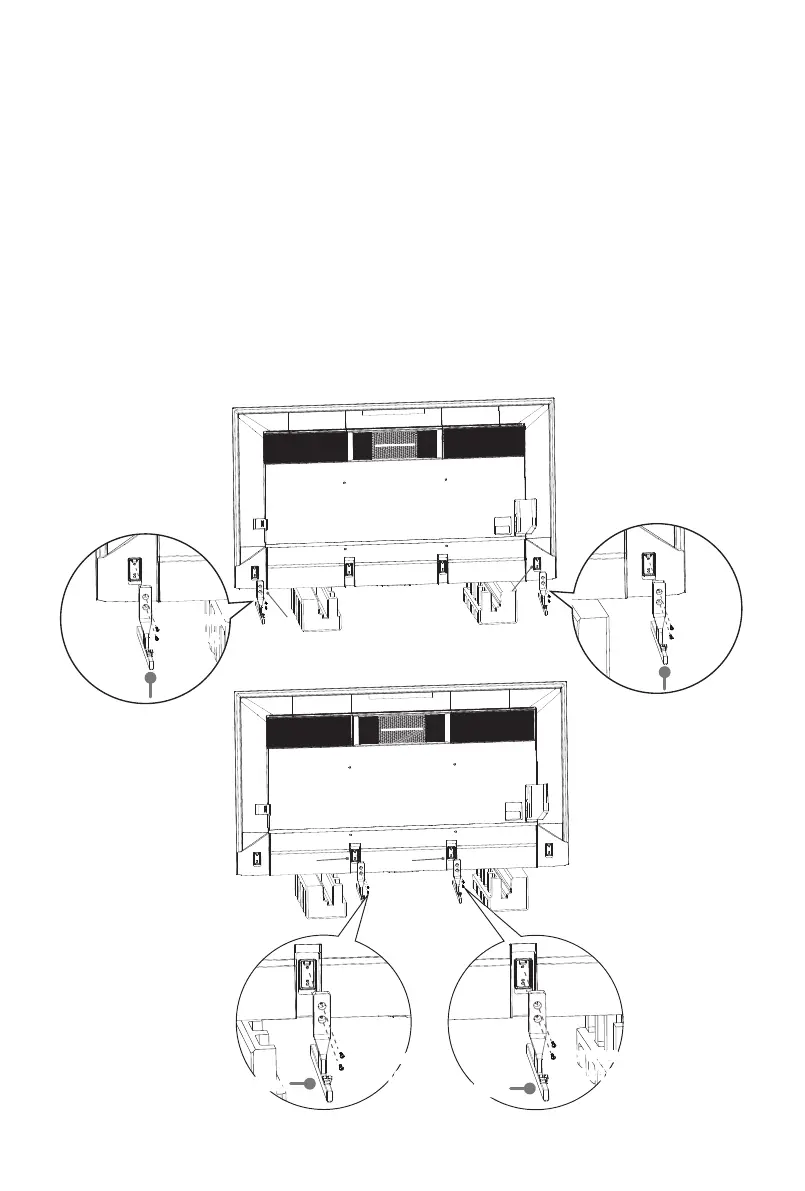

Note: If your table is long enough to place the TV, then insert the base stands into the screw
holes ‘A’ that are shown in the illustration. If your table is NOT long enough, then insert the
base stand into the screw holes ‘B’ that are shown in the illustration. Note that these two
installation methods types cannot be mixed.
Base Stand
Base Stand
M5×16
Screws:
M5×16
Screws:
M5×16
Screws:
M5×16
Screws:
Base Stand
Base Stand
A
B B
A
To Next Page
