5

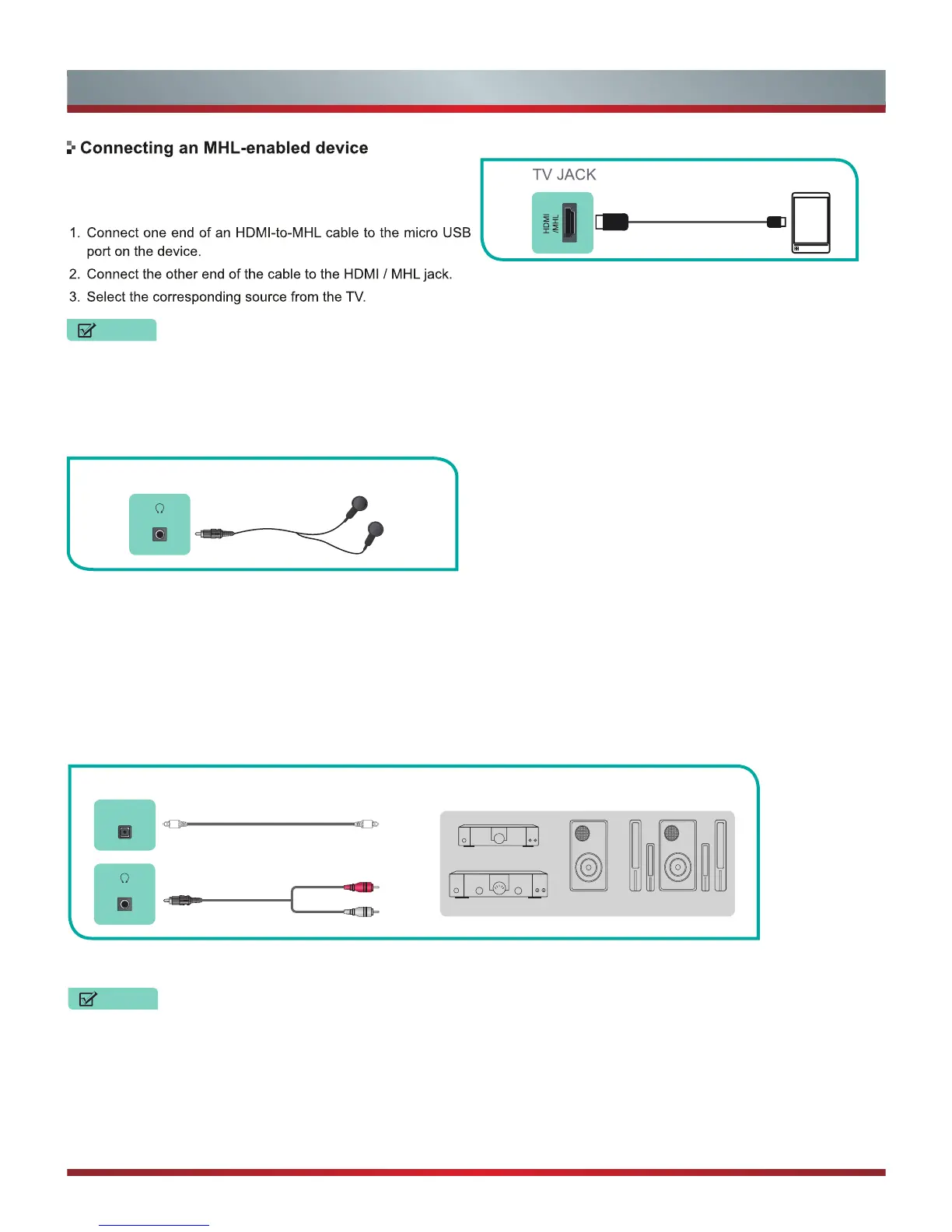

Connecting Devices to your TV
/
AUDIO OUT
EXTERNAL DEVICES
EXTERNAL DEVICES
Powerless
Bass Speaker
Speaker
Audio Amplier
Digital Sound Bar
DIGITAL
AUDIO OUT
/
AUDIO OUT
Connecting speakers (or other audio receivers)
To connect speakers (or other audio receivers) with an audio cable:
Connecting headphones
1. Use an audio cable (not provided) to connect the [
DIGITAL
AUDIO IN
] jack of the audio receiver device to the [
DIGITAL AUDIO
OUT
] jack of the TV. Another option is to use an RCA Y-cable (1/8”-stereo mini to L/R phono) to connect an analog sound
system to the [
AUDIO OUT
] jack of the TV.
2. Plug the connected devices into the main power socket before switching on the TV.
You can connect headphones to the
[AUDIO OUT]
port on your TV. While the headphone is connected, the sound from the built-in
speakers will be disabled.
Figure 12
. Headphones to the TV
Figure 13
. Audio receiver with audio cable
TV JACK
Audio Cable
(not included)
HDMI-to-MHL cable
(not included)
TV JACKS
White(L)
Red(R)
Audio Cable
(not included)
Audio Cable
(not included)
If you prefer to use Audio Return Channel, then follow the steps on the next page under 'Connecting a digital sound bar to
use Audio Return Channel'.
NOTES
NOTE
Figure 11
. MHL-enabled device to the TV
You can connect an MHL-enabled device, such as a cell phone,
and view the screen of your device on the TV.
This feature may be unavailable on some TV series.
To Next Page
