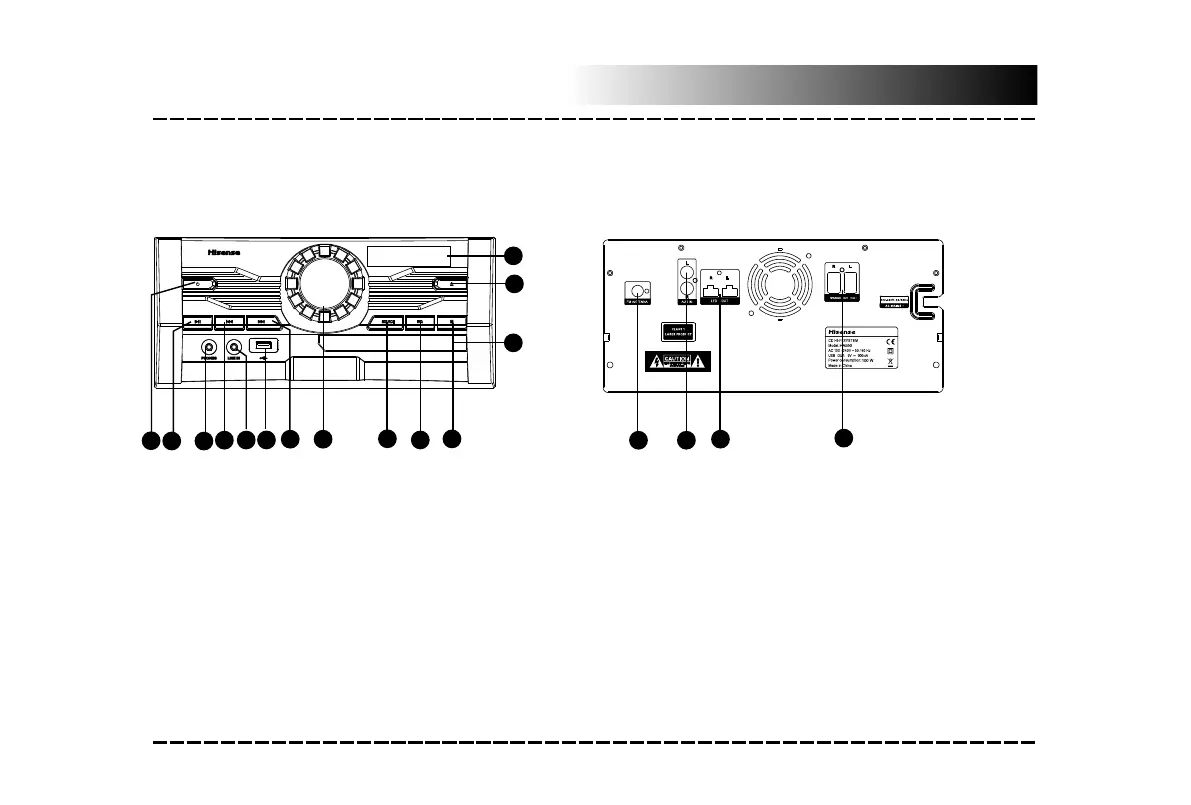

Hisense HA550 - Panel Overview; Front Panel Layout; Rear Panel Connections

REAR PANEL:FRONT PANEL:
Panel
-4-
1 STANDBY/ON
2 PLAY/PAUSE
3 HEADPHONES
4 PREVIOUS/FAST REWIND
5 LINE IN
6 USB SLOT
7 NEXT/FAST FORWARD
8 MASTER VOLUME ADJUSTER
9 SOURCE
5
4
6
7
17
18
10 EQ
11 STOP
12 DISC TRAY
13 OPEN/CLOSE
14 DISPLAY SCREEN
15 FM ANTENNA JACK
16 AUX IN(L/R INPUT)
17 SPEAKER LED OUTPUT
18 SPEAKER OUTPUT
3
2
1
9
8
10
13
11
14
15 16
12
