Electrical installation
Power cord and conduit installation

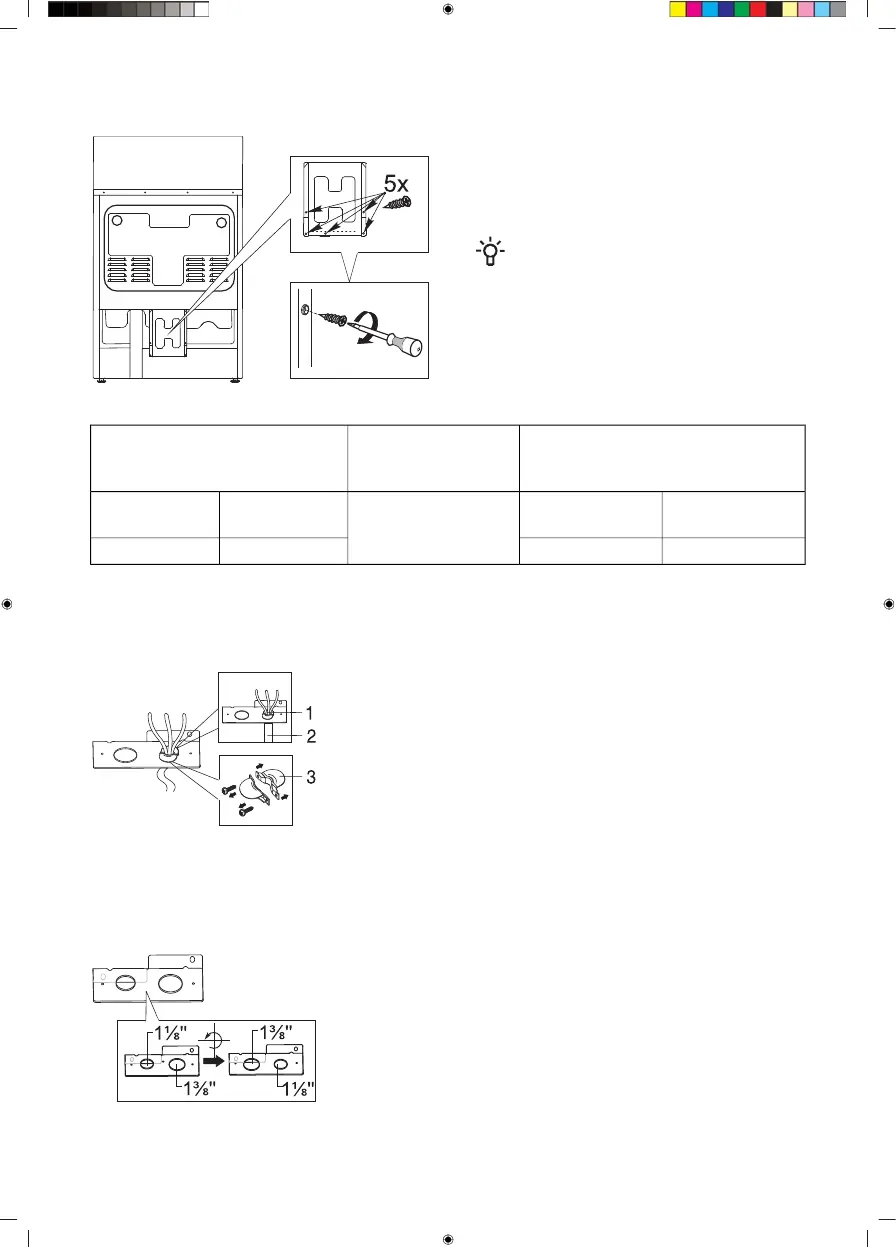

On the back side of the appliance remove the
metal cover by removing screws using a
screwdriver. Do not discard these screws.
INFORMATION!
NOTE! Power cord and conduit with strain
relief are not included in the appliance. It
must be purchased separately.
Diameter (inches) of the range
connection opening
Specified rating of
power-supply-cord
kit, amperes
Range rating, watts
ConduitPower cord40 or 50 A120/208 volts120/240 volts
3-wire3-wire
1 1/8''1 3/8''8900 - 1080011900 - 14200
For power cord installation
Assemble the strain relief in the connection plate hole (1 3/8''). Insert the power cord through the strain
relief and tighten the clamp screws.
1. Conduit connection plate
2. Power cord
3. Strain relief
NOTE! The power cord must always be installed with strain relief mounted into the connection plate.
NOTE! Terminals on the power cord must be closed-loop or open-end spade lugs.
For conduit installation
Remove the conduit connection plate by
removing two screws and rotating it, as shown
below. The conduit hole (1 1/8'') must be used.
Tighten both screws back.
EN 7
