Getting Started
Connection instructions
Not all A/V devices have the ability to connect to a TV, please refer to the user’s manual of your A/V device for compatibility
and connections procedure.
When connecting any external A/V device, do not connect the mains cable to the mains socket until all other connections are
complete.
Best Video
Performance
Connector Type
Separate audio
connection required
HDMI
(480i/480p/576i/576p/720p/1080i/1080p)
No
Component Video
(480i/480p/576i/576p/720p/1080i/1080p)
Composite Video
VIDEO
Yes
Yes
VGA
Yes
PC AUDIO

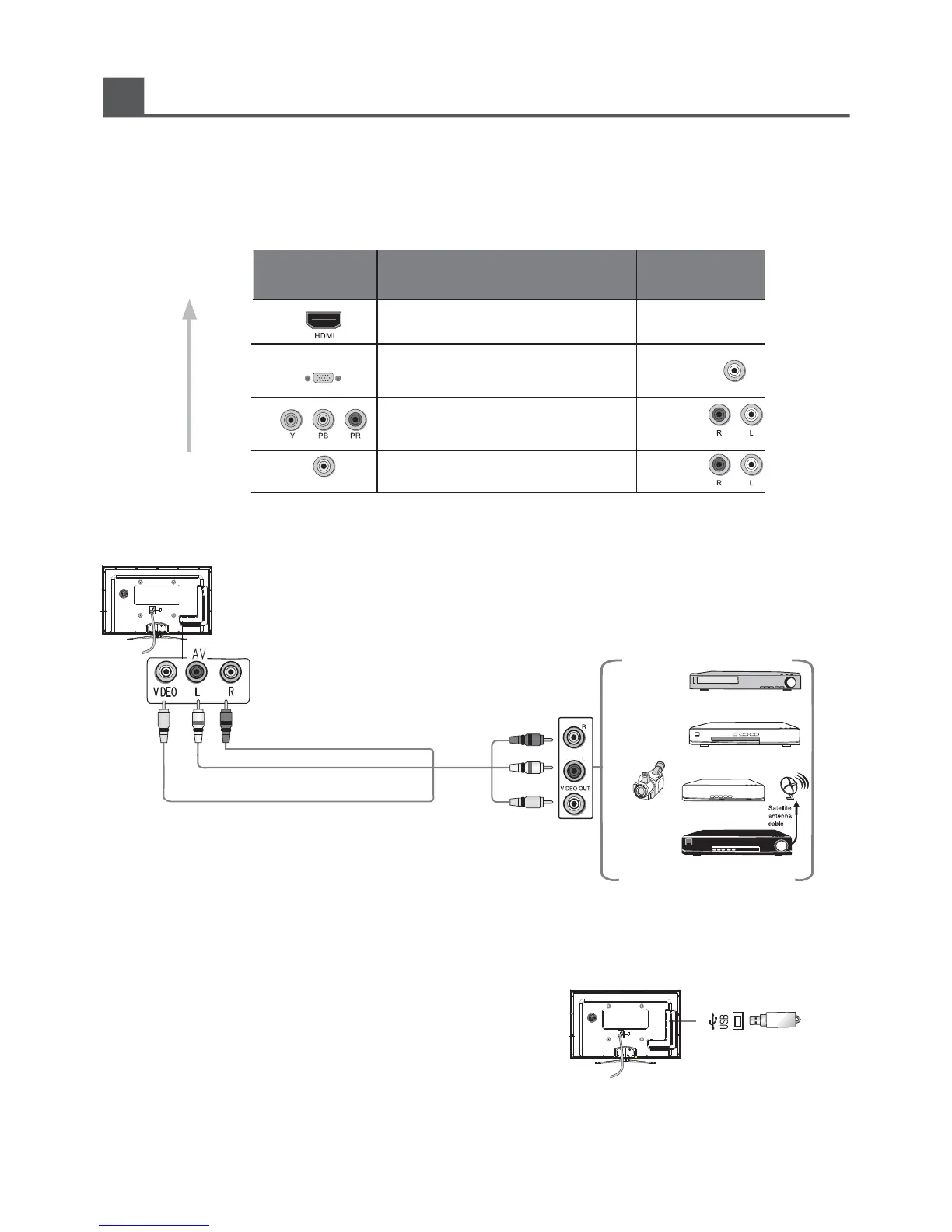

Connecting an A/V Device with Composite Cable
1. Use the audio and video cables to connect the external A/V device’s composite video/audio jacks to the Tv’s jacks.
(Video = yellow, Audio Left = white, and Audio Right = red)
2. Plug the connected devices into the mains socket before switching on the TV.
3. Select the corresponding source from the TV.
Connecting a USB Device
You can either use the USB connection cord or directly insert the
USB into the USB port at the side of the TV.
Satellite Receiver
AV Cable (not included)
Video Camera
VCR
DVD Player / Recorder
Set-top Box
Yellow (VIDEO)
Yellow (VIDEO)
Red (R)
Red (R)
White (L)
White (L)
Equipment with A/V jacks
12
To Next Page
