Hisense HMO173SR - Recirculating Installation - Mounting; Attach Mounting Plate

Step-by-step installation guide
C . RECIRCULATING(Non-vented Ductless)
INSTALLATION OVERVIEW
C1. ATTACH THE MOUNTING PLATE TO THE WALL
C2. USE TOP CABINET TEMPLATE FOR PREPARATION
OF TOP CABINET C3. ADAPTING BLOWER FOR
RECIRCULATION
C4. MOUNT THE MICROWAVE OVEN
C5.CHANGE THE CHARCOAL FILTER
22
2.
Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate.
CAUTION: Be careful to avoid pinching fingers between the back of the mounting plate and the wall.
3.Tighten all bolts. Pull the mounting plate away from the wall to help tighten the bolts.

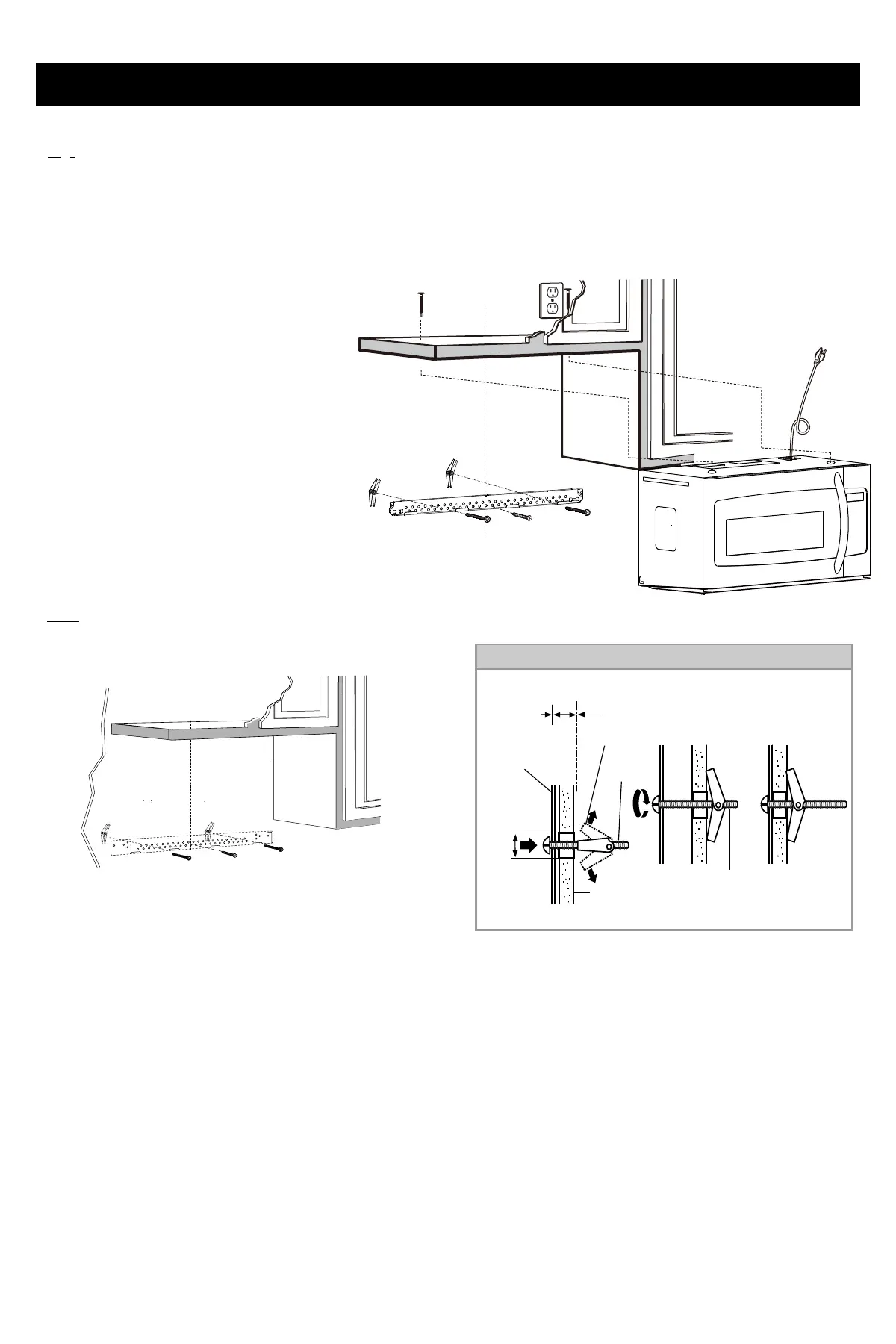

C 1. ATTACH THE MOUNTING PLATE TO THE WALL
1.
Insert the machine screws(3/16"X3") into the mounting plate through holes designed to go into drywall and
attach
the toggle wings to ¾" onto each machine screw(3/16"X3").
Attach the mounting plate to the wall using the wing nuts and machine screws (3/16" x 3").At least one wood
screw must be used to attach the mounting plate to a wall stud.
To use toggle bolts
Mountin
Plate
Wall
Wing nut
machine
screw
Spacing for Toggles More
Than Wall Thickness
Bolt End
5/8"
