－ The LCD panel is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. This TFT-LCD has a 32.0 inch
diagonally measured active display area with WXGA resolution (768 vertical by 1366 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus, presenting a palette of more than 16.7M(true) colors with 8Bit.
－ The panel has been designed to apply the 8Bit LVDS interface.
－ It is intended to support LCD TV, PCTV where high brightness, wide viewing angle, high color saturation,
and high color are important.
LCD PANEL SPEC.
General Description
CN1
(20pin)
LVDS
5pair

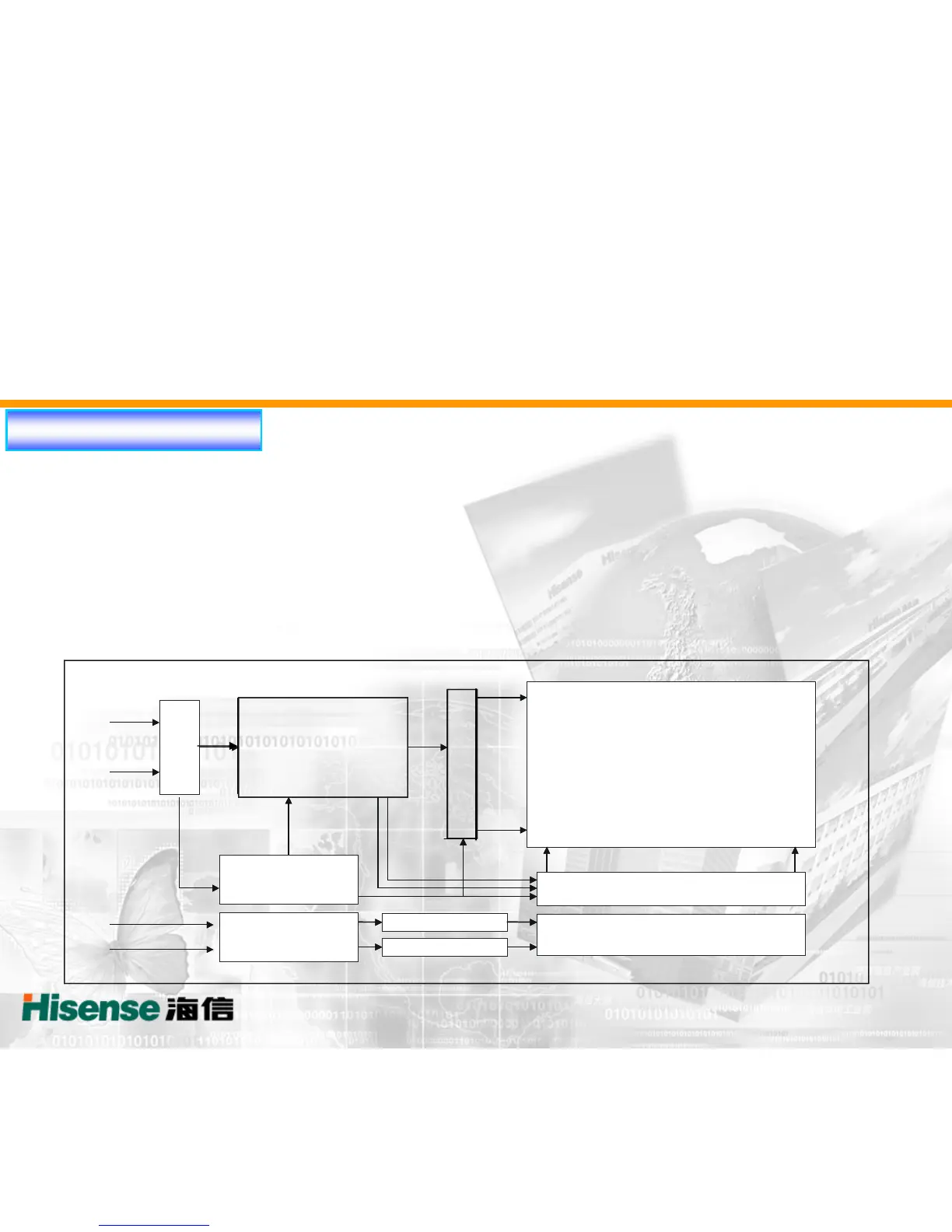

Power Circuit
Block
Source Driver Circuit
TFT - LCD Panel
(1366 ×ٛ RGB ×ٛ 768 pixels)
G1
S1 S1280
G768
Back light Assembly (16CCFL)
2pin x 8CNs (High)
RGB
Timing Controller
(LVDS Rx integrated)
Gate Driver Circuit
8pin x 2CNs (Low)
Inverter
(CN2,CN3)
+24.0V
+24.0V
CN1
(20pin)
LVDS
5pair
Supplying Voltage
Power Circuit
Block
Source Driver Circuit
TFT - LCD Panel
(1366 ×ٛ RGB ×ٛ 768 pixels)
G1
S1 S1280
G768
Back light Assembly (16CCFL)
2pin x 8CNs (High)
RGB
Timing Controller
(LVDS Rx integrated)
Gate Driver Circuit
8pin x 2CNs (Low)
Inverter
(CN2,CN3)
+24.0V
+24.0V

Hisense LCD2005EU Specifications

General

Brand	Hisense
Model	LCD2005EU
Category	Monitor
Language	English
