40
without ice maker
，
Picture 2
）
.

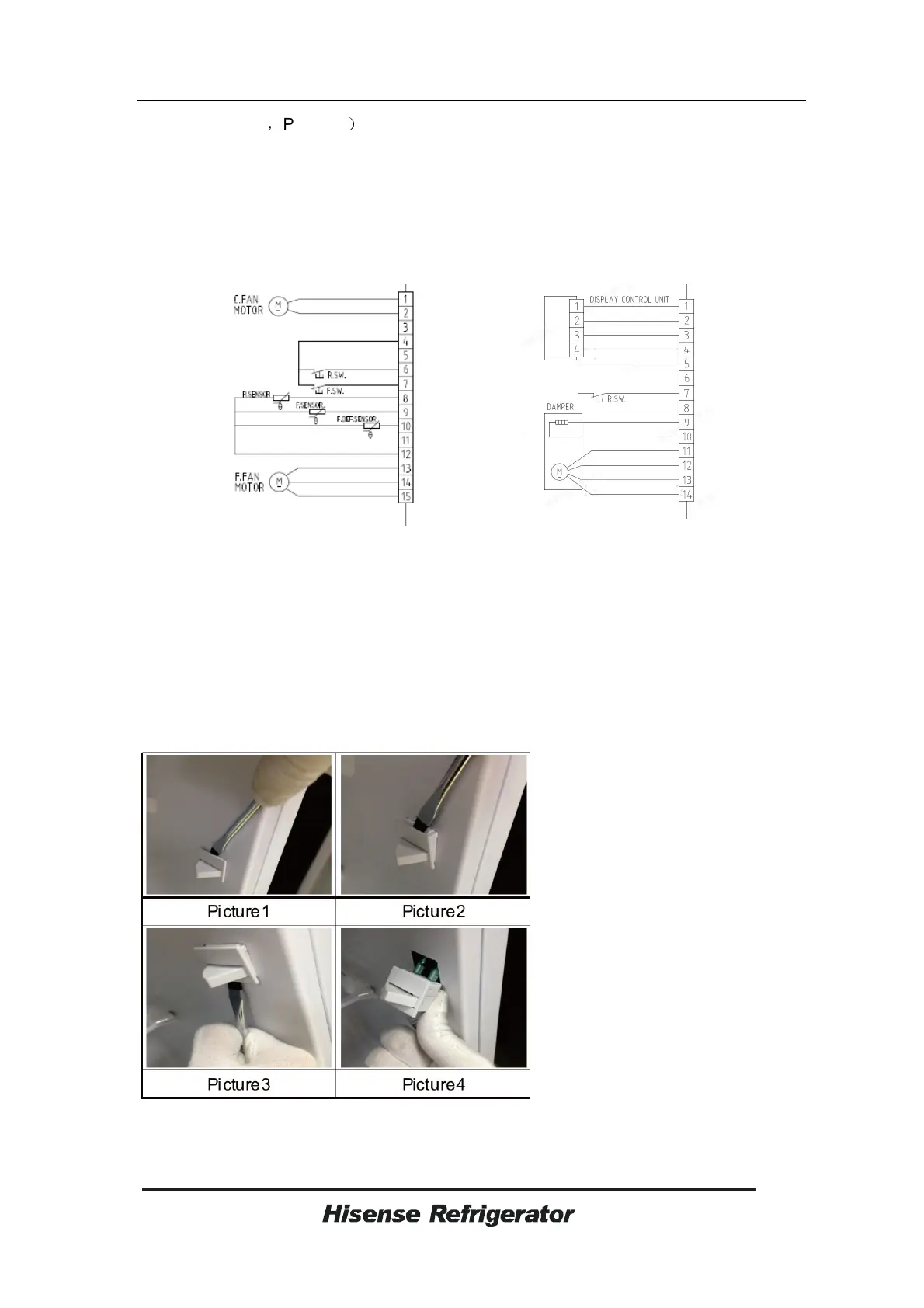

The fridge door switch corresponding pin No.5 and No.7 on 14 pins connector of main
control board.
●
3.Normally,when the door is closed , the two pins of door switch should be open circuit;
When the door is open, the two pins should be short circuit. If the result is abnormal, change
the door switch.
4.If all above is OK, change the main control board.
●
6.9.3.1 Removing the fridge door switch
1.Unplug the appliance.
2.Insert the screwdriver into the gap between door switch and cabinet from upside, as
picture 1.
3.Pry up the door switch by the screwdriver, as picture 2.
4.Pry up the door switch from underneath too, as picture 3.
5.Hold the door switch and pull it out, as picture 4.
