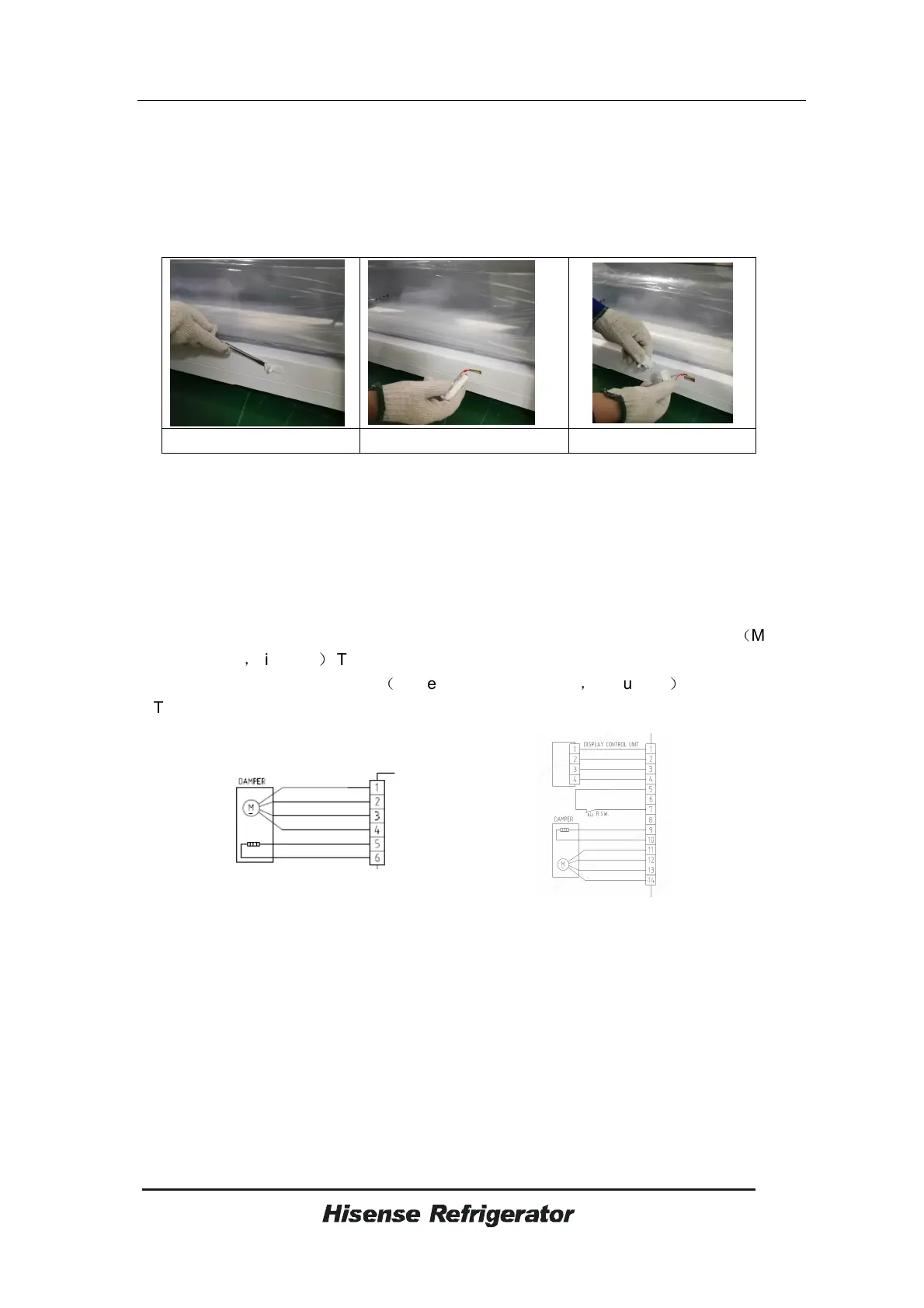

6.9.3.2 Removing the freezer door switch(models with )
1.Unplug the appliance.
2.Insert the screwdriver i
●
nto the gap between door switch and bottom cabinet from top left
corner, as picture 1.
3.Pry up the door switch by the screwdriver, hold the door switch and pull it out as picture 2.
4. Hold the connector and the door switch, unplug them, as picture 3.
●
Picture2 Picture3
6.10 Damper
6.10.1 Basic parameters
Rated voltage:DC12V
Rated current:60mA
6.10.2 Checking method
1.Check the connecting wiring of damper is well or not, repair if it is broken. The damper
corresponding pin No.1~4 on 6 pins connector of mainboard, as the drawing below
（
Models
with ice maker
，
Picture 1
）
. The damper corresponding pin No.11~14 on 14 pins connector of
mainboard, as the drawing below
（
Models without ice maker
，
Picture 2
）
.
2.The damper will turn on and off for one time after power-on, if not, change the mainboard
first and change the damper if problem remains.
Picture1 Picture2
6.10.3 Removing the damper
1.Unplug the appliance
2.Remove the shelf parts and remove the drawers as picture 1.
2.Remove the screws by screwdriver and the cover of the refrigerator wind channel
component, as picture 2 and picture 3.
3.Remove the wind channel component and unplug the terminals on the right side, as picture
4.
4.Remove the sponge and adhesive paper on the foam, as picture 5.
6.Separate the upper foam and lower foam, as picture6.
